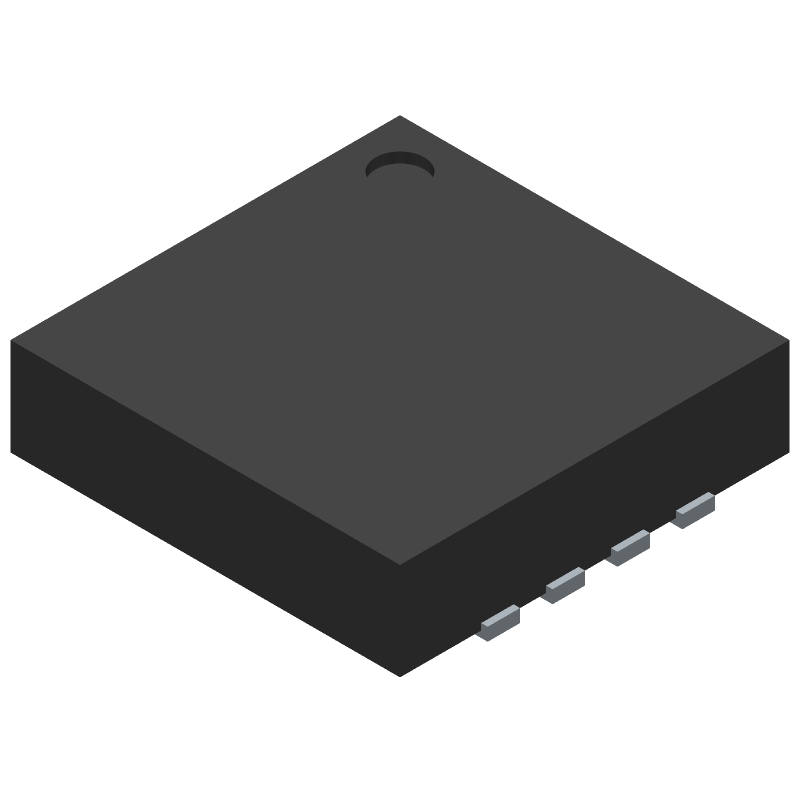

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3580EDD#TRPBF by Analog Devices Inc
Results Overview of LT3580EDD#TRPBF by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT3580EDD#TRPBF Information
LT3580EDD#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3580EDD#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5547
|
Newark | Dc/Dc Conv, Boost, Inv, 2Mhz, 125Deg C, No. Of Outputs:1Outputs, Topology:Boost, Inverting, Sepic, Input Voltage Min:2.5V, Input Voltage Max:32V, Max Output Current:2A, Ic Case/Package:Dfn-Ep, No. Of Pins:8Pins, Efficiency:88% Rohs Compliant: Yes |Analog Devices LT3580EDD#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4466 |
|
$4.3700 | Buy Now |
|
DISTI #
LT3580EDD#TRPBFCT-ND
|
DigiKey | IC REG BOOST CUK ADJ 2A 8DFN Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4462 In Stock |
|
$3.0375 / $7.3800 | Buy Now |
|
DISTI #
584-LT3580EDD#TRPBF
|
Mouser Electronics | Switching Voltage Regulators Boost/Inv DC/DC Conv w/ 2A Switch, Soft- RoHS: Compliant | 10026 |
|
$3.0300 / $5.2500 | Buy Now |
|
DISTI #
V72:2272_06429776
|
Arrow Electronics | Conv DC-DC 2.5V to 32V Inv/Step Up Single-Out 5V to 42V 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2406 Container: Cut Strips | Americas - 2166 |
|
$3.1160 / $5.1990 | Buy Now |
|
|
Analog Devices Inc | Boost/Inv DC/DC Conv w/ 2A Swi Min Qty: 1 Package Multiple: 2500 | 5893 |
|
$2.4300 / $7.3800 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 120 |
|
$2.5235 / $5.8240 | Buy Now |
|
|
Quest Components | SWITCHING REGULATOR, CURRENT-MODE, 2.8A, 2500KHZ SWITCHING FREQ-MAX, CMOS, PDSO8 | 360 |
|
$5.1117 / $9.2940 | Buy Now |
|
|
Quest Components | SWITCHING REGULATOR, CURRENT-MODE, 2.8A, 2500KHZ SWITCHING FREQ-MAX, CMOS, PDSO8 | 96 |
|
$3.6400 / $7.8000 | Buy Now |
|
|
Quest Components | SWITCHING REGULATOR, CURRENT-MODE, 2.8A, 2500KHZ SWITCHING FREQ-MAX, CMOS, PDSO8 | 9 |
|
$3.6750 / $7.3500 | Buy Now |
|
DISTI #
LT3580EDDTRPBF
|
TME | PMIC, DC/DC converter, Uin: 2.5÷32VDC, Uout: 0.8÷45VDC, 2A, DFN8 Min Qty: 1 | 0 |
|
$3.8000 / $5.3100 | RFQ |
Part Details for LT3580EDD#TRPBF
LT3580EDD#TRPBF CAD Models
LT3580EDD#TRPBF Part Data Attributes
|
|
LT3580EDD#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3580EDD#TRPBF
Analog Devices Inc
Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1698 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 32 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 2.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 2500 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT3580EDD#TRPBF
This table gives cross-reference parts and alternative options found for LT3580EDD#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3580EDD#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT3580EDD#PBF | Analog Devices Inc | $3.7602 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#TRPBF vs LT3580EDD#PBF |
| LT3580IDD#PBF | Analog Devices Inc | $3.8856 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#TRPBF vs LT3580IDD#PBF |
| LT3580IDD#TRPBF | Analog Devices Inc | $4.1090 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#TRPBF vs LT3580IDD#TRPBF |
| LT3580EDD#TRPBF | Linear Technology | Check for Price | LT3580 - Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT3580EDD#TRPBF vs LT3580EDD#TRPBF |
| LT3580IDD#TRPBF | Linear Technology | Check for Price | LT3580 - Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT3580EDD#TRPBF vs LT3580IDD#TRPBF |
| LT3580EDD#PBF | Linear Technology | Check for Price | LT3580 - Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT3580EDD#TRPBF vs LT3580EDD#PBF |
LT3580EDD#TRPBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT3580EDD is 15V. Exceeding this voltage may damage the device.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be placed as close to the output pin as possible. Additionally, a 1uF capacitor should be connected between the VIN and GND pins to filter the input voltage.
-
The maximum output current that the LT3580EDD can deliver is 2A. However, the output current should be derated based on the input voltage, output voltage, and ambient temperature.
-
The output voltage of the LT3580EDD can be adjusted by connecting a resistor divider network between the output pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
-
The thermal shutdown temperature of the LT3580EDD is 150°C. If the junction temperature exceeds this value, the device will shut down to prevent damage.
