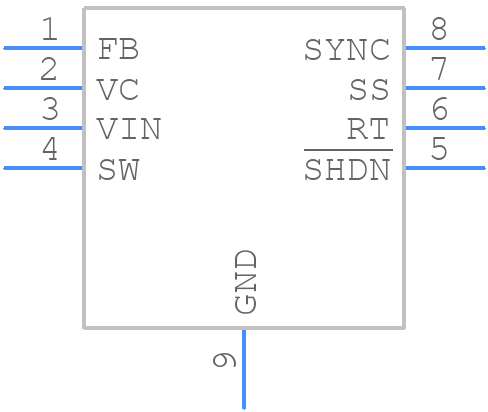

Part Symbol
-
Footprint
-

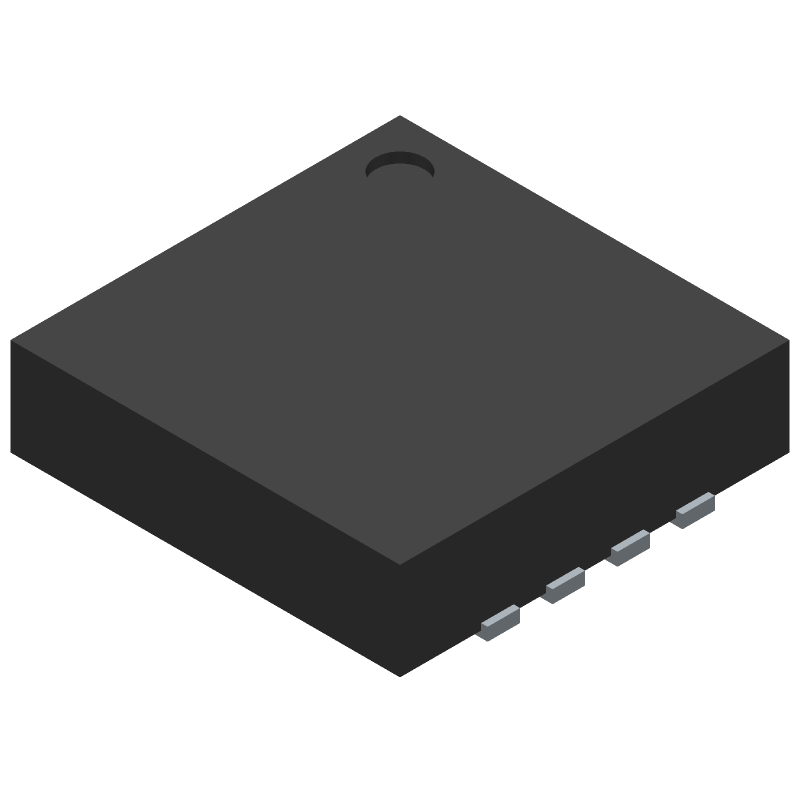

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3580EDD#PBF by Analog Devices Inc
Results Overview of LT3580EDD#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT3580EDD#PBF Information
LT3580EDD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3580EDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8737
|
Newark | Dc/Dc Conv, Boost, Inv, 2Mhz, 125Deg C, No. Of Outputs:1Outputs, Topology:Boost, Inverting, Sepic, Input Voltage Min:2.5V, Input Voltage Max:32V, Max Output Current:2A, Ic Case/Package:Dfn-Ep, No. Of Pins:8Pins, Efficiency:88% Rohs Compliant: Yes |Analog Devices LT3580EDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 70 |
|
$3.0700 / $7.3800 | Buy Now |
|
DISTI #
505-LT3580EDD#PBF-ND
|
DigiKey | IC REG BOOST CUK ADJ 2A 8DFN Min Qty: 1 Lead time: 20 Weeks Container: Tube |
922 In Stock |
|
$3.0375 / $7.3800 | Buy Now |
|
DISTI #
584-LT3580EDD#PBF
|
Mouser Electronics | Switching Voltage Regulators Boost/Inv DC/DC Conv w/ 2A Switch, Soft- RoHS: Compliant | 2840 |
|
$3.3600 / $5.8300 | Buy Now |
|
DISTI #
E54:1762_00082301
|
Arrow Electronics | Conv DC-DC 2.5V to 32V Inv/Step Up Single-Out 5V to 42V 8-Pin DFN EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2512 | Europe - 2340 |
|
$2.9260 / $5.7500 | Buy Now |
|
|
Analog Devices Inc | Boost/Inv DC/DC Conv w/ 2A Swi Package Multiple: 121 | 185 |
|
$2.4300 / $7.3800 | Buy Now |
|
DISTI #
88211093
|
Verical | Conv DC-DC 2.5V to 32V Inv/Step Up Single-Out 5V to 42V 8-Pin DFN EP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2512 | Americas - 2340 |
|
$3.3488 / $5.8183 | Buy Now |
|
DISTI #
LT3580EDDPBF
|
TME | PMIC, DC/DC converter, Uin: 2.5÷32VDC, Uout: 0.8÷45VDC, 2A, DFN8 Min Qty: 1 | 0 |
|
$4.0300 / $6.0500 | RFQ |
|
DISTI #
LT3580EDD#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 121 | 0 |
|
$3.1400 / $3.4500 | Buy Now |
Part Details for LT3580EDD#PBF
LT3580EDD#PBF CAD Models
LT3580EDD#PBF Part Data Attributes
|
|
LT3580EDD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3580EDD#PBF
Analog Devices Inc
Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1698 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 32 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 2.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 2500 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT3580EDD#PBF
This table gives cross-reference parts and alternative options found for LT3580EDD#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3580EDD#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT3580EDD#TRPBF | Analog Devices Inc | $2.7081 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#PBF vs LT3580EDD#TRPBF |
| LT3580IDD#TRPBF | Analog Devices Inc | $4.1090 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#PBF vs LT3580IDD#TRPBF |
| LT3580IDD#PBF | Analog Devices Inc | $4.1595 | Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization | LT3580EDD#PBF vs LT3580IDD#PBF |
| LT3580EDD#PBF | Linear Technology | Check for Price | LT3580 - Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT3580EDD#PBF vs LT3580EDD#PBF |
| LT3580EDD#TRPBF | Linear Technology | Check for Price | LT3580 - Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT3580EDD#PBF vs LT3580EDD#TRPBF |
LT3580EDD#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that the LT3580EDD#PBF can handle is 36V, but it's recommended to keep it below 30V for optimal performance and reliability.
-
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
-
The maximum output current that the LT3580EDD#PBF can provide is 2A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
-
To reduce the noise and ripple in the output voltage, use a low-ESR output capacitor, and add a 10nF to 100nF ceramic capacitor in parallel with the output capacitor. Also, ensure that the input voltage is well-filtered and the layout is optimized for low noise.
-
The thermal shutdown temperature of the LT3580EDD#PBF is 150°C. The device will shut down when the junction temperature exceeds this value, and will restart when the temperature drops below 140°C.
