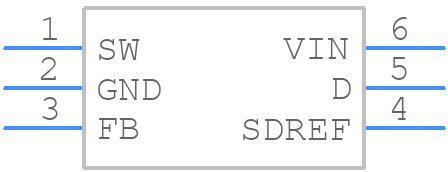

Part Symbol
-
Footprint
-

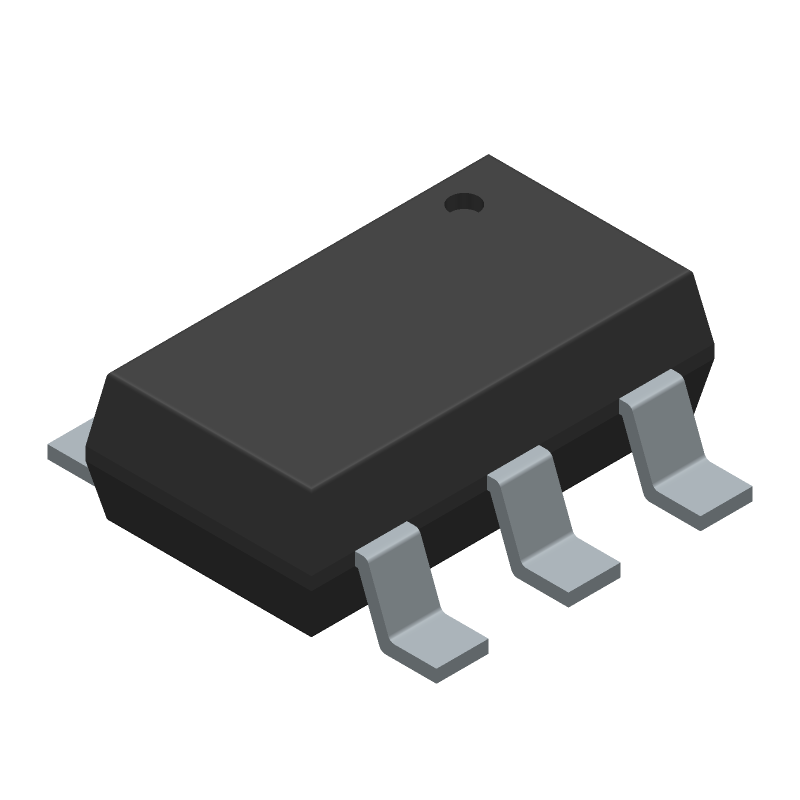

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3462AES6#TRPBF by Analog Devices Inc
Results Overview of LT3462AES6#TRPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT3462AES6#TRPBF Information
LT3462AES6#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3462AES6#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5436
|
Newark | Dc/Dc Conv, Inverting, 2.7Mhz, 85Deg C, No. Of Outputs:1Outputs, Topology:Inverting, Input Voltage Min:2.5V, Input Voltage Max:16V, Max Output Current:420Ma, Ic Case/Package:Tsot-23, No. Of Pins:6Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT3462AES6#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 712 |
|
$3.4400 / $6.5200 | Buy Now |
|
DISTI #
LT3462AES6#TRPBFCT-ND
|
DigiKey | IC REG CUK ADJ 250MA TSOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3671 In Stock |
|
$3.4375 / $8.0900 | Buy Now |
|
DISTI #
584-LT3462AES6#TRPBF
|
Mouser Electronics | Switching Voltage Regulators Inv 1.2MHz/2.7MHz DC/DC Convs w/ Int Sch RoHS: Compliant | 9823 |
|
$3.4300 / $6.5200 | Buy Now |
|
DISTI #
V72:2272_06424764
|
Arrow Electronics | Conv DC-DC 2.5V to 16V Inv Single-Out -38V 0.42A 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 3068 |
|
$3.5260 / $6.4440 | Buy Now |
|
|
Analog Devices Inc | Inv 1.2MHz/2.7MHz DC/DC Convs Min Qty: 2500 Package Multiple: 2500 | 5000 |
|
$2.7500 / $8.0900 | Buy Now |
|
DISTI #
LT3462AES6TRPBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 2500 | 0 |
|
$3.5500 / $3.6900 | Buy Now |
Part Details for LT3462AES6#TRPBF
LT3462AES6#TRPBF CAD Models
LT3462AES6#TRPBF Part Data Attributes
|
|
LT3462AES6#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3462AES6#TRPBF
Analog Devices Inc
Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | TSOT-23, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1636 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 3 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | -38 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 3.6 mA | |
| Surface Mount | YES | |
| Switching Frequency-Max | 3500 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LT3462AES6#TRPBF
This table gives cross-reference parts and alternative options found for LT3462AES6#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3462AES6#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT3462AES6#TR | Linear Technology | Check for Price | LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT3462AES6#TRPBF vs LT3462AES6#TR |
| LT3462AES6#TRPBF | Linear Technology | Check for Price | LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT3462AES6#TRPBF vs LT3462AES6#TRPBF |
| LT3462AES6#PBF | Analog Devices Inc | Check for Price | Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky | LT3462AES6#TRPBF vs LT3462AES6#PBF |
| LT3462AES6 | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 0.42A, 3500kHz Switching Freq-Max, PDSO6 | LT3462AES6#TRPBF vs LT3462AES6 |
| LT3462AES6#TRM | Linear Technology | Check for Price | LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT3462AES6#TRPBF vs LT3462AES6#TRM |
| LT3462AES6#PBF | Linear Technology | Check for Price | LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT3462AES6#TRPBF vs LT3462AES6#PBF |
| LT3462AES6#TR | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3500kHz Switching Freq-Max, PDSO6 | LT3462AES6#TRPBF vs LT3462AES6#TR |
| LT3462AES6#TRM | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3500kHz Switching Freq-Max, PDSO6 | LT3462AES6#TRPBF vs LT3462AES6#TRM |
| LT3462AES6 | Linear Technology | Check for Price | LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT3462AES6#TRPBF vs LT3462AES6 |
LT3462AES6#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT3462AES6#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
-
To ensure stability, make sure to follow the recommended component values and PCB layout, and add a compensation network if necessary. Also, ensure that the input and output capacitors are of high quality and suitable for the application.
-
The LT3462AES6#TRPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
-
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are specified in the datasheet for optimal performance.
-
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or ringing on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
