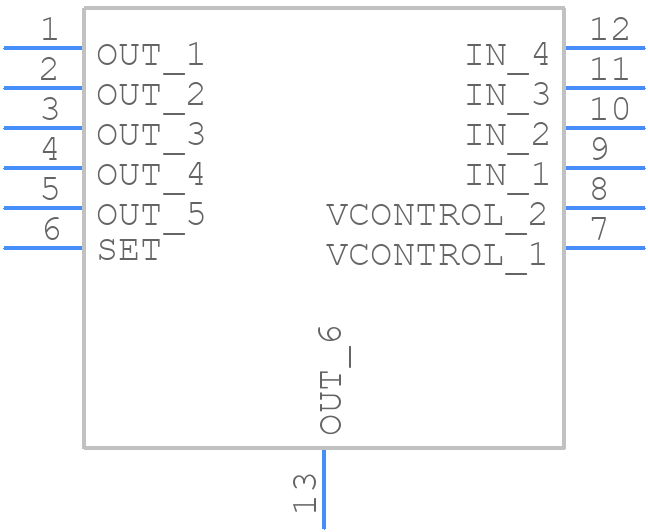

Part Symbol
-
Footprint
-

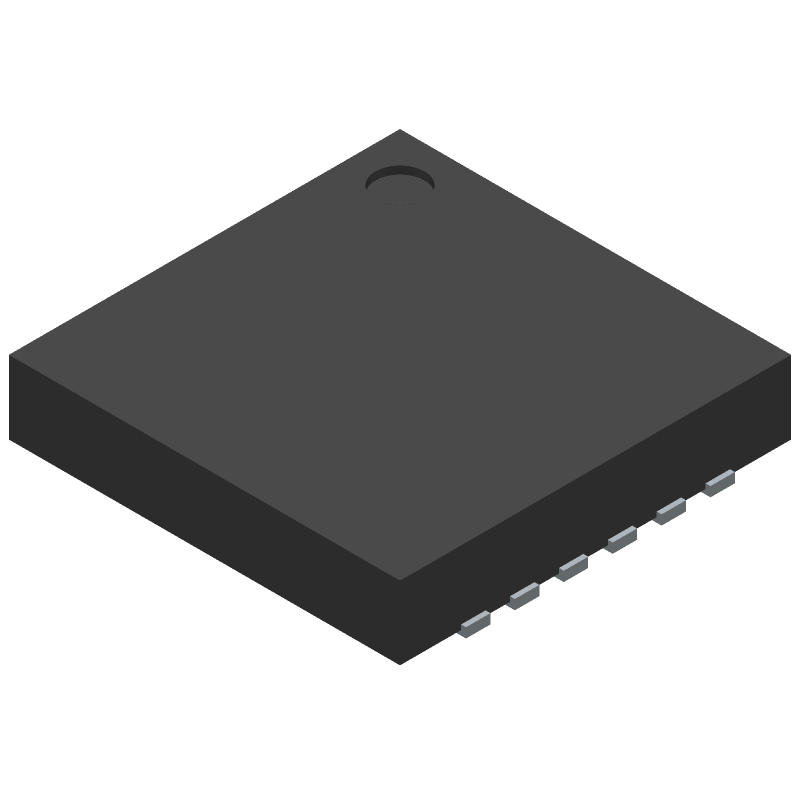

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3083IDF#PBF by Analog Devices Inc
Results Overview of LT3083IDF#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LT3083IDF#PBF Information
LT3083IDF#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3083IDF#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8601
|
Newark | Ldo, Adj, 3A, Dfn-Ep-12, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:1.2V, Input Voltage Max:23V, No. Of Outputs:-, Output Voltage Min:0V, Output Voltage Max:22.76V, Polarity:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT3083IDF#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 143 |
|
$6.9700 / $11.7100 | Buy Now |
|
DISTI #
LT3083IDF#PBF-ND
|
DigiKey | IC REG LINEAR POS ADJ 3A 12-DFN Min Qty: 1 Lead time: 20 Weeks Container: Tube |
910 In Stock |
|
$6.5625 / $13.0900 | Buy Now |
|
DISTI #
584-LT3083IDF#PBF
|
Mouser Electronics | LDO Voltage Regulators Adj 3A 1x Res L Drop Reg RoHS: Compliant | 743 |
|
$6.7300 / $11.7100 | Buy Now |
|
DISTI #
V36:1790_06424871
|
Arrow Electronics | LDO Regulator Pos 0V to 23V 3A 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 91 Package Multiple: 91 Lead time: 10 Weeks Date Code: 2237 | Americas - 3 |
|
$6.1300 | Buy Now |
|
|
Analog Devices Inc | Adj 3A 1x Res L Drop Reg Package Multiple: 91 | 19929 |
|
$5.2500 / $13.0900 | Buy Now |
|
DISTI #
35212537
|
Verical | LDO Regulator Pos 0V to 23V 3A 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 91 Package Multiple: 91 | Americas - 19747 |
|
$6.4935 | Buy Now |
|
DISTI #
66430404
|
Verical | LDO Regulator Pos 0V to 23V 3A 12-Pin DFN EP Tube RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2237 | Americas - 3 |
|
$6.1300 | Buy Now |
|
DISTI #
LT3083IDF#PBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 91 | 0 |
|
$6.7800 / $7.8700 | Buy Now |
Part Details for LT3083IDF#PBF
LT3083IDF#PBF CAD Models
LT3083IDF#PBF Part Data Attributes
|
|
LT3083IDF#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3083IDF#PBF
Analog Devices Inc
Adjustable 3A Single Resistor Low Dropout Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 4 X 4 MM, LEAD FREE, PLASTIC, MO-220WGGD-X, DFN-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1733 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Max | 0.42 V | |
| JESD-30 Code | S-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
LT3083IDF#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT3083 is 40V, but it's recommended to keep it below 36V for reliable operation.
-
To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed close to the output pin to minimize parasitic inductance.
-
The minimum input voltage required for the LT3083 to operate is 2.5V, but it's recommended to keep it above 3V for reliable startup and operation.
-
The LT3083 is rated for operation up to 125°C, but it's essential to ensure that the device is properly heatsinked and that the junction temperature is kept below 150°C to prevent thermal shutdown.
-
The output voltage of the LT3083 can be calculated using the formula: Vout = 0.5 * (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
