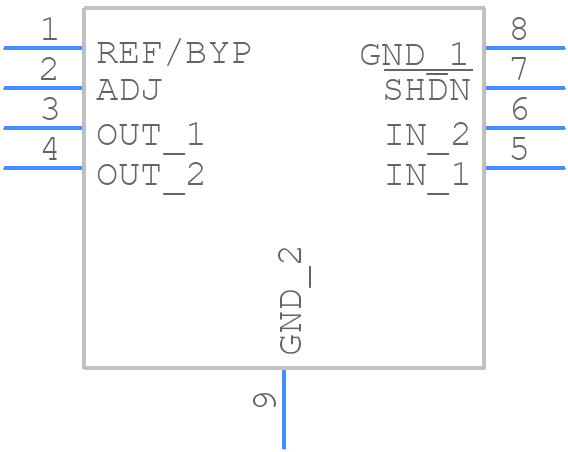

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3062EDCB#TRPBF by Analog Devices Inc
Results Overview of LT3062EDCB#TRPBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT3062EDCB#TRPBF Information
LT3062EDCB#TRPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3062EDCB#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
161-LT3062EDCB#TRPBFCT-ND
|
DigiKey | IC REG LIN POS ADJ 200MA 8-DFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7664 In Stock |
|
$2.4375 / $6.2900 | Buy Now |
|
DISTI #
584-LT3062EDCB#TRPBF
|
Mouser Electronics | LDO Voltage Regulators 45V Vin, uP, L N, 200mA LDO RoHS: Compliant | 4604 |
|
$2.5200 / $4.3200 | Buy Now |
|
DISTI #
V72:2272_06424491
|
Arrow Electronics | LDO Regulator Pos 0.6V to 40V 0.2A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2242 Container: Cut Strips | Americas - 129 |
|
$2.5010 / $3.2980 | Buy Now |
|
|
Analog Devices Inc | 45V Vin, uP, L N, 200mA LDO Min Qty: 2500 Package Multiple: 2500 | 10000 |
|
$2.4375 / $6.2900 | Buy Now |
|
DISTI #
35213360
|
Verical | LDO Regulator Pos 0.6V to 40V 0.2A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$2.4119 | Buy Now |
|
|
Quest Components | ADJUSTABLE POSITIVE LDO REGULATOR, 0.6V MIN, 40V MAX, 0.53V DROPOUT, BIPOLAR, PDSO8 | 97 |
|
$2.4050 / $5.5500 | Buy Now |
|
|
NexGen Digital | 1900 |
|
RFQ | ||
|
DISTI #
LT3062EDCBTRPBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.5200 / $2.6200 | Buy Now |
Part Details for LT3062EDCB#TRPBF
LT3062EDCB#TRPBF CAD Models
LT3062EDCB#TRPBF Part Data Attributes
|
|
LT3062EDCB#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3062EDCB#TRPBF
Analog Devices Inc
45V VIN, Micropower, Low Noise, 200mA LDO
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1718 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.53 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input-Output Voltage Differential-Max | 44.4 V | |
| Input-Output Voltage Differential-Min | 1.5 V | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max (%/V) | 0.0155 | |
| Load Regulation-Max(%) | 0.666% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 40 V | |
| Output Voltage1-Min | 0.6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,18 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.45 mm | |
| Terminal Position | DUAL | |
| Width | 2 mm |
LT3062EDCB#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT3062EDCB#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
-
To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads greater than 10nF.
-
The LT3062EDCB#TRPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
-
While the datasheet recommends a specific inductor value and type, you can use a different inductor as long as it meets the required inductance, DC resistance, and saturation current ratings. However, this may affect the regulator's performance and stability.
-
Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions and shut down the device if necessary. You can also add external protection circuits, such as a voltage clamp or a crowbar circuit, to protect the device.
