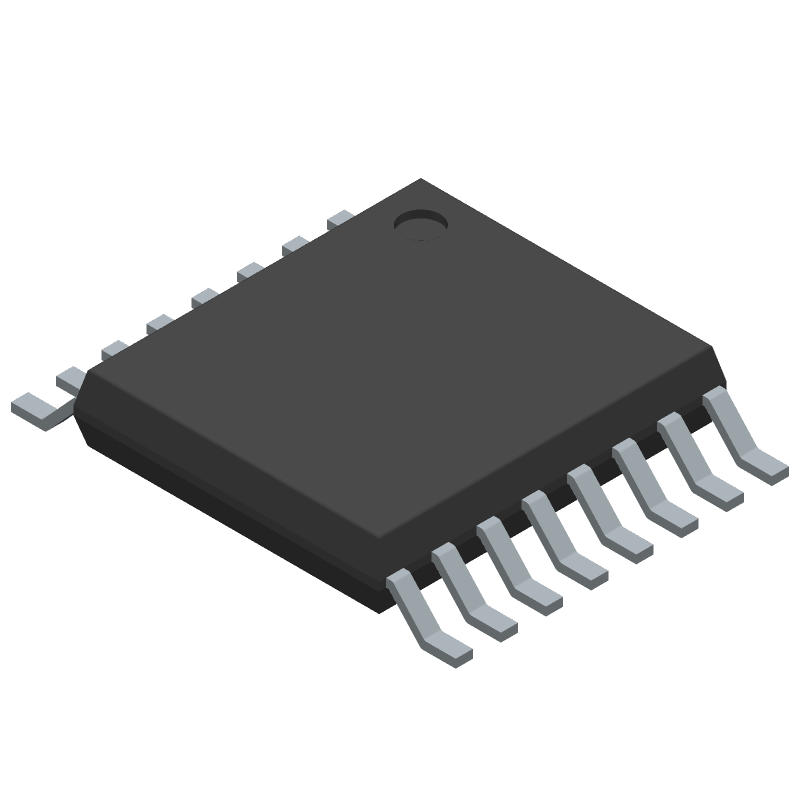

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1963AEFE-2.5#PBF by Analog Devices Inc
Results Overview of LT1963AEFE-2.5#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Entertainment and Gaming
Automotive
LT1963AEFE-2.5#PBF Information
LT1963AEFE-2.5#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1963AEFE-2.5#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM2914
|
Newark | Ldo, Fixed, 2.5V, 1.5A, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices LT1963AEFE-2.5#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$3.8600 / $8.7900 | Buy Now |
|
DISTI #
LT1963AEFE-2.5#PBF-ND
|
DigiKey | IC REG LIN 2.5V 1.5A 16-TSSOP-EP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
365 In Stock |
|
$3.8500 / $8.7900 | Buy Now |
|
DISTI #
584-1963AEFE-2.5PBF
|
Mouser Electronics | LDO Voltage Regulators 1.5A, L N, Fast Tran Resp LDO Regs RoHS: Compliant | 341 |
|
$4.0000 / $8.6800 | Buy Now |
|
|
Analog Devices Inc | 1.5A, L N, Fast Tran Resp LDO Package Multiple: 95 | 1403 |
|
$3.0800 / $8.7900 | Buy Now |
|
DISTI #
35213849
|
Verical | LDO Regulator Pos 2.5V 1.5A 16-Pin TSSOP EP Tube RoHS: Compliant Min Qty: 95 Package Multiple: 95 | Americas - 1330 |
|
$3.8095 | Buy Now |
|
|
Rochester Electronics | LT1963A - Low Noise, Fast Transient Response LDO Regulators RoHS: Compliant Status: Active Min Qty: 1 | 44 |
|
$3.2400 / $4.0500 | Buy Now |
|
DISTI #
LT1963AEFE-2.5P
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 95 | 0 |
|
$3.9800 / $4.6200 | Buy Now |
Part Details for LT1963AEFE-2.5#PBF
LT1963AEFE-2.5#PBF CAD Models
LT1963AEFE-2.5#PBF Part Data Attributes
|
|
LT1963AEFE-2.5#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1963AEFE-2.5#PBF
Analog Devices Inc
LT1963AEFE-2.5#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1663 (BB) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.55 V | |
| Dropout Voltage1-Nom | 0.34 V | |
| Input Voltage Absolute-Max | 20 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.03% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 2.575 V | |
| Output Voltage1-Min | 2.412 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3.5% | |
| Width | 4.4 mm |
Alternate Parts for LT1963AEFE-2.5#PBF
This table gives cross-reference parts and alternative options found for LT1963AEFE-2.5#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1963AEFE-2.5#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1963AEFE-2.5 | Analog Devices Inc | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.55V Dropout, PDSO16 | LT1963AEFE-2.5#PBF vs LT1963AEFE-2.5 |
LT1963AEFE-2.5#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1963AEFE-2.5#PBF should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the package. The layout should also minimize thermal resistance by keeping the thermal path short and direct.
-
To ensure stability in the output voltage, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and is placed close to the output pin of the regulator.
-
The maximum input voltage that can be applied to the LT1963AEFE-2.5#PBF is 15V. Exceeding this voltage may cause damage to the regulator or affect its performance.
-
While it is possible to use a different output capacitor value, it is not recommended as it may affect the stability and performance of the regulator. The recommended output capacitor value is chosen to ensure optimal performance and stability.
-
The power dissipation of the LT1963AEFE-2.5#PBF can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
