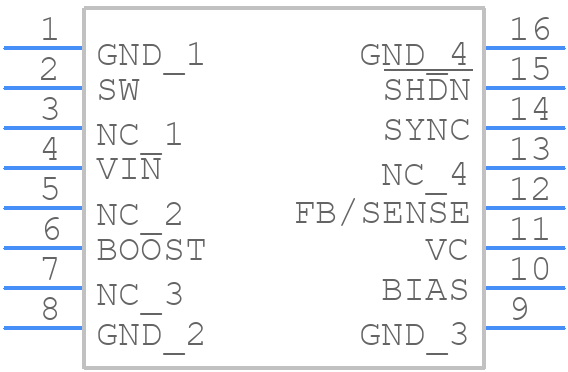

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1956EGN-5#PBF by Analog Devices Inc
Results Overview of LT1956EGN-5#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT1956EGN-5#PBF Information
LT1956EGN-5#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1956EGN-5#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8421
|
Newark | Dc/Dc Conv, Buck, 500Khz, 125Deg C, No. Of Outputs:1Outputs, Topology:Buck (Step Down), Input Voltage Min:5.5V, Input Voltage Max:60V, Max Output Current:1.5A, Ic Case/Package:Nssop, No. Of Pins:16Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT1956EGN-5#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 100 |
|
$5.8400 / $10.9100 | Buy Now |
|
DISTI #
LT1956EGN-5#PBF-ND
|
DigiKey | IC REG BUCK 5V 1.5A 16SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
229 In Stock |
|
$5.4625 / $11.4000 | Buy Now |
|
DISTI #
584-LT1956EGN-5#PBF
|
Mouser Electronics | Switching Voltage Regulators Hi V, 1.5A, 500kHz Buck Sw Regs RoHS: Compliant | 1439 |
|
$5.4600 / $11.4000 | Buy Now |
|
|
Analog Devices Inc | Hi V, 1.5A, 500kHz Buck Sw Reg Package Multiple: 100 | 46 |
|
$4.3700 / $11.4000 | Buy Now |
|
DISTI #
LT1956EGN-5#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 100 | 0 |
|
$5.6400 / $6.1900 | Buy Now |
|
|
Cytech Systems Limited | IC REG BUCK 5V 1.5A 16SSOP | 10000 |
|
RFQ |
Part Details for LT1956EGN-5#PBF
LT1956EGN-5#PBF CAD Models
LT1956EGN-5#PBF Part Data Attributes
|
|
LT1956EGN-5#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1956EGN-5#PBF
Analog Devices Inc
High Voltage, 1.5A, 500kHz Step-Down Switching Regulators
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1641 (GN16) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 5.5 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.8895 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.727 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 570 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.899 mm |
Alternate Parts for LT1956EGN-5#PBF
This table gives cross-reference parts and alternative options found for LT1956EGN-5#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1956EGN-5#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1956IGN-5#TR | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3A, 570kHz Switching Freq-Max, PDSO16 | LT1956EGN-5#PBF vs LT1956IGN-5#TR |
LT1956EGN-5#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1956EGN-5 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR output capacitor to minimize ringing and ensure stability.
-
To ensure the LT1956EGN-5 operates within its safe operating area, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage does not exceed the recommended maximum rating. Also, ensure the output current is within the specified range to prevent overheating.
-
The LT1956EGN-5 has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To minimize thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
-
To troubleshoot oscillations or instability issues with the LT1956EGN-5, check the PCB layout for any issues, ensure the input and output capacitors are properly sized and placed, and verify that the device is operating within its specified voltage and current ranges. Also, check for any noise or ripple on the input voltage and ensure the output is properly filtered.
-
To minimize EMI issues with the LT1956EGN-5, use a shielded enclosure, keep the input and output cables short and away from each other, and use EMI filters or common-mode chokes on the input and output lines. Additionally, ensure the device is properly grounded and the PCB layout is designed to minimize radiation.
