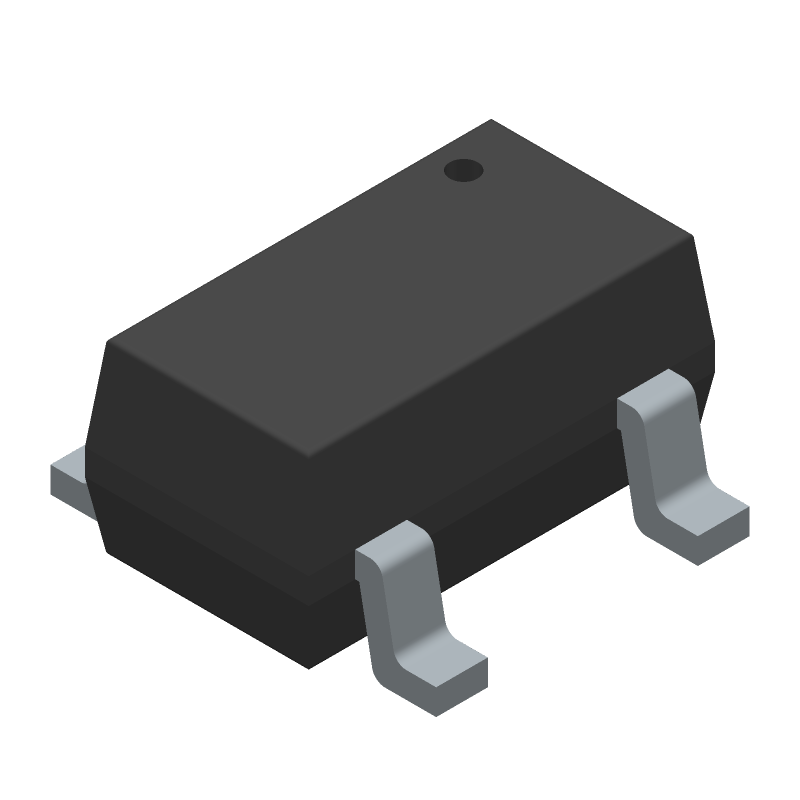

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1615IS5-1#TRMPBF by Analog Devices Inc
Results Overview of LT1615IS5-1#TRMPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LT1615IS5-1#TRMPBF Information
LT1615IS5-1#TRMPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1615IS5-1#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4823
|
Newark | Dc/Dc Conv, Boost, 85Deg C, No. Of Outputs:1Outputs, Topology:Boost (Step Up), Input Voltage Min:1V, Input Voltage Max:15V, Max Output Current:100Ma, Ic Case/Package:Tsot-23, No. Of Pins:5Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT1615IS5-1#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 893 |
|
$3.5200 / $6.6500 | Buy Now |
|
DISTI #
505-LT1615IS5-1#TRMPBFCT-ND
|
DigiKey | IC REG BOOST SEPIC ADJ TSOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1132 In Stock |
|
$3.5125 / $8.2200 | Buy Now |
|
DISTI #
584-1615IS5-1TRMPBF
|
Mouser Electronics | Switching Voltage Regulators uP Boost DC/DC Convs in SOT RoHS: Compliant | 6196 |
|
$3.5100 / $6.6500 | Buy Now |
|
|
Analog Devices Inc | uP Boost DC/DC Convs in SOT Package Multiple: 500 | 227 |
|
$2.8100 / $8.2200 | Buy Now |
|
DISTI #
LT1615IS5-1TRMPBF
|
TME | PMIC, DC/DC converter, Uin: 1÷15VDC, Uout: 34VDC, 100mA, SOT23-5 Min Qty: 1 | 0 |
|
$3.6500 / $5.1000 | RFQ |
|
DISTI #
LT1615IS5-1TRMP
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 500 | 0 |
|
$3.6300 / $3.8800 | Buy Now |
Part Details for LT1615IS5-1#TRMPBF
LT1615IS5-1#TRMPBF CAD Models
LT1615IS5-1#TRMPBF Part Data Attributes
|
|
LT1615IS5-1#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1615IS5-1#TRMPBF
Analog Devices Inc
Micropower Step-Up DC/DC Converters in ThinSOT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, MO-193, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 05-08-1635 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | CONSTANT OFF TIME | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 1 V | |
| Input Voltage-Nom | 1.2 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.125 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LT1615IS5-1#TRMPBF
This table gives cross-reference parts and alternative options found for LT1615IS5-1#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1615IS5-1#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1615IS5-1#TRPBF | Linear Technology | Check for Price | LT1615 - Micropower Step-Up DC/DC Converters in ThinSOT; Package: SOT; Pins: 5; Temperature Range: -40°C to 85°C | LT1615IS5-1#TRMPBF vs LT1615IS5-1#TRPBF |
| LT1615IS5-1#TR | Analog Devices Inc | Check for Price | Switching Regulator, 0.125A, PDSO5 | LT1615IS5-1#TRMPBF vs LT1615IS5-1#TR |
| LT1615ES5-1#TRM | Analog Devices Inc | Check for Price | Switching Regulator, Voltage-mode, 0.125A, PDSO5 | LT1615IS5-1#TRMPBF vs LT1615ES5-1#TRM |
LT1615IS5-1#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1615 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Additionally, a minimum of 10uF input capacitance is recommended.
-
The LT1615 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
-
Yes, the LT1615 is available in a variety of grades, including the 'MP' grade which is qualified for automotive and high-reliability applications. However, it's essential to consult with Analog Devices Inc. for specific requirements and qualifications.
-
To troubleshoot issues with the LT1615, start by verifying the input voltage, output voltage, and output current. Check for proper component values, PCB layout, and thermal design. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
