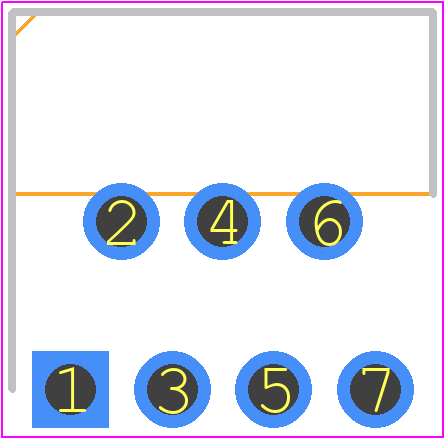

Footprint
-

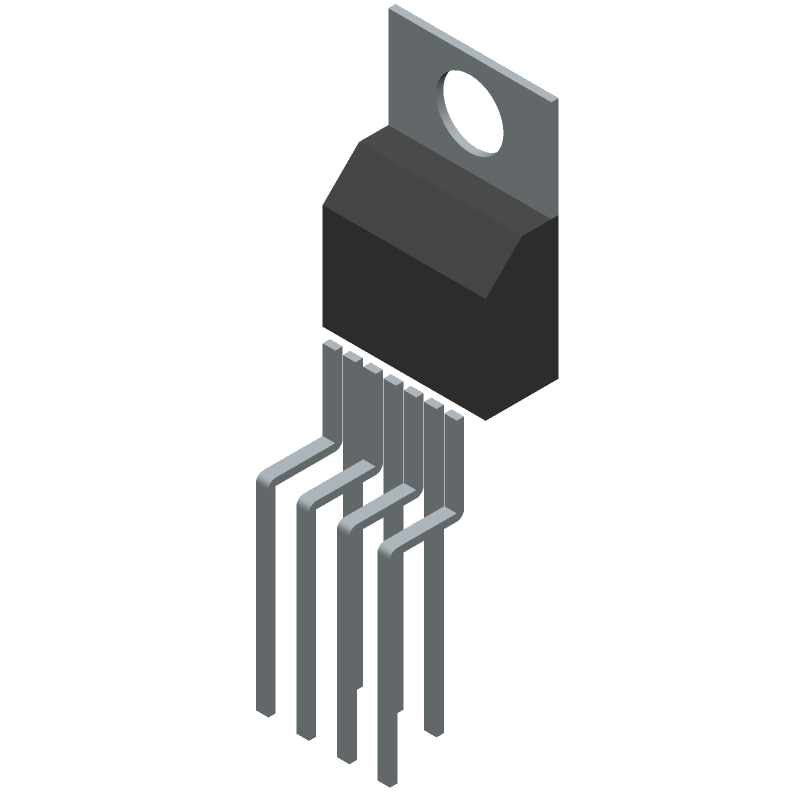

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1513-2IT7#PBF by Analog Devices Inc
Results Overview of LT1513-2IT7#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT1513-2IT7#PBF Information
LT1513-2IT7#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1513-2IT7#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM2853
|
Newark | Battery Charger Ic, Lead Acid, To-220-7 |Analog Devices LT1513-2IT7#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$7.1500 / $13.9600 | Buy Now |
|
DISTI #
LT1513-2IT7#PBF-ND
|
DigiKey | IC BAT CHG MULT-CHEM 1CL TO220-7 Min Qty: 1 Lead time: 10 Weeks Container: Tube |
45 In Stock |
|
$7.1500 / $13.9600 | Buy Now |
|
DISTI #
584-LT1513-2IT7#PBF
|
Mouser Electronics | Battery Management SEPIC Const- or Progmable-C/Const-V Bat RoHS: Compliant | 44 |
|
$7.3500 / $12.6600 | Buy Now |
|
|
Analog Devices Inc | SEPIC Const- or Progmable-C/Co Package Multiple: 50 | 4659 |
|
$5.7200 / $13.9600 | Buy Now |
|
DISTI #
LT1513-2IT7#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 50 | 0 |
|
$7.3800 / $8.5800 | Buy Now |
Part Details for LT1513-2IT7#PBF
LT1513-2IT7#PBF CAD Models
LT1513-2IT7#PBF Part Data Attributes
|
|
LT1513-2IT7#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1513-2IT7#PBF
Analog Devices Inc
SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, TO-220, 7 PIN | |
| Pin Count | 7 | |
| Manufacturer Package Code | 05-08-1422 (STD) | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PZFM-T7 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | ZFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 580 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | ZIG-ZAG |
