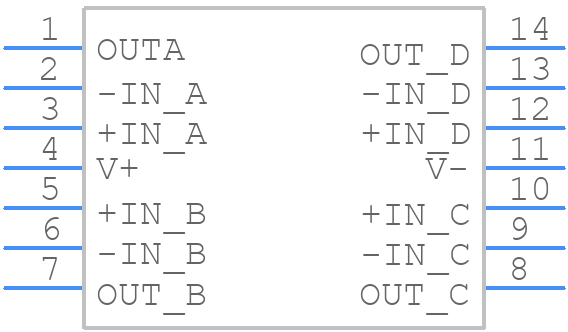

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1499CS#PBF by Analog Devices Inc
Results Overview of LT1499CS#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LT1499CS#PBF Information
LT1499CS#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1499CS#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8105
|
Newark | Op-Amp, 10.5Mhz, 0 To 70Deg C, Soic-14, No. Of Channels:4Channels, Gain Bandwidth Product:10.5Mhz, Supply Voltage Range:2.2V To ± 15V, Ic Case/Package:Soic, No. Of Pins:14Pins, Amplifier Type:General Purpose, Product Range:- Rohs Compliant: Yes |Analog Devices LT1499CS#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 100 |
|
$8.1700 / $11.6700 | Buy Now |
|
DISTI #
LT1499CS#PBF-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1783 In Stock |
|
$8.7126 / $13.7800 | Buy Now |
|
DISTI #
584-LT1499CS#PBF
|
Mouser Electronics | Precision Amplifiers 10MHz, 6V/us, 4x R2R In & Out Prec C-Lo RoHS: Compliant | 290 |
|
$8.7100 / $16.2200 | Buy Now |
|
DISTI #
V36:1790_06417717
|
Arrow Electronics | Op Amp Quad Precision Amplifier R-R I/O ±15V/30V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 55 Package Multiple: 55 Lead time: 10 Weeks Date Code: 2344 | Americas - 1 |
|
$8.3330 | Buy Now |
|
|
Analog Devices Inc | 10MHz, 6V/µs, 4x R2R In & Out Package Multiple: 55 | 357 |
|
$6.9700 / $12.9700 | Buy Now |
|
|
Quest Components | IC,OP-AMP,QUAD,BIPOLAR,SOP,14PIN,PLASTIC | 4 |
|
$10.5332 / $14.0442 | Buy Now |
|
DISTI #
LT1499CS#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 55 | 0 |
|
$9.0000 / $10.4600 | Buy Now |
Part Details for LT1499CS#PBF
LT1499CS#PBF CAD Models
LT1499CS#PBF Part Data Attributes
|
|
LT1499CS#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1499CS#PBF
Analog Devices Inc
10MHz, 6V/µs, Quad Rail-to-Rail Input and Output Precision C-Load Op Amps
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, LEAD FREE, PLASTIC, SOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 05-08-1610 (S14) | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.875 µA | |
| Common-mode Reject Ratio-Nom | 103 dB | |
| Input Offset Voltage-Max | 900 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 mm | |
| Slew Rate-Nom | 5.3 V/us | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 9000 | |
| Width | 3.9 mm |
Alternate Parts for LT1499CS#PBF
This table gives cross-reference parts and alternative options found for LT1499CS#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1499CS#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1499HS#TRPBF | Linear Technology | Check for Price | LT1499 - 10MHz, 6V/µs, Quad Rail-to-Rail Input and Output Precision C-Load Op Amps; Package: SO; Pins: 14; Temperature Range: -40°C to 125°C | LT1499CS#PBF vs LT1499HS#TRPBF |
| LT1499HS#PBF | Linear Technology | Check for Price | LT1499 - 10MHz, 6V/µs, Quad Rail-to-Rail Input and Output Precision C-Load Op Amps; Package: SO; Pins: 14; Temperature Range: -40°C to 125°C | LT1499CS#PBF vs LT1499HS#PBF |
| LT1499IS#TRPBF | Analog Devices Inc | Check for Price | 10MHz, 6V/µs, Quad Rail-to-Rail Input and Output Precision C-Load Op Amps | LT1499CS#PBF vs LT1499IS#TRPBF |
LT1499CS#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1499CS involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure stability in high-gain configurations, it's essential to use a compensation capacitor (Cc) between the output and the inverting input. The value of Cc depends on the gain and the desired bandwidth. A good starting point is to use a 10pF to 22pF capacitor.
-
The maximum power dissipation of the LT1499CS is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
-
Yes, the LT1499CS can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. A buffer configuration also requires careful attention to the output impedance and the stability of the amplifier.
-
To protect the LT1499CS from overvoltage and ESD damage, use a voltage clamp or a transient voltage suppressor (TVS) diode at the input. Additionally, use ESD protection devices such as diodes or resistors in series with the input to prevent ESD damage.
