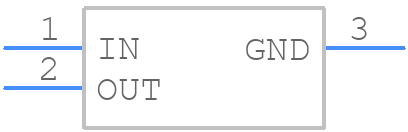

Part Symbol
-
Footprint
-

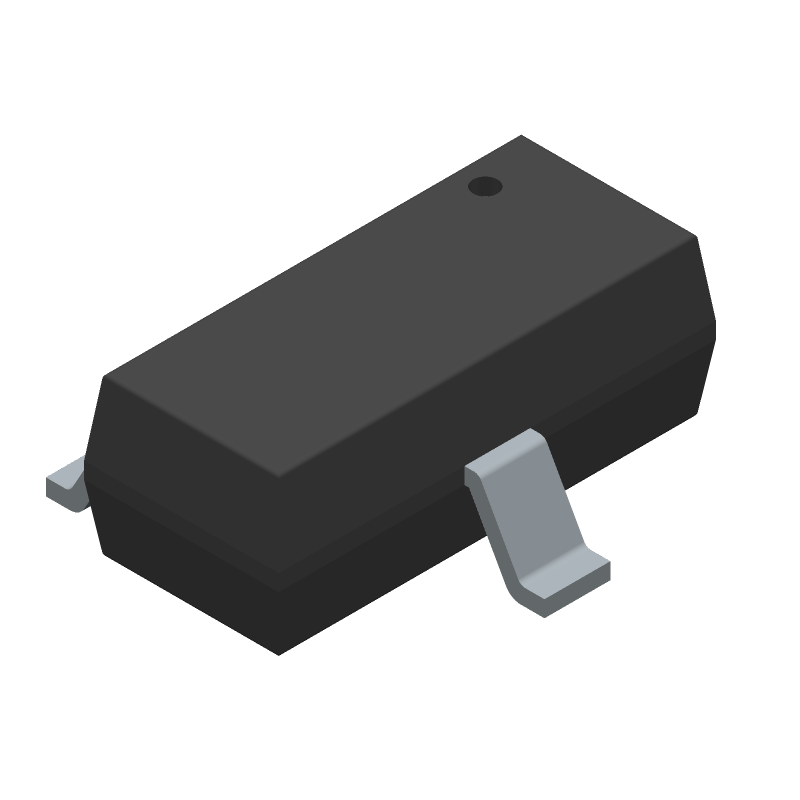

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1460KCS3-2.5#TRMPBF by Analog Devices Inc
Results Overview of LT1460KCS3-2.5#TRMPBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1460KCS3-2.5#TRMPBF Information
LT1460KCS3-2.5#TRMPBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1460KCS3-2.5#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4741
|
Newark | Volt Ref, 2.5V, Sot-23-3, 0 To 70Deg C, Voltage Reference Type:Series, Product Range:Lt1460 Series, Reference Voltage Min:2.4875V, Reference Voltage Max:2.5125V, Initial Accuracy:0.5%, Temperature Coefficient:50Ppm/°C Rohs Compliant: Yes |Analog Devices LT1460KCS3-2.5#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 715 |
|
$2.1100 / $2.9100 | Buy Now |
|
DISTI #
505-LT1460KCS3-2.5#TRMPBFCT-ND
|
DigiKey | IC VREF SERIES 0.5% SOT23-3 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7421 In Stock |
|
$2.1125 / $5.6600 | Buy Now |
|
DISTI #
584-1460KCS3-2.5TMPF
|
Mouser Electronics | Voltage References uP Prec Series Ref Fam RoHS: Compliant | 3836 |
|
$2.1100 / $4.2100 | Buy Now |
|
DISTI #
V72:2272_06415162
|
Arrow Electronics | V-Ref Precision 2.5V 20mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2310 Container: Cut Strips | Americas - 468 |
|
$2.1670 / $2.2590 | Buy Now |
|
|
Analog Devices Inc | uP Prec Series Ref Fam Package Multiple: 500 | 26485 |
|
$1.6900 / $5.6600 | Buy Now |
|
DISTI #
43867965
|
Verical | V-Ref Precision 2.5V 20mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 25000 |
|
$2.0903 | Buy Now |
|
|
Rochester Electronics | LT1460 - Micropower Precision Series Reference Family RoHS: Compliant Status: Active Min Qty: 1 | 487 |
|
$1.7800 / $2.2200 | Buy Now |
|
DISTI #
LT1460KCS32.5TR
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 500 | 0 |
|
$2.1800 / $2.3300 | Buy Now |
Part Details for LT1460KCS3-2.5#TRMPBF
LT1460KCS3-2.5#TRMPBF CAD Models
LT1460KCS3-2.5#TRMPBF Part Data Attributes
|
|
LT1460KCS3-2.5#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1460KCS3-2.5#TRMPBF
Analog Devices Inc
Micropower Precision Series Reference Family
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, TO-236AB, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 05-08-1631 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 2.5125 V | |
| Output Voltage-Min | 2.4875 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Voltage-Max (Vsup) | 20 V | |
| Supply Voltage-Min (Vsup) | 3.4 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 50 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.96 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Width | 1.3 mm |
Alternate Parts for LT1460KCS3-2.5#TRMPBF
This table gives cross-reference parts and alternative options found for LT1460KCS3-2.5#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1460KCS3-2.5#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX6125EUR+T | Maxim Integrated Products | $3.7094 | Three Terminal Voltage Reference, 1 Output, 2.5V, PDSO3, SOT-23, 3 PIN | LT1460KCS3-2.5#TRMPBF vs MAX6125EUR+T |
| LT1460KCS3-2.5#TRMPBF | Linear Technology | Check for Price | LT1460 - Micropower Precision Series Reference Family; Package: SOT; Pins: 3; Temperature Range: 0°C to 70°C | LT1460KCS3-2.5#TRMPBF vs LT1460KCS3-2.5#TRMPBF |
| LT1460KCS3-2.5#TRPBF | Analog Devices Inc | Check for Price | Micropower Precision Series Reference Family | LT1460KCS3-2.5#TRMPBF vs LT1460KCS3-2.5#TRPBF |
| LT1460KCS3-2.5#PBF | Linear Technology | Check for Price | LT1460 - Micropower Precision Series Reference Family; Package: SOT; Pins: 3; Temperature Range: 0°C to 70°C | LT1460KCS3-2.5#TRMPBF vs LT1460KCS3-2.5#PBF |
| MAX6125EUR+T | Analog Devices Inc | Check for Price | SOT23, Low-Cost, Low-Dropout, 3-Terminal Voltage References, 3-SOT_23-N/A, 3 Pins, -40 to 85C | LT1460KCS3-2.5#TRMPBF vs MAX6125EUR+T |
| MAX6125EUR-T | Maxim Integrated Products | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.5V, PDSO3, SOT-23, 3 PIN | LT1460KCS3-2.5#TRMPBF vs MAX6125EUR-T |
| MAX6125EUR+ | Maxim Integrated Products | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.5V, PDSO3, SOT-23, 3 PIN | LT1460KCS3-2.5#TRMPBF vs MAX6125EUR+ |
| MAX6125EUR+ | Analog Devices Inc | Check for Price | SOT23, Low-Cost, Low-Dropout, 3-Terminal Voltage References, 3-SOT_23-N/A, 3 Pins, -40 to 85C | LT1460KCS3-2.5#TRMPBF vs MAX6125EUR+ |
LT1460KCS3-2.5#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1460 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is of high quality and has a low ESR. Additionally, consider adding a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
The maximum power dissipation of the LT1460 is dependent on the package type and the ambient temperature. For the KCS3 package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
-
The LT1460 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and consider using a heat sink or thermal management system in high-temperature environments.
-
To protect the LT1460 from input voltage transients, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is of high quality and can handle the expected voltage transients.
