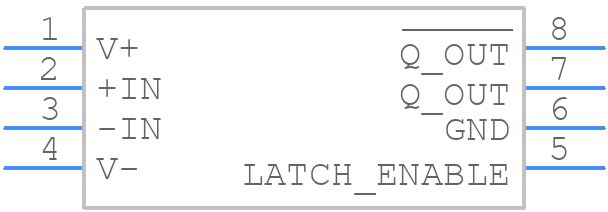

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1394CMS8#TRPBF by Analog Devices Inc
Results Overview of LT1394CMS8#TRPBF by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
LT1394CMS8#TRPBF Information
LT1394CMS8#TRPBF by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1394CMS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LT1394CMS8#TRPBF-ND
|
DigiKey | IC COMPARATOR 1 W/LATCH 8MSOP Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.8000 | Buy Now |
|
DISTI #
584-LT1394CMS8#TRPBF
|
Mouser Electronics | Analog Comparators 7ns, L Pwr, 1x S, Ground-Sensing Comp RoHS: Compliant | 0 |
|
$4.8000 | Order Now |
|
|
Analog Devices Inc | 7ns, L Pwr, 1x S, Ground-Sensi Min Qty: 2500 Package Multiple: 2500 | 5000 |
|
$3.8400 / $4.8000 | Buy Now |
|
DISTI #
LT1394CMS8TRPBF
|
Richardson RFPD | COMPARATOR RoHS: Compliant Min Qty: 2500 | 0 |
|
$4.9600 / $5.1500 | Buy Now |
Part Details for LT1394CMS8#TRPBF
LT1394CMS8#TRPBF CAD Models
LT1394CMS8#TRPBF Part Data Attributes
|
|
LT1394CMS8#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1394CMS8#TRPBF
Analog Devices Inc
7ns, Low Power, Single Supply, Ground-Sensing Comparator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 7 µA | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -7 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 7 ns | |
| Seated Height-Max | 1.17 mm | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT1394CMS8#TRPBF
This table gives cross-reference parts and alternative options found for LT1394CMS8#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1394CMS8#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1394CMS8#PBF | Analog Devices Inc | $5.7303 | 7ns, Low Power, Single Supply, Ground-Sensing Comparator | LT1394CMS8#TRPBF vs LT1394CMS8#PBF |
| LT1394CMS8#TR | Analog Devices Inc | Check for Price | Comparator, 1 Func, 4000uV Offset-Max, 7ns Response Time, PDSO8 | LT1394CMS8#TRPBF vs LT1394CMS8#TR |
| LT1394CMS8#TR | Linear Technology | Check for Price | LT1394 - 7ns, Low Power, Single Supply, Ground-Sensing Comparator; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LT1394CMS8#TRPBF vs LT1394CMS8#TR |
| LT1394CMS8 | Linear Technology | Check for Price | LT1394 - 7ns, Low Power, Single Supply, Ground-Sensing Comparator; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LT1394CMS8#TRPBF vs LT1394CMS8 |
