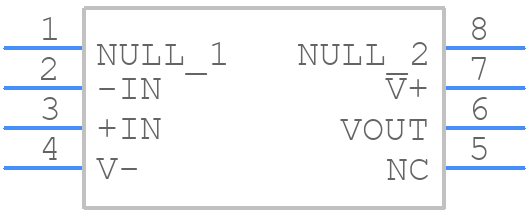

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1360CS8#PBF by Analog Devices Inc
Results Overview of LT1360CS8#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1360CS8#PBF Information
LT1360CS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1360CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7986
|
Newark | Op-Amp, 50Mhz, -40 To 85Deg C, Soic-8, No. Of Channels:1Channels, Gain Bandwidth Product:50Mhz, Supply Voltage Range:± 2.5V To ± 15V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices LT1360CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 3859 |
|
$4.0400 / $9.1100 | Buy Now |
|
DISTI #
505-LT1360CS8#PBF-ND
|
DigiKey | IC VOLTAGE FEEDBACK 1 CIRC 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
4625 In Stock |
|
$4.0375 / $9.1100 | Buy Now |
|
DISTI #
584-LT1360CS8#PBF
|
Mouser Electronics | High Speed Operational Amplifiers 50MHz, 800V/ s Op Amp RoHS: Compliant | 3682 |
|
$4.2200 / $7.5400 | Buy Now |
|
DISTI #
E54:1762_00081339
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±18V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2318 | Europe - 70 |
|
$3.8600 / $7.4420 | Buy Now |
|
|
Analog Devices Inc | 50MHz, 800V/µs Op Amp Package Multiple: 100 | 1625 |
|
$2.3241 / $6.1460 | Buy Now |
|
DISTI #
LT1360CS8PBF
|
TME | IC: operational amplifier, 50MHz, Ch: 1, SO8 Min Qty: 1 | 0 |
|
$4.3200 / $5.8200 | RFQ |
|
DISTI #
LT1360CS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$4.1700 / $4.5800 | Buy Now |
Part Details for LT1360CS8#PBF
LT1360CS8#PBF CAD Models
LT1360CS8#PBF Part Data Attributes
|
|
LT1360CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1360CS8#PBF
Analog Devices Inc
50MHz, 800V/µs Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, LEAD FREE, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 1.5 µA | |
| Common-mode Reject Ratio-Nom | 84 dB | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 350 V/us | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 37000 | |
| Width | 3.9 mm |
Alternate Parts for LT1360CS8#PBF
This table gives cross-reference parts and alternative options found for LT1360CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1360CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1360CS8 | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, PDSO8 | LT1360CS8#PBF vs LT1360CS8 |
LT1360CS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1360CS8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability in the LT1360CS8, it's essential to follow the recommended compensation network and component values, and to ensure that the feedback loop has a sufficient phase margin. Additionally, the device's output impedance should be matched to the load impedance to prevent oscillations.
-
The maximum power dissipation of the LT1360CS8 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). The device's thermal resistance (θJA) should also be considered when calculating the maximum power dissipation.
-
The LT1360CS8 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure that it is properly heat-sinked to prevent overheating. Additionally, the device's specifications may vary at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
-
To protect the LT1360CS8 from overvoltage and ESD, it's recommended to use voltage clamps, such as zener diodes or transient voltage suppressors, on the input and output pins. Additionally, ESD protection devices, such as TVS diodes, can be used to protect the device from electrostatic discharge. A good PCB layout and proper handling procedures can also help prevent ESD damage.
