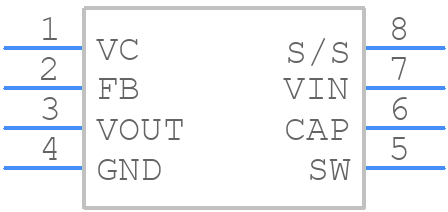

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1306ES8#PBF by Analog Devices Inc
Results Overview of LT1306ES8#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT1306ES8#PBF Information
LT1306ES8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1306ES8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM2799
|
Newark | Switching Regulator, 2.3A, Soic-8 Rohs Compliant: Yes |Analog Devices LT1306ES8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 100 |
|
$5.9400 / $12.1400 | Buy Now |
|
DISTI #
LT1306ES8#PBF-ND
|
DigiKey | IC REG BOOST 5V 2.3A 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
98 In Stock |
|
$5.9375 / $12.1400 | Buy Now |
|
DISTI #
584-LT1306ES8#PBF
|
Mouser Electronics | Switching Voltage Regulators Sync, Fixed Freq Boost DC/DC Conv RoHS: Compliant | 100 |
|
$6.0900 / $10.7000 | Buy Now |
|
DISTI #
V36:1790_06414941
|
Arrow Electronics | Conv DC-DC 1.8V to 10V Synchronous Step Up Single-Out 5.5V 2.3A 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 1412 | Americas - 1 |
|
$5.5460 | Buy Now |
|
|
Analog Devices Inc | Sync, Fixed Freq Boost DC/DC C Package Multiple: 100 | 920 |
|
$4.7500 / $12.1400 | Buy Now |
|
|
Rochester Electronics | LT1306 - Fixed Freq Synch Boost Converter RoHS: Compliant Status: Active Min Qty: 1 | 10 |
|
$4.9800 / $6.2300 | Buy Now |
|
DISTI #
LT1306ES8#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 100 | 0 |
|
$6.1300 / $6.7300 | Buy Now |
Part Details for LT1306ES8#PBF
LT1306ES8#PBF CAD Models
LT1306ES8#PBF Part Data Attributes
|
|
LT1306ES8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1306ES8#PBF
Analog Devices Inc
Synchronous, Fixed Frequency Step-Up DC/DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 7 V | |
| Input Voltage-Min | 1.8 V | |
| Input Voltage-Nom | 2.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 2.3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 415 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for LT1306ES8#PBF
This table gives cross-reference parts and alternative options found for LT1306ES8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1306ES8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1306ES8 | Linear Technology | Check for Price | LT1306 - Synchronous, Fixed Frequency Step-Up DC/DC Converter; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C | LT1306ES8#PBF vs LT1306ES8 |
| LT1306ES8#PBF | Linear Technology | Check for Price | LT1306 - Synchronous, Fixed Frequency Step-Up DC/DC Converter; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C | LT1306ES8#PBF vs LT1306ES8#PBF |
LT1306ES8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1306ES8 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
-
To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the feedback resistors are properly selected. Also, avoid using long feedback traces and minimize the area of the feedback loop.
-
The LT1306ES8 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
-
Yes, the LT1306ES8 is a radiation-hardened device that meets the requirements for high-reliability and aerospace applications. However, additional testing and qualification may be required for specific applications.
-
To troubleshoot issues with the LT1306ES8, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.
