LT1085CT-5 Information
LT1085CT-5 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for LT1085CT-5

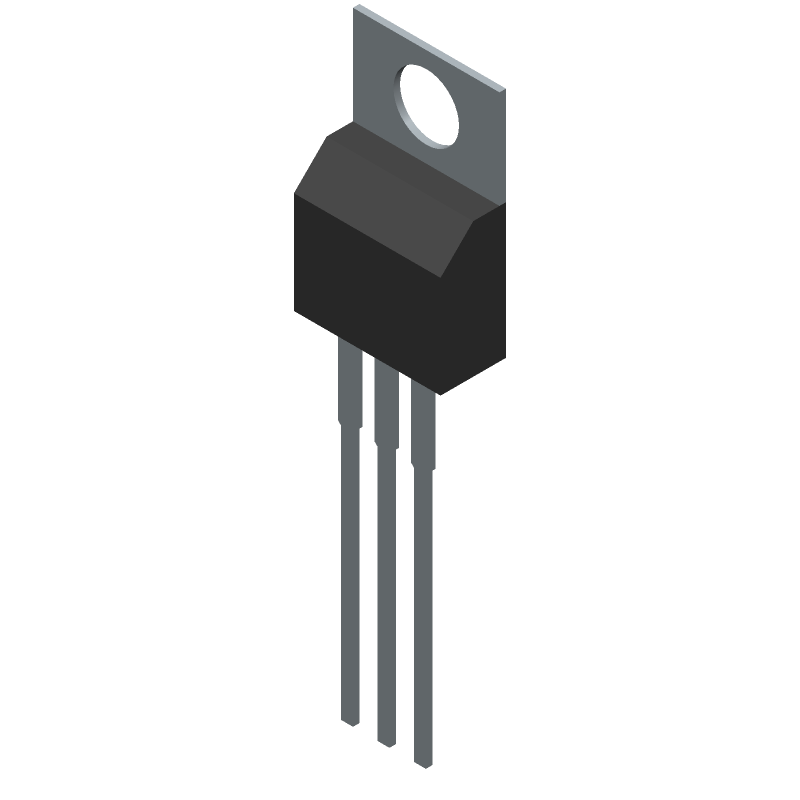

LT1085CT-5 CAD Models
LT1085CT-5 Part Data Attributes
|
|
LT1085CT-5
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1085CT-5
Analog Devices Inc
Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PSFM3
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, TO-220, 3 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Max | 1.5 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 6.5 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 3 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-220 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% |
Alternate Parts for LT1085CT-5
This table gives cross-reference parts and alternative options found for LT1085CT-5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1085CT-5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM1085IT-5.0/NOPB | Texas Instruments | $1.1223 | 3-A, 29-V, linear voltage regulator 3-TO-220 -40 to 125 | LT1085CT-5 vs LM1085IT-5.0/NOPB |
| LM1085ISX-5.0/NOPB | Texas Instruments | $1.1860 | 3-A, 29-V, linear voltage regulator 3-DDPAK/TO-263 -40 to 125 | LT1085CT-5 vs LM1085ISX-5.0/NOPB |
| LT1085CT-5#PBF | Analog Devices Inc | $7.0510 | LT1085CT-5#PBF | LT1085CT-5 vs LT1085CT-5#PBF |
| LT1085IT-5 | Analog Devices Inc | Check for Price | Fixed Positive LDO Regulator, 5V, 1.2V Dropout, PSFM3 | LT1085CT-5 vs LT1085IT-5 |
| LT1085CT-5 | Semtech Corporation | Check for Price | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, PSFM3, TO-220, 3 PIN | LT1085CT-5 vs LT1085CT-5 |
| LT1085CT-5#PBF | Linear Technology | Check for Price | LT1085-Fixed - 3A, 5A, 7.5A Low Dropout Positive Fixed Regulators; Package: TO-220; Pins: 3; Temperature Range: 0°C to 70°C | LT1085CT-5 vs LT1085CT-5#PBF |
| LM1085IS-5.0/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 1.5 V DROPOUT, PSSO3, TO-263, 3 PIN, Fixed Positive Single Output LDO Regulator | LT1085CT-5 vs LM1085IS-5.0/NOPB |
| LM1085ISX-5.0 | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 1.5 V DROPOUT, PSSO3, TO-263, 3 PIN, Fixed Positive Single Output LDO Regulator | LT1085CT-5 vs LM1085ISX-5.0 |
| LM1085ISX-5.0 | Texas Instruments | Check for Price | 5V FIXED POSITIVE LDO REGULATOR, 1.5V DROPOUT, PSSO3, TO-263, 3 PIN | LT1085CT-5 vs LM1085ISX-5.0 |
| LM1085IT-5.0 | Texas Instruments | Check for Price | 3-A, 29-V, linear voltage regulator 3-TO-220 | LT1085CT-5 vs LM1085IT-5.0 |
