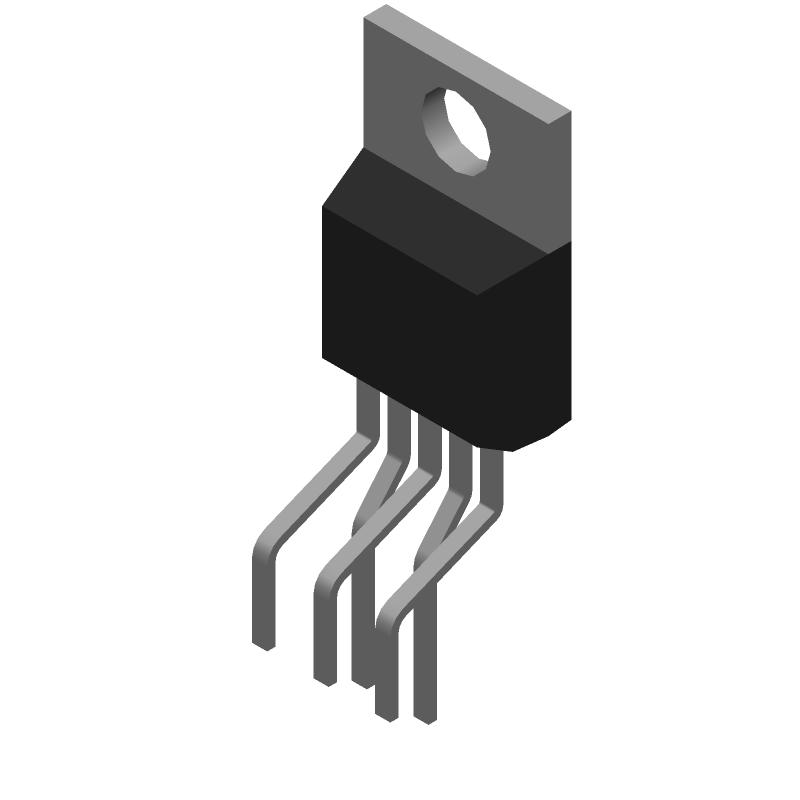

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1070HVIT#PBF by Analog Devices Inc
Results Overview of LT1070HVIT#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LT1070HVIT#PBF Information
LT1070HVIT#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1070HVIT#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM2743
|
Newark | Switching Regulator, 5A, To-220-5 |Analog Devices LT1070HVIT#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$16.2400 / $26.0400 | Buy Now |
|
DISTI #
LT1070HVIT#PBF-ND
|
DigiKey | IC REG BUCK BOOST ADJ 5A TO220-5 Min Qty: 1 Lead time: 10 Weeks Container: Tube |
28 In Stock |
|
$16.1250 / $26.0400 | Buy Now |
|
DISTI #
584-LT1070HVIT#PBF
|
Mouser Electronics | Switching Voltage Regulators 5A & 2.5A Hi Eff Sw Regs RoHS: Compliant | 91 |
|
$16.8400 / $26.3000 | Buy Now |
|
DISTI #
V36:1790_06414800
|
Arrow Electronics | Conv DC-DC 3V to 60V Non-Inv/Inv/Step Up/Step Down Single-Out 1.244V to 60V 11A 100W 5-Pin(5+Tab) TO-220 Tube Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2411 | Americas - 30 |
|
$15.9200 / $17.7600 | Buy Now |
|
|
Analog Devices Inc | 5A & 2.5A Hi Eff Sw Regs Package Multiple: 50 | 156 |
|
$12.9000 / $26.0400 | Buy Now |
|
DISTI #
LT1070HVIT#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 50 | 0 |
|
$16.6600 / $19.3500 | Buy Now |
Part Details for LT1070HVIT#PBF
LT1070HVIT#PBF CAD Models
LT1070HVIT#PBF Part Data Attributes
|
|
LT1070HVIT#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1070HVIT#PBF
Analog Devices Inc
5A and 2.5A High Efficiency Switching Regulators
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, TO-220, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 05-08-1421 (STD) | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PZFM-T5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 11 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | ZFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 47 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | ZIG-ZAG | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for LT1070HVIT#PBF
This table gives cross-reference parts and alternative options found for LT1070HVIT#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1070HVIT#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1070HVCT | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 11A, 47kHz Switching Freq-Max, BIPolar, PZFM5 | LT1070HVIT#PBF vs LT1070HVCT |
| LT1070HVIT | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 11A, 47kHz Switching Freq-Max, PZFM5 | LT1070HVIT#PBF vs LT1070HVIT |
| LT1070HVIT | Linear Technology | Check for Price | LT1070 - 5A and 2.5A High Efficiency Switching Regulators; Package: TO-220; Pins: 5; Temperature Range: -40°C to 85°C | LT1070HVIT#PBF vs LT1070HVIT |
| LT1070HVCT | Linear Technology | Check for Price | LT1070 - 5A and 2.5A High Efficiency Switching Regulators; Package: TO-220; Pins: 5; Temperature Range: 0°C to 70°C | LT1070HVIT#PBF vs LT1070HVCT |
LT1070HVIT#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT1070HVIT#PBF is 60V, but it's recommended to operate within the specified input voltage range of 12V to 40V for optimal performance.
-
To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a minimum output capacitance of 10uF with an ESR of 1 ohm or less.
-
The maximum output current that the LT1070HVIT#PBF can deliver is 5A, but it's recommended to operate within the specified output current range of 0.5A to 3A for optimal performance and reliability.
-
Use external overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits to protect the LT1070HVIT#PBF from voltage transients and faults. The datasheet provides guidelines for implementing these protection circuits.
-
The thermal derating curve for the LT1070HVIT#PBF is provided in the datasheet, which shows the maximum power dissipation vs. ambient temperature. Make sure to follow this curve to ensure reliable operation.
