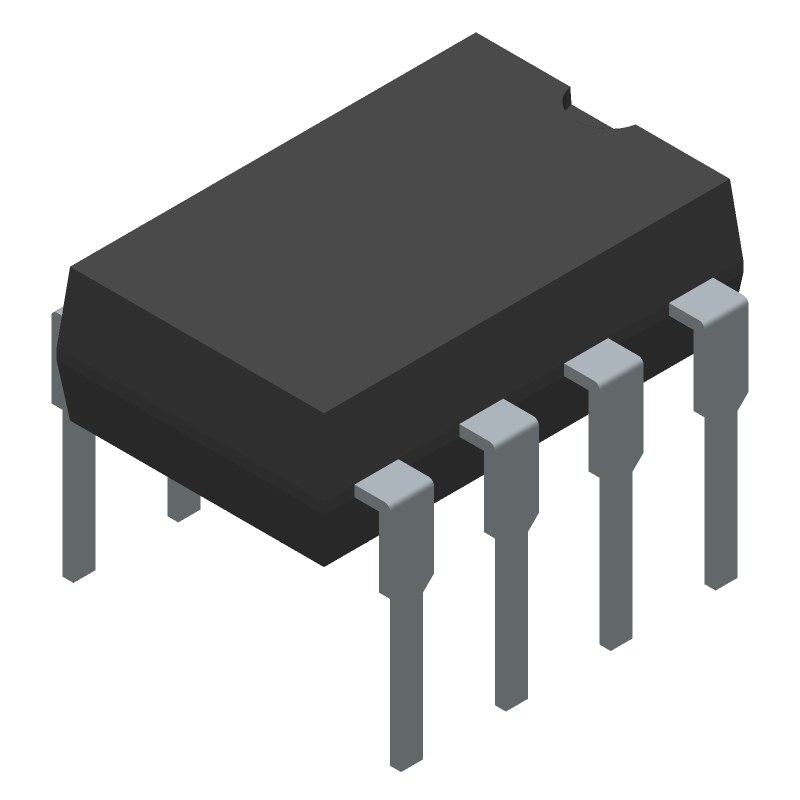

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1019CN8-5#PBF by Analog Devices Inc
Results Overview of LT1019CN8-5#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
LT1019CN8-5#PBF Information
LT1019CN8-5#PBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1019CN8-5#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7678
|
Newark | Volt Ref, Dip-8, 5V, 0 To 70Deg C, Voltage Reference Type:Series, Shunt, Product Range:Lt1019 Series, Reference Voltage Min:4.99V, Reference Voltage Max:5.01V, Initial Accuracy:0.2%, Temperature Coefficient:20Ppm/°C, Qualification:- Rohs Compliant: Yes |Analog Devices LT1019CN8-5#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 85 |
|
$6.1900 / $12.5200 | Buy Now |
|
DISTI #
LT1019CN8-5#PBF-ND
|
DigiKey | IC VREF PRECISION 5V 8DIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
139 In Stock |
|
$6.1875 / $12.5200 | Buy Now |
|
DISTI #
584-LT1019CN8-5#PBF
|
Mouser Electronics | Voltage References Prec Ref RoHS: Compliant | 43 |
|
$6.3600 / $11.1000 | Buy Now |
|
|
Analog Devices Inc | Prec Ref Package Multiple: 50 | 928 |
|
$4.9500 / $12.5200 | Buy Now |
|
DISTI #
LT1019CN8-5#PBF
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 100 | 0 |
|
$6.4000 / $7.0200 | Buy Now |
Part Details for LT1019CN8-5#PBF
LT1019CN8-5#PBF CAD Models
LT1019CN8-5#PBF Part Data Attributes
|
|
LT1019CN8-5#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1019CN8-5#PBF
Analog Devices Inc
Precision Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.300 INCH, PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1510 (N8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.35 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.937 mm | |
| Supply Current-Max (Isup) | 1.5 mA | |
| Supply Voltage-Max (Vsup) | 40 V | |
| Supply Voltage-Min (Vsup) | 6.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 20 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Width | 7.62 mm |
Alternate Parts for LT1019CN8-5#PBF
This table gives cross-reference parts and alternative options found for LT1019CN8-5#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1019CN8-5#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1019IN8-5#PBF | Analog Devices Inc | $7.8535 | Precision Reference | LT1019CN8-5#PBF vs LT1019IN8-5#PBF |
| LT1019CN8-5 | Linear Technology | Check for Price | LT1019 - Precision Reference; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C | LT1019CN8-5#PBF vs LT1019CN8-5 |
LT1019CN8-5#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1019CN8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
-
The maximum power dissipation of the LT1019CN8-5 is dependent on the package type and the ambient temperature. For the 8-pin PDIP package, the maximum power dissipation is 1.4W at 25°C. However, it is recommended to derate the power dissipation based on the ambient temperature to ensure reliable operation.
-
The LT1019CN8-5 is not recommended for high-current applications. It is designed for low-power, low-dropout voltage regulation and can only supply up to 150mA of output current. For high-current applications, consider using a more suitable voltage regulator device.
-
To protect the LT1019CN8-5 from input voltage transients and spikes, consider adding a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, ensure that the input voltage is within the recommended range and use a suitable input capacitor to filter out noise and ripple.
