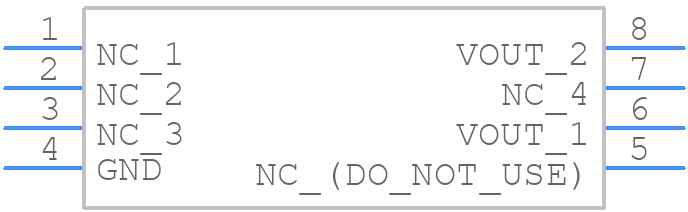

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1004IS8-1.2#PBF by Analog Devices Inc
Results Overview of LT1004IS8-1.2#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
LT1004IS8-1.2#PBF Information
LT1004IS8-1.2#PBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1004IS8-1.2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4031168
|
Farnell | VOLT REF, 1.2V, SOIC-8, -40 TO 85DEG C RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 160 |
|
$4.7070 / $8.6250 | Buy Now |
|
DISTI #
LT1004IS8-1.2#PBF-ND
|
DigiKey | IC VREF SHUNT 0.3% 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1416 In Stock |
|
$4.2250 / $9.4200 | Buy Now |
|
DISTI #
584-LT1004IS8-1.2PBF
|
Mouser Electronics | Voltage References uP V Ref RoHS: Compliant | 756 |
|
$4.4000 / $7.8600 | Buy Now |
|
|
Analog Devices Inc | uP V Ref Package Multiple: 100 | 484 |
|
$3.3800 / $9.4200 | Buy Now |
|
DISTI #
35209361
|
Verical | V-Ref Precision 1.235V 20mA 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 | Americas - 200 |
|
$4.2516 | Buy Now |
|
DISTI #
LT1004IS8-1.2PB
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 100 | 0 |
|
$4.3700 / $4.7800 | Buy Now |
Part Details for LT1004IS8-1.2#PBF
LT1004IS8-1.2#PBF CAD Models
LT1004IS8-1.2#PBF Part Data Attributes
|
|
LT1004IS8-1.2#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1004IS8-1.2#PBF
Analog Devices Inc
Micropower Voltage Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 1.245 V | |
| Output Voltage-Min | 1.22 V | |
| Output Voltage-Nom | 1.23 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.81% | |
| Width | 3.9 mm |
Alternate Parts for LT1004IS8-1.2#PBF
This table gives cross-reference parts and alternative options found for LT1004IS8-1.2#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1004IS8-1.2#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1004IS8-1.2 | Analog Devices Inc | Check for Price | Two Terminal Voltage Reference, 1 Output, 1.23V, BIPolar, PDSO8 | LT1004IS8-1.2#PBF vs LT1004IS8-1.2 |
| LT1004IS8-1.2#TRPBF | Linear Technology | Check for Price | LT1004 - Micropower Voltage Reference; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C | LT1004IS8-1.2#PBF vs LT1004IS8-1.2#TRPBF |
| LT1004IS8-1.2#TRPBF | Analog Devices Inc | Check for Price | Micropower Voltage Reference | LT1004IS8-1.2#PBF vs LT1004IS8-1.2#TRPBF |
LT1004IS8-1.2#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1004IS8-1.2 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, ensure that the output capacitor is within the recommended range (10uF to 100uF), the input capacitor is at least 1uF, and the ESR of the output capacitor is within the recommended range (0.05Ω to 5Ω). Also, avoid using ceramic capacitors with high ESL.
-
The maximum ambient temperature range for the LT1004IS8-1.2 is -40°C to 125°C. However, the device can operate up to 150°C with derating.
-
Yes, the LT1004IS8-1.2 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to MIL-STD-883. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
-
To troubleshoot issues with the LT1004IS8-1.2, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are within the recommended range and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output.
