Inductors / Fixed Inductors / LSQEA201212T220K
Datasheets
LSQEA201212T220K by: TAIYO YUDEN

General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 0805, CHIP

Part Details for LSQEA201212T220K by TAIYO YUDEN

Results Overview of LSQEA201212T220K by TAIYO YUDEN

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Education and Research Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

LSQEA201212T220K Information

LSQEA201212T220K by TAIYO YUDEN is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for LSQEA201212T220K

Part # Distributor Description Stock Price Buy
DISTI # 587-LSQEA201212T220KCT-ND
DigiKey FIXED IND 22UH 100MA 1 OHM SMD Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1410
In Stock
  • 1 $0.1100
  • 10 $0.0930
  • 25 $0.0860
  • 50 $0.0758
  • 100 $0.0663
  • 250 $0.0631
  • 500 $0.0593
  • 1,000 $0.0454
  • 3,000 $0.0443
  • 6,000 $0.0417
  • 9,000 $0.0403
  • 15,000 $0.0386
  • 21,000 $0.0375
  • 30,000 $0.0364
  • 75,000 $0.0337
  • 150,000 $0.0318
  • 300,000 $0.0313
$0.0313 / $0.1100 Buy Now
DISTI # LSQEA201212T220K
Avnet Americas Inductor Molded Wirewound 22uH 10% 2.52MHz Ferrite 100mA 0805 Emboss T/R - Tape and Reel (Alt: LSQEA201212T220K) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.0355
  • 6,000 $0.0345
  • 12,000 $0.0333
  • 18,000 $0.0318
  • 24,000 $0.0294
$0.0294 / $0.0355 Buy Now
DISTI # 963-LSQEA201212T220K
Mouser Electronics Power Inductors - SMD 22uH 0805 10% LOW RDC RoHS: Compliant 0
  • 1 $0.1000
  • 10 $0.0820
  • 25 $0.0720
  • 100 $0.0600
  • 250 $0.0550
  • 1,000 $0.0450
  • 3,000 $0.0410
  • 6,000 $0.0340
  • 9,000 $0.0330
$0.0330 / $0.1000 Order Now
DISTI # V36:1790_17731825
Arrow Electronics Inductor General Purpose Wirewound 22uH 10% 2.52MHz Ferrite 0.1A 1.3Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks Date Code: 2252 Americas - 12000
  • 3,000 $0.0442
  • 6,000 $0.0416
  • 9,000 $0.0402
  • 15,000 $0.0385
  • 21,000 $0.0374
  • 30,000 $0.0363
  • 75,000 $0.0355
$0.0355 / $0.0442 Buy Now
DISTI # V72:2272_18336392
Arrow Electronics Inductor General Purpose Wirewound 22uH 10% 2.52MHz Ferrite 0.1A 1.3Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks Container: Cut Strips Americas - 8
  • 1 $0.0295
$0.0295 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 3,000 $0.0403
  • 6,000 $0.0379
  • 12,000 $0.0362
  • 27,000 $0.0357
  • 51,000 $0.0343
  • 102,000 $0.0329
  • 150,000 $0.0324
  • 252,000 $0.0319
$0.0319 / $0.0403 Buy Now
DISTI # 88878002
Verical Inductor General Purpose Wirewound 22uH 10% 2.52MHz Ferrite 0.1A 1.3Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Americas - 12000
  • 3,000 $0.0442
$0.0442 Buy Now
DISTI # 67177127
Verical Inductor General Purpose Wirewound 22uH 10% 2.52MHz Ferrite 0.1A 1.3Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 1825 Package Multiple: 1 Americas - 2890
  • 1,786 $0.0727
  • 2,000 $0.0636
$0.0636 / $0.0727 Buy Now
DISTI # LSQEA201212T220K
TTI Power Inductors - SMD 22uH 0805 10% LOW RDC pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 0
  • 3,000 $0.0327
  • 6,000 $0.0320
  • 150,000 $0.0305
$0.0305 / $0.0327 Buy Now
DISTI # LSQEA201212T220K
Avnet Abacus Inductor Molded Wirewound 22uH 10 252MHz Ferrite 100mA 0805 Emboss TR (Alt: LSQEA201212T220K) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now
Blume Elektronik Distribution GmbH HF-InductorSMD Shielded 22µH ±10% 1000mOhm Q Tesfrequenz_MHz 16MHz Isat_A Irated +105°C 0805 2mmx1.25mmx1.25mm Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days 0
  • 3,000 $0.0310
$0.0310 RFQ
LCSC 100mA 22uH 10% 0805 Power Inductors ROHS 590
  • 10 $0.0375
  • 100 $0.0367
  • 300 $0.0362
  • 1,000 $0.0357
$0.0357 / $0.0375 Buy Now

Part Details for LSQEA201212T220K

LSQEA201212T220K CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

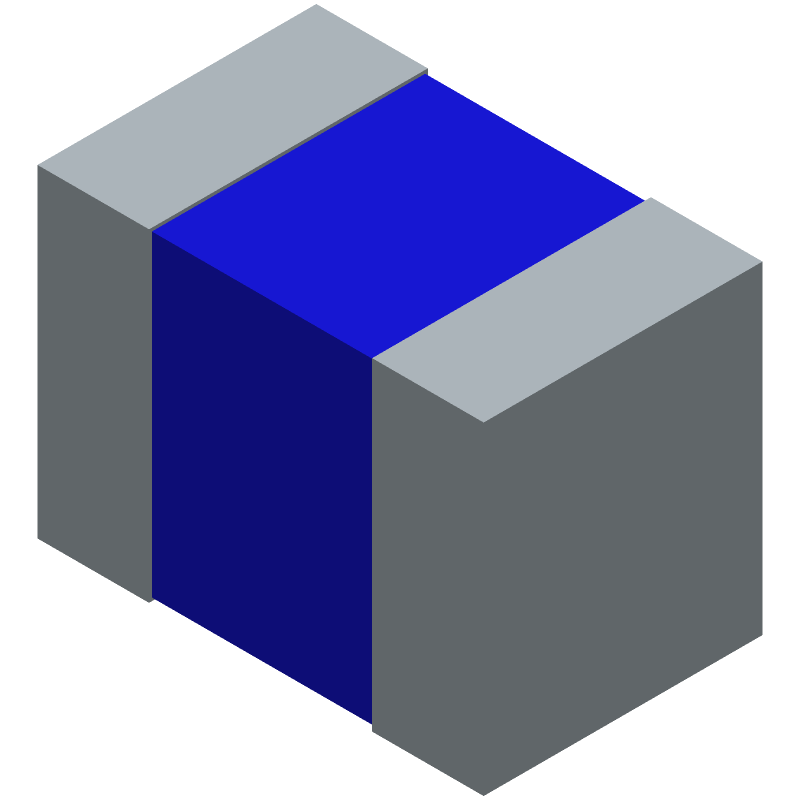

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LSQEA201212T220K Part Data Attributes

Parametric Data
LSQEA201212T220K TAIYO YUDEN
Buy Now Datasheet
Compare Parts:
LSQEA201212T220K TAIYO YUDEN General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 0805, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIYO YUDEN CO LTD
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer TAIYO YUDEN
Case/Size Code 0805
Construction Rectangular
Core Material Ferrite
DC Resistance 1 Ω
Inductance-Nom (L) 22 µH
Inductor Application RF INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Height 1.25 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Embossed, 7 Inch
Rated Current-Max 0.1 A
Self Resonance Frequency 16 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Special Feature DC RESISTANCE IS MEASURED AT 30% TOLERANCE
Surface Mount YES
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 2.52 MHz
Tolerance 10%

Alternate Parts for LSQEA201212T220K

This table gives cross-reference parts and alternative options found for LSQEA201212T220K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LSQEA201212T220K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LMQEA201212T220K TAIYO YUDEN Check for Price General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 0805, CHIP LSQEA201212T220K vs LMQEA201212T220K
LBR2012T220K8 TAIYO YUDEN Check for Price General Purpose Inductor, 22uH, 10%, 1 Element, SMD, CHIP, 0805 LSQEA201212T220K vs LBR2012T220K8
