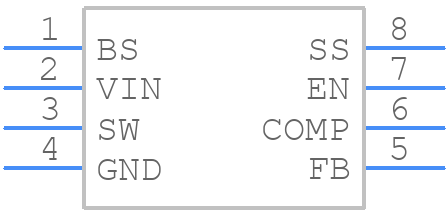

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LSP5526-S8A by Diodes Incorporated
Results Overview of LSP5526-S8A by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LSP5526-S8A Information
LSP5526-S8A by Diodes Incorporated is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LSP5526-S8A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-LSP5526-S8A-ND
|
DigiKey | IC REG BUCK ADJ 2A 8SOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
2175 In Stock |
|
$0.3279 / $0.7300 | Buy Now |
|
DISTI #
LSP5526-S8A
|
Avnet Americas | Conv DC to DC Single Step Down 4.5V to 23V 8-Pin SOP T/R - Tape and Reel (Alt: LSP5526-S8A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 47500 Factory Stock |
|
$0.2928 / $0.2989 | Buy Now |
|
DISTI #
621-LSP5526-S8A
|
Mouser Electronics | Switching Voltage Regulators DCDC Conv HV Buck SO-8 T&R 2.5K RoHS: Compliant | 1119 |
|
$0.2980 / $1.4100 | Buy Now |
|
DISTI #
LSP5526-S8A
|
TME | PMIC, DC/DC converter, Uin: 4.5÷23VDC, Uout: 0.925÷18VDC, 2A, SOP8 Min Qty: 1 | 2387 |
|
$0.3460 / $0.7980 | Buy Now |
|
DISTI #
LSP5526-S8A
|
Avnet Asia | Conv DC to DC Single Step Down 4.5V to 23V 8-Pin SOP T/R (Alt: LSP5526-S8A) RoHS: Compliant Min Qty: 12500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.2215 / $0.2690 | Buy Now |
|
DISTI #
LSP5526-S8A
|
Avnet Silica | Conv DC to DC Single Step Down 45V to 23V 8Pin SOP TR (Alt: LSP5526-S8A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
|
LCSC | Step-down type Adjustable 4.5V23V 2A 925mV18V SOP-8 DC-DC Converters ROHS | 78 |
|
$1.0105 / $2.2904 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 2500 | 2500 |
|
RFQ | |
|
|
Win Source Electronics | DCDC Conv HV Buck SO-8 T&R 2.5K | 25000 |
|
$0.1981 / $0.2557 | Buy Now |
Part Details for LSP5526-S8A
LSP5526-S8A CAD Models
LSP5526-S8A Part Data Attributes
|
|
LSP5526-S8A
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
LSP5526-S8A
Diodes Incorporated
Switching Regulator, Current-mode, 2A, 340kHz Switching Freq-Max, PDSO8,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 23 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 18 V | |
| Output Voltage-Min | 0.925 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 1.5 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 340 kHz | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
LSP5526-S8A Frequently Asked Questions (FAQ)
-
A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
-
The device is sensitive to temperature and humidity. Ensure that the PCB is baked at 125°C for 24 hours before soldering, and use a soldering iron with a temperature not exceeding 260°C for 10 seconds.
-
A 10uF X5R or X7R ceramic capacitor is recommended for input decoupling, placed as close to the VIN pin as possible.
-
Ensure that the device is not exposed to voltage exceeding the maximum rating of 6.5V. Use a TVS diode or a zener diode to clamp the voltage and prevent EOS damage.
-
A 22uF X5R or X7R ceramic capacitor is recommended for output filtering, placed as close to the VOUT pin as possible.
