LRC-LRF3WLF-01-R010-F Information
LRC-LRF3WLF-01-R010-F by TT Electronics Resistors is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MP-64RJ4528GR-010 | Amphenol Cables on Demand | Amphenol MP-64RJ4528GR-010 Slim Category-6 (Thin CAT6) UTP 28-AWG Network Patch Cable (550-MHz) with Snagless RJ45 Connectors - Red 10ft | |
| MP-6ARJ45SNNR-010 | Amphenol Cables on Demand | Amphenol MP-6ARJ45SNNR-010 CAT6A FTP Shielded Patch Cable (650-MHz) with Snagless CAT-6A Shielded RJ45 Connectors (10GbE Optimized) - Red 10ft | |
| MP-5ERJ45UNNR-010 | Amphenol Cables on Demand | Amphenol MP-5ERJ45UNNR-010 Cat5e UTP Patch Cable (350-MHz) with Snagless RJ45 Connectors - Red 10ft |
Price & Stock for LRC-LRF3WLF-01-R010-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11M4663
|
Newark | Resistor, thick Film,0.01Ohms,50Wv,1+/-% Tol,-100,100Ppm-Tc,2512-Case Rohs Compliant: Yes |Tt Electronics/international Resistive LRC-LRF3WLF-01-R010-F RoHS: Compliant Min Qty: 3600 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.5760 / $1.2060 | Buy Now |
|
|
Bristol Electronics | 1002 |
|
RFQ |
Part Details for LRC-LRF3WLF-01-R010-F

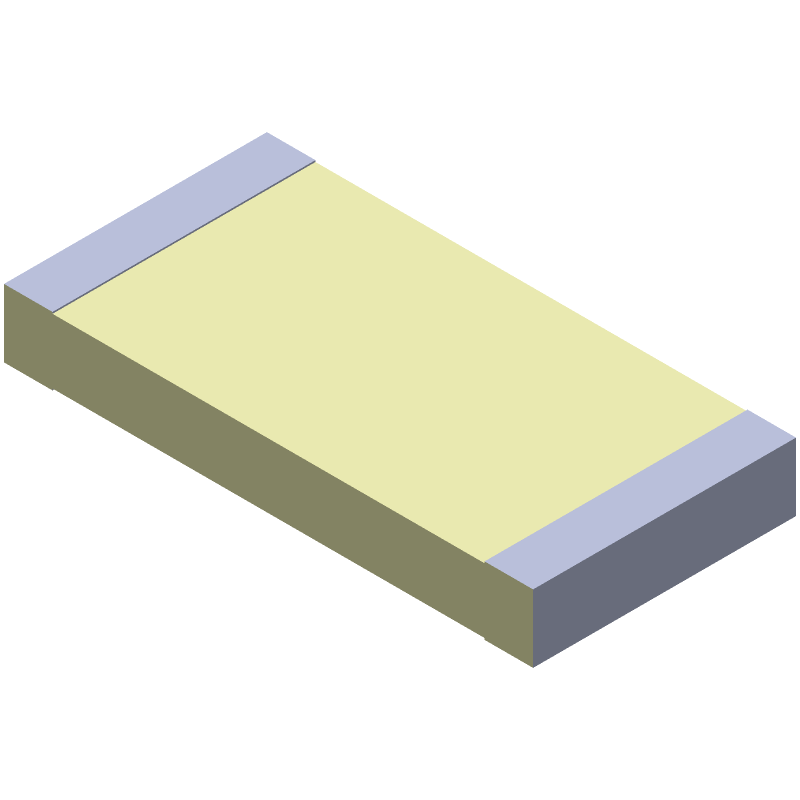

LRC-LRF3WLF-01-R010-F CAD Models
LRC-LRF3WLF-01-R010-F Part Data Attributes
|
|
LRC-LRF3WLF-01-R010-F
TT Electronics Resistors
Buy Now
Datasheet
|
Compare Parts:
LRC-LRF3WLF-01-R010-F
TT Electronics Resistors
Fixed Resistor, Metal Glaze/thick Film, 3W, 0.01ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TT ELECTRONICS PLC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | IRC / TT Electronics | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.94 mm | |
| Package Length | 3.25 mm | |
| Package Style | SMT | |
| Package Width | 6.5 mm | |
| Packing Method | TR, Plastic, 7 Inch | |
| Rated Power Dissipation (P) | 3 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.01 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1225 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% |
Alternate Parts for LRC-LRF3WLF-01-R010-F
This table gives cross-reference parts and alternative options found for LRC-LRF3WLF-01-R010-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LRC-LRF3WLF-01-R010-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LRC-LRF3W-01-R010-F | TT Electronics Resistors | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 3W, 0.01ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | LRC-LRF3WLF-01-R010-F vs LRC-LRF3W-01-R010-F |
LRC-LRF3WLF-01-R010-F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for LRC-LRF3WLF-01-R010-F is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, LRC-LRF3WLF-01-R010-F is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.
-
The MSL of LRC-LRF3WLF-01-R010-F is level 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before soldering.
-
Yes, LRC-LRF3WLF-01-R010-F is AEC-Q200 qualified, which means it meets the requirements for use in automotive applications.
-
The thermal resistance of LRC-LRF3WLF-01-R010-F is 250°C/W, which means it can dissipate heat efficiently.
