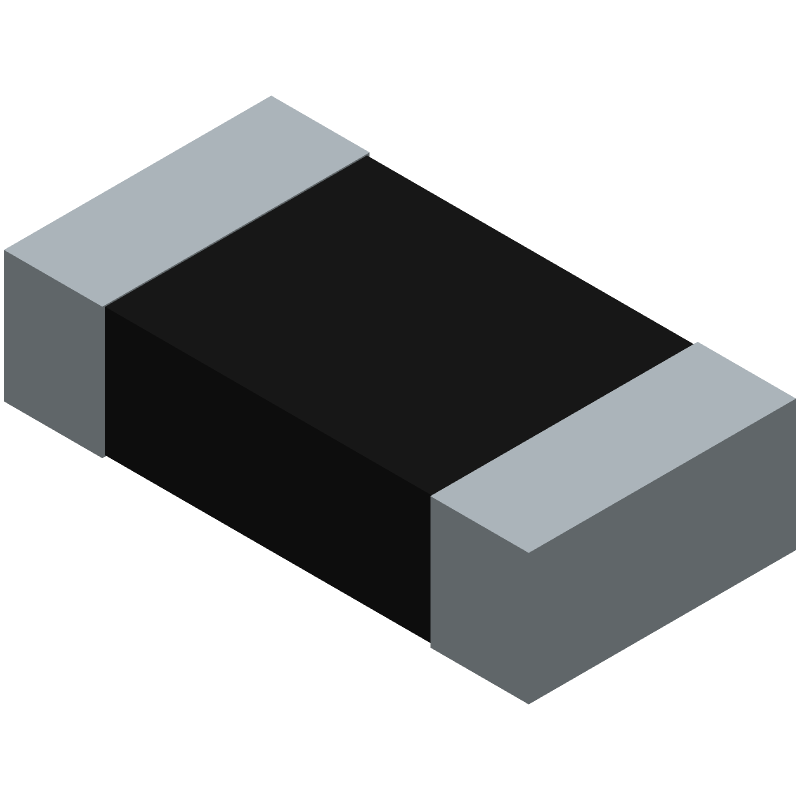

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LR1206-R20FW by TT Electronics Resistors
Results Overview of LR1206-R20FW by TT Electronics Resistors
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
LR1206-R20FW Information
LR1206-R20FW by TT Electronics Resistors is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Part Details for LR1206-R20FW
LR1206-R20FW CAD Models
LR1206-R20FW Part Data Attributes
|
|
LR1206-R20FW
TT Electronics Resistors
Buy Now
Datasheet
|
Compare Parts:
LR1206-R20FW
TT Electronics Resistors
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 0.2ohm, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TT ELECTRONICS PLC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | IRC / TT Electronics | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.8 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.63 mm | |
| Packing Method | TR, Plastic | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.2 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% |
LR1206-R20FW Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the LR1206-R20FW is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the LR1206-R20FW is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.
-
The power rating of the LR1206-R20FW decreases with temperature. At 70°C, the power rating is 0.25W, and at 140°C, it is 0.125W.
-
Yes, the LR1206-R20FW is AEC-Q200 qualified, making it suitable for automotive applications.
-
The LR1206-R20FW has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.
