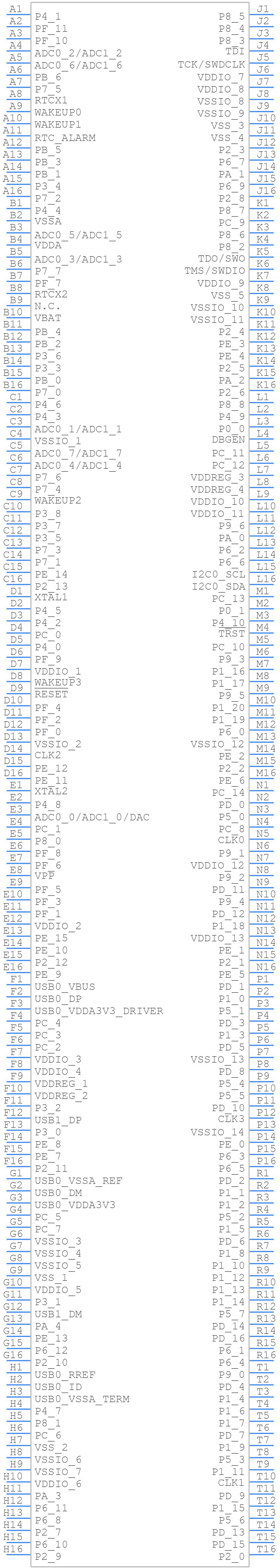

Part Symbol
-

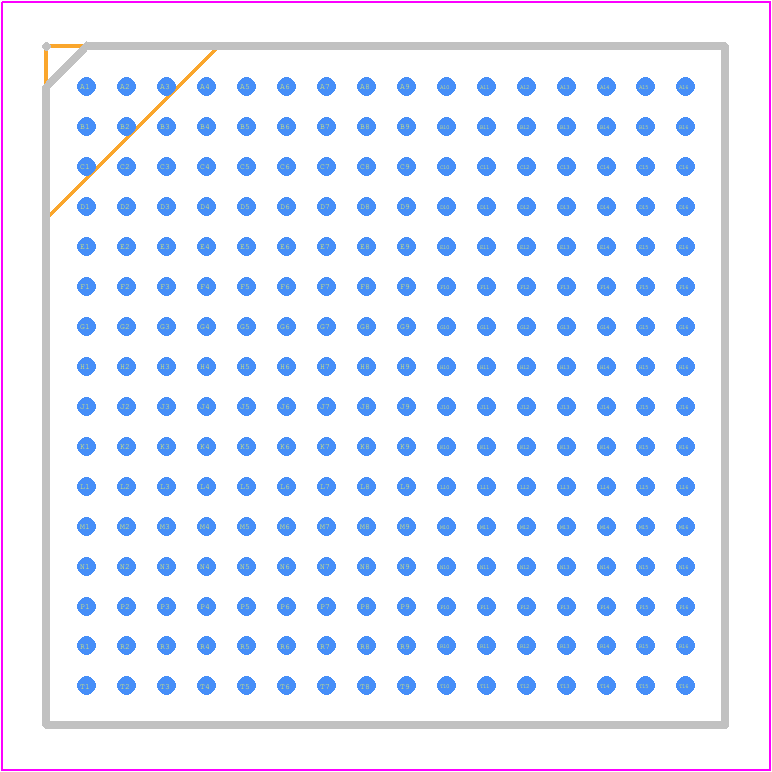

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LPC4330FET256,551 by NXP Semiconductors
Results Overview of LPC4330FET256,551 by NXP Semiconductors
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LPC4330FET256,551 Information
LPC4330FET256,551 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LPC4330FET256,551
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41T4106
|
Newark | Lpc4330Fet256/ Tray Rohs Compliant: Yes |Nxp LPC4330FET256,551 RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.5400 / $10.6700 | Buy Now |
|
DISTI #
568-8518-ND
|
DigiKey | IC MCU 32BIT ROMLESS 256LBGA Min Qty: 1 Lead time: 13 Weeks Container: Tray |
128 In Stock |
|
$8.5041 / $13.3600 | Buy Now |
|
DISTI #
LPC4330FET256,551
|
Avnet Americas | ARM MCU, LPC Family LPC4300 Series Microcontrollers, ARM Cortex-M4, 32 bit, 204 MHz, 256 Pins - Trays (Alt: LPC4330FET256,551) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$7.3832 / $7.6375 | Buy Now |
|
DISTI #
771-LPC4330FET256551
|
Mouser Electronics | ARM Microcontrollers - MCU DUAL CORTEX-M4/M0 264 KB SRAM 2 HS USB RoHS: Compliant | 792 |
|
$8.1500 / $13.3600 | Buy Now |
|
|
Future Electronics | LPC43xx Series 264 kB RAM 204 MHz SMT 32-Bit Microcontroller - LBGA-256 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Container: Tray | 990Tray |
|
$7.4600 / $7.8300 | Buy Now |
|
DISTI #
71239580
|
Verical | MCU 32-bit ARM Cortex M0/ARM Cortex M4 RISC 2.5V/3.3V 256-Pin LBGA Tray RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2321 | Americas - 990 |
|
$7.6200 / $12.2000 | Buy Now |
|
|
Future Electronics | LPC43xx Series 264 kB RAM 204 MHz SMT 32-Bit Microcontroller - LBGA-256 Min Qty: 1 Package Multiple: 1 |
990 null |
|
$7.4600 / $7.8300 | Buy Now |
|
DISTI #
LPC4330FET256,551
|
Avnet Silica | ARM MCU LPC Family LPC4300 Series Microcontrollers ARM CortexM4 32 bit 204 MHz 256 Pins (Alt: LPC4330FET256,551) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
LPC4330FET256,551
|
Avnet Silica | ARM MCU LPC Family LPC4300 Series Microcontrollers ARM CortexM4 32 bit 204 MHz 256 Pins (Alt: LPC4330FET256,551) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
LPC4330FET256,551
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 990 |
|
$7.6200 / $12.2000 | Buy Now |
Part Details for LPC4330FET256,551
LPC4330FET256,551 CAD Models
LPC4330FET256,551 Part Data Attributes
|
|
LPC4330FET256,551
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
LPC4330FET256,551
NXP Semiconductors
LPC4330FET256 - Dual-core Cortex-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT BGA 256-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | BGA | |
| Package Description | 17 X 17 MM, 1 MM HEIGHT, PLASTIC, MO-192, SOT740-2, LBGA-256 | |
| Pin Count | 256 | |
| Manufacturer Package Code | SOT740-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| CPU Family | CORTEX-M4 | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| JESD-30 Code | S-PBGA-B256 | |
| JESD-609 Code | e1 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 164 | |
| Number of Terminals | 256 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LBGA | |
| Package Equivalence Code | BGA256,16X16,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 270336 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.55 mm | |
| Speed | 180 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.2 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
LPC4330FET256,551 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LPC4330FET256 is -40°C to +105°C.
-
The clock settings for the LPC4330FET256 can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock frequencies and sources for the various peripherals and domains.
-
The maximum frequency for the LPC4330FET256 is 204 MHz.
-
The DMA controller on the LPC4330FET256 can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller has 8 channels and supports various transfer modes, including memory-to-memory, peripheral-to-memory, and memory-to-peripheral transfers.
-
The Boot Mode Pins on the LPC4330FET256 are used to select the boot mode of the device. The boot mode pins can be used to select between different boot modes, such as booting from flash, booting from UART, or booting from SPI.
