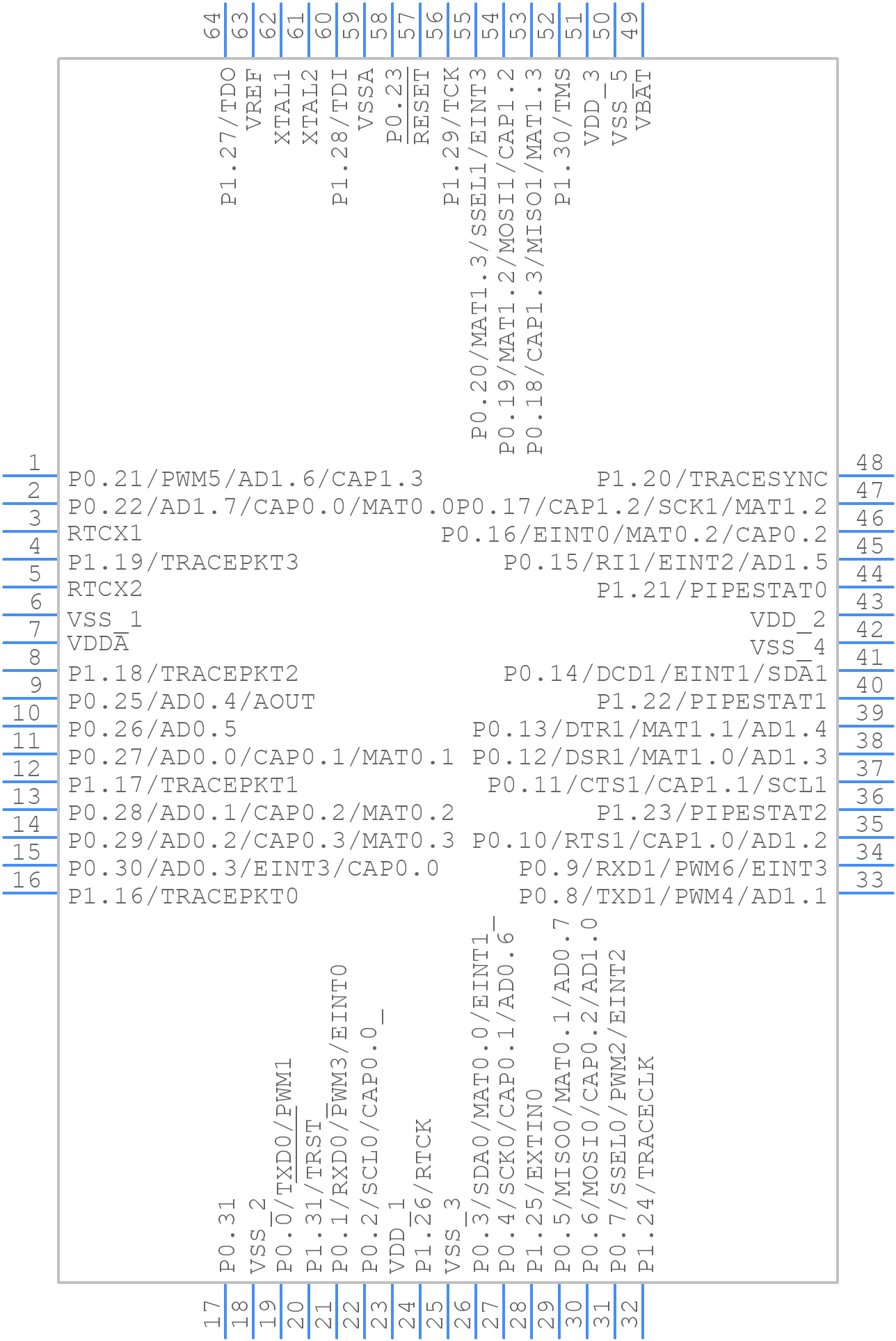

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LPC2134FBD64 by NXP Semiconductors
Results Overview of LPC2134FBD64 by NXP Semiconductors
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
LPC2134FBD64 Information
LPC2134FBD64 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LPC2134FBD64
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | RISC MICROCONTROLLER, 32-BIT, FLASH, ARM7 CPU, 60MHZ, CMOS, PQFP64 | 9 |
|
$11.8650 / $13.3481 | Buy Now |
|
|
Quest Components | RISC MICROCONTROLLER, 32-BIT, FLASH, ARM7 CPU, 60MHZ, CMOS, PQFP64 | 3 |
|
$11.8650 | Buy Now |
|
|
Cytech Systems Limited | 6000 |
|
RFQ |
Part Details for LPC2134FBD64
LPC2134FBD64 CAD Models
LPC2134FBD64 Part Data Attributes
|
|
LPC2134FBD64
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
LPC2134FBD64
NXP Semiconductors
IC 32-BIT, FLASH, 60 MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MS-026, SOT314-2, LQFP-64, Microcontroller
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFP | |
| Package Description | 10 X 10 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MS-026, SOT314-2, LQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | unknown | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | 8 | |
| Bit Size | 32 | |
| CPU Family | ARM7 | |
| Clock Frequency-Max | 60 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of I/O Lines | 47 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 16384 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 60 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for LPC2134FBD64
This table gives cross-reference parts and alternative options found for LPC2134FBD64. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LPC2134FBD64, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LPC2134FBD64/01,11 | NXP Semiconductors | $11.9936 | LPC2131/32/34/36/38 - Single-chip 16/32-bit microcontrollers; 32/64/128/256/512 kB ISP/IAP flash with 10-bit ADC and DAC QFP 64-Pin | LPC2134FBD64 vs LPC2134FBD64/01,11 |
| LPC2134FBD64 | Philips Semiconductors | Check for Price | Microcontroller, 32-Bit, FLASH, ARM7 CPU, 25MHz, PQFP64, | LPC2134FBD64 vs LPC2134FBD64 |
LPC2134FBD64 Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the LPC2134FBD64 is 60 MHz, but it can be overclocked up to 70 MHz with some limitations. However, it's recommended to follow the specifications in the datasheet to ensure reliable operation.
-
The pin multiplexing on the LPC2134FBD64 can be configured using the PINSEL registers. Each peripheral function has a corresponding PINSEL register that determines which pins are used for that function. Refer to the user manual and the datasheet for more information on how to configure the PINSEL registers.
-
The minimum voltage required for the LPC2134FBD64 to operate is 2.4V, but it's recommended to use a voltage of at least 3.0V to ensure reliable operation and to meet the specifications in the datasheet.
-
The ADC on the LPC2134FBD64 can be used by configuring the ADC registers, selecting the ADC clock, and enabling the ADC interrupts. The ADC can be triggered by a software command or by an external event. Refer to the user manual and the datasheet for more information on how to use the ADC.
-
The maximum current that can be sourced or sunk by the GPIO pins on the LPC2134FBD64 is 4mA per pin, but it's recommended to limit the current to 2mA per pin to ensure reliable operation and to prevent overheating.
