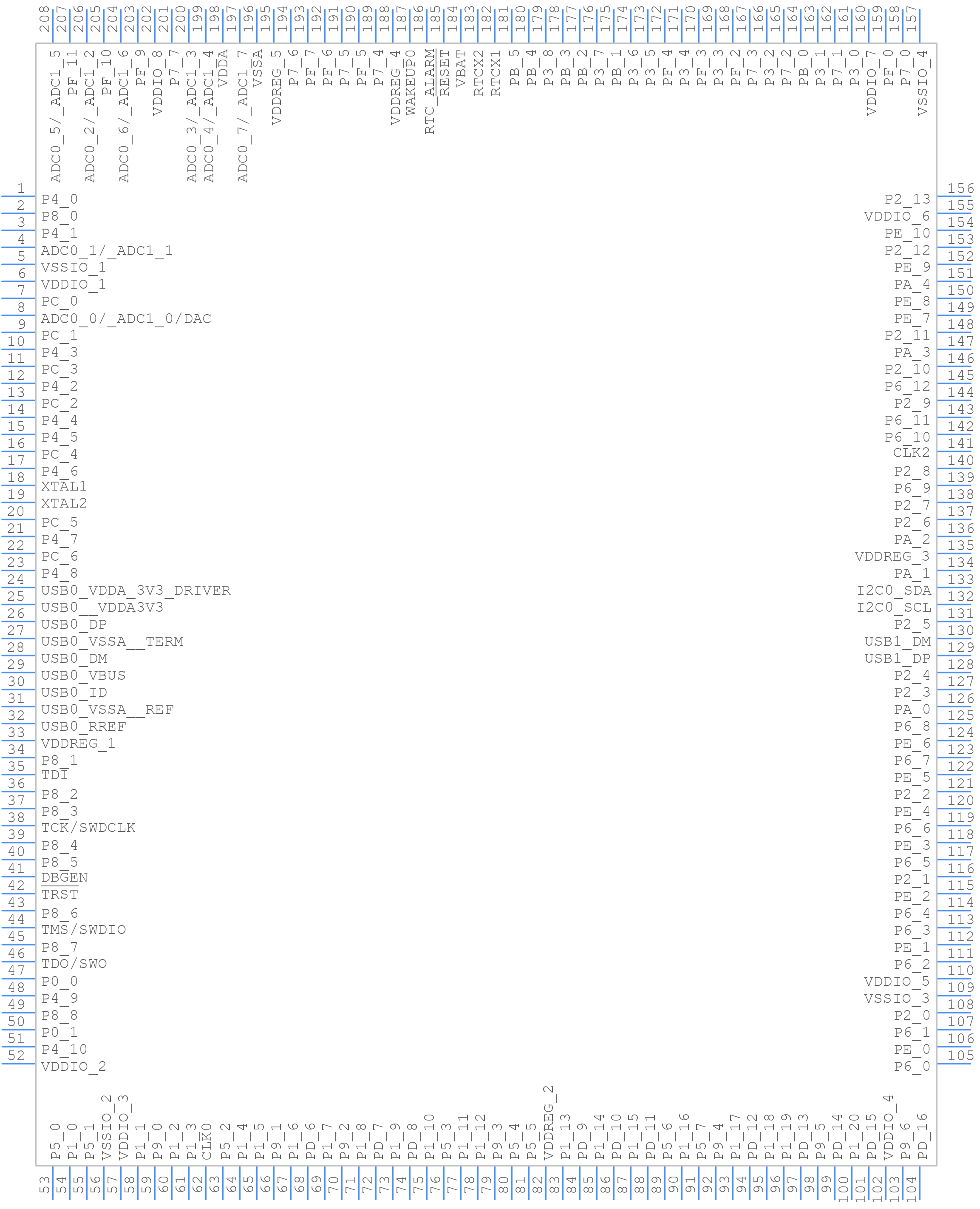

Part Symbol
-

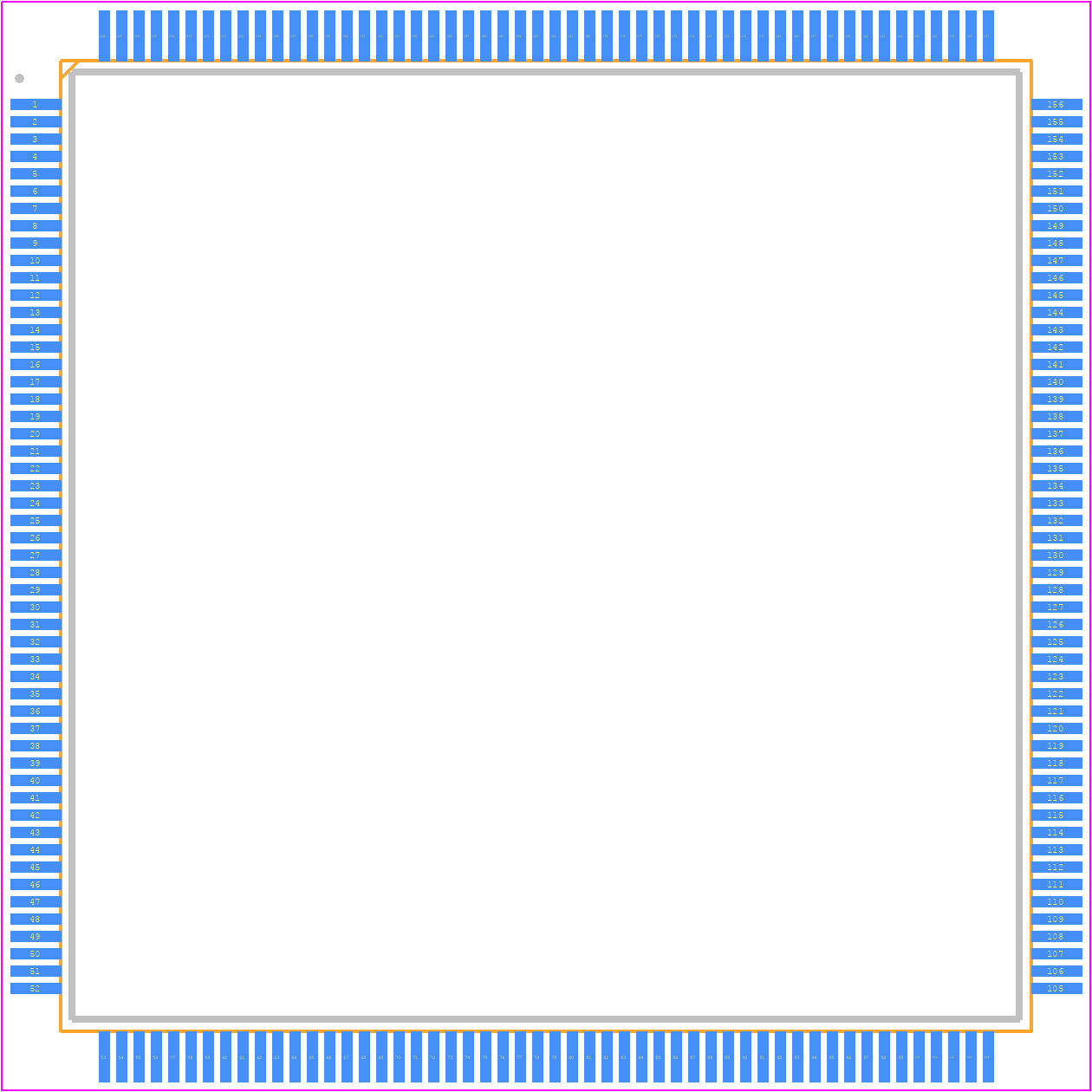

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LPC18S57JBD208E by NXP Semiconductors
Results Overview of LPC18S57JBD208E by NXP Semiconductors
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
Telecommunications
LPC18S57JBD208E Information
LPC18S57JBD208E by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LPC18S57JBD208E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39Y8872
|
Newark | Mcu, 32Bit, Cortex-M3, 180Mhz, Lqfp-208, Product Range:Lpc Family Lpc1800 Series Microcontrollers, Device Core:Arm Cortex-M3, Data Bus Width:32 Bit, Operating Frequency Max:180Mhz, Program Memory Size:1Mb, No. Of Pins:208Pins, Msl:- Rohs Compliant: Yes |Nxp LPC18S57JBD208E RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$12.3300 / $17.0500 | Buy Now |
|
DISTI #
568-14550-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 208LQFP Min Qty: 36 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$11.8653 | Buy Now |
|
DISTI #
LPC18S57JBD208E
|
Avnet Americas | MCU 32-Bit LPC1800 ARM Cortex M3 RISC 1MB Flash 3.3V 208-Pin LQFP Tray - Trays (Alt: LPC18S57JBD208E) RoHS: Compliant Min Qty: 72 Package Multiple: 36 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$10.3341 / $12.1471 | Buy Now |
|
DISTI #
771-LPC18S57JBD208E
|
Mouser Electronics | ARM Microcontrollers - MCU 32-bit ARM Cortex-M3 MCU, 1 MB flash and 136 kB SRAM, Ethernet, two High-speed USB, LCD, EMC, AES engine RoHS: Compliant | 107 |
|
$11.9600 / $22.1100 | Buy Now |
|
DISTI #
LPC18S57JBD208E
|
TME | IC: ARM microcontroller, 136kBSRAM,1024kBFLASH, LQFP208 Min Qty: 1 | 0 |
|
$15.1100 / $23.7000 | RFQ |
|
DISTI #
LPC18S57JBD208E
|
IBS Electronics | MCU 32-BIT LPC1800 ARM CORTEX M3 RISC 1MB FLASH 3.3V 208-PIN LQFP TRAY Min Qty: 108 Package Multiple: 1 | 0 |
|
$14.0660 | Buy Now |
|
DISTI #
LPC18S57JBD208E
|
Avnet Silica | MCU 32Bit LPC1800 ARM Cortex M3 RISC 1MB Flash 33V 208Pin LQFP Tray (Alt: LPC18S57JBD208E) RoHS: Compliant Min Qty: 36 Package Multiple: 36 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
LPC18S57JBD208E
|
EBV Elektronik | MCU 32Bit LPC1800 ARM Cortex M3 RISC 1MB Flash 33V 208Pin LQFP Tray (Alt: LPC18S57JBD208E) RoHS: Compliant Min Qty: 36 Package Multiple: 36 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for LPC18S57JBD208E
LPC18S57JBD208E CAD Models
LPC18S57JBD208E Part Data Attributes
|
|
LPC18S57JBD208E
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
LPC18S57JBD208E
NXP Semiconductors
LPC18S57JBD208 - 32-bit ARM Cortex-M3 MCU; 1 MB flash and 136 kB SRAM; Ethernet, two High-speed USB, LCD, EMC, AES engine QFP 208-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFP | |
| Pin Count | 208 | |
| Manufacturer Package Code | SOT459-1 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | 26 | |
| Bit Size | 32 | |
| Clock Frequency-Max | 25 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | 30 | |
| JESD-609 Code | e3 | |
| Length | 28 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 142 | |
| Number of Terminals | 208 | |
| PWM Channels | YES | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Speed | 180 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.4 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 28 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
LPC18S57JBD208E Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LPC18S57JBD208E is -40°C to +105°C.
-
The clock settings for the LPC18S57JBD208E can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock frequencies and sources for the various peripherals and domains.
-
The maximum frequency for the LPC18S57JBD208E's CPU is 180 MHz.
-
The LPC18S57JBD208E's DMA controller can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller is configured using the DMA registers and can be triggered by various peripherals such as UART, SPI, and I2C.
-
The LPC18S57JBD208E has 1 MB of flash memory.
