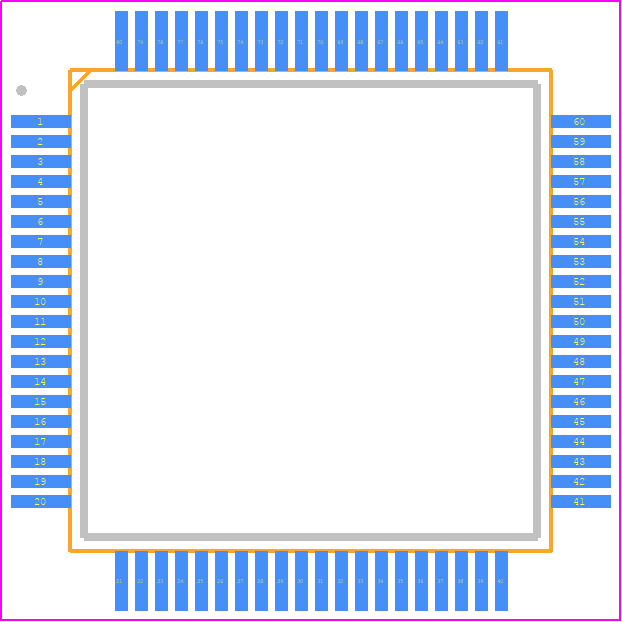

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LPC1756FBD80 by NXP Semiconductors
Results Overview of LPC1756FBD80 by NXP Semiconductors
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
LPC1756FBD80 Information
LPC1756FBD80 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LPC1756FBD80
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LPC1756FBD80
|
TME | IC: ARM microcontroller, 32kBSRAM,256kBFLASH, LQFP80, 2.4÷3.6VDC Min Qty: 1 | 0 |
|
$5.1700 / $8.1000 | RFQ |
|
|
Cytech Systems Limited | 3236 |
|
RFQ | ||
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 80LQFP | 5950 |
|
$6.7775 / $10.1663 | Buy Now |
Part Details for LPC1756FBD80
LPC1756FBD80 CAD Models
LPC1756FBD80 Part Data Attributes
|
|
LPC1756FBD80
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
LPC1756FBD80
NXP Semiconductors
IC 32-BIT, FLASH, 100 MHz, RISC MICROCONTROLLER, PQFP80, 12 X 12 MM, 1.40 MM HEIGHT, PLASTIC, MS-026, SOT315-1, 80 PIN, Microcontroller
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFP | |
| Pin Count | 80 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Clock Frequency-Max | 12 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e3 | |
| Length | 12 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of I/O Lines | 52 | |
| Number of Terminals | 80 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP80,.55SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 32768 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 100 MHz | |
| Supply Current-Max | 100 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
LPC1756FBD80 Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the LPC1756FBD80 is 100 MHz, but it can be overclocked to 120 MHz with some limitations.
-
The pin multiplexing on the LPC1756FBD80 can be configured using the PINSEL registers, which allow you to select the function of each pin. The specific configuration will depend on the application and the peripherals being used.
-
The maximum amount of current that can be sourced or sunk by the GPIO pins on the LPC1756FBD80 is 4 mA per pin, with a total current limit of 100 mA per bank.
-
The ADC on the LPC1756FBD80 can be used by configuring the ADC registers, selecting the input channel, and starting the conversion. The ADC can operate in various modes, including single-shot, continuous, and burst modes.
-
The boot loader on the LPC1756FBD80 is used to load the application code into the microcontroller's flash memory. It can be used to update the firmware in the field or to load a new application.
