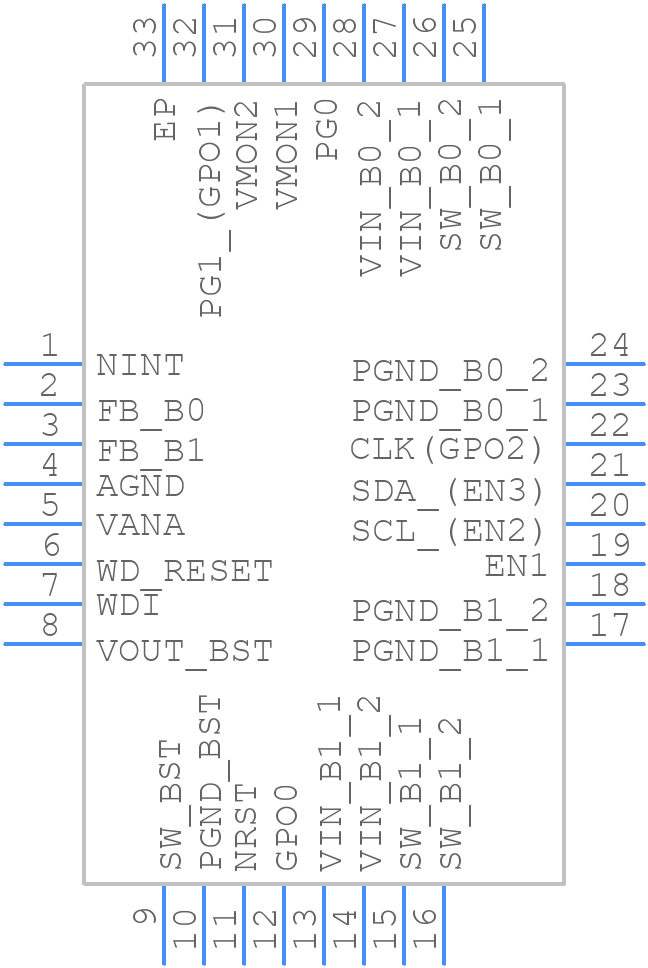

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LP87702KRHBR by Texas Instruments
Results Overview of LP87702KRHBR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LP87702KRHBR Information
LP87702KRHBR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP87702KRHBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LP87702KRHBRCT-ND
|
DigiKey | IC POWER Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3000 In Stock |
|
$2.1038 / $3.9000 | Buy Now |
|
DISTI #
595-LP87702KRHBR
|
Mouser Electronics | Power Management Specialized - PMIC Dual buck converter and 5-V boost with d LP87702KRHBT RoHS: Compliant | 5980 |
|
$2.0800 / $3.9000 | Buy Now |
|
|
Cytech Systems Limited | IC POWER | 3000 |
|
RFQ | |
|
|
Win Source Electronics | IC POWER / Automotive, Industrial PMIC 32-VQFN (5x5) | 50600 |
|
$2.5505 / $3.8257 | Buy Now |
Part Details for LP87702KRHBR
LP87702KRHBR CAD Models
LP87702KRHBR Part Data Attributes
|
|
LP87702KRHBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP87702KRHBR
Texas Instruments
Dual buck converter and 5-V boost with diagnostic functions for industrial radar 32-VQFN -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VQFN-32 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES IN PFM CONTROL TECHNIQUE; 5 V OUTPUT | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.8 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 3 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3.5 A | |
| Output Voltage-Max | 5.2 V | |
| Output Voltage-Min | 0.7 V | |
| Output Voltage-Nom | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.9 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 4000 kHz | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
LP87702KRHBR Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a compact layout with the device placed close to the battery, and the input capacitors (CIN) placed as close as possible to the VIN pin. Additionally, the output capacitors (COUT) should be placed close to the VOUT pin, and the device should be shielded from high-frequency noise sources.
-
To minimize IQ, ensure that the input voltage is within the recommended range (2.7V to 5.5V), use a low-value input capacitor (CIN), and minimize the output voltage (VOUT) to the lowest required value. Also, consider using the device's power-saving modes, such as the Low-Power Mode (LPM) or the Shutdown Mode (SDM).
-
The LP87702KRHBR can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to consult the datasheet's electrical characteristics tables and thermal derating curves to determine the maximum output current for a specific application.
-
Proper thermal management is crucial for the LP87702KRHBR. Ensure good airflow around the device, use a thermally conductive PCB material, and consider using a heat sink or thermal pad. The device's thermal shutdown feature (TSD) will activate if the junction temperature exceeds 150°C, but it's still important to design for adequate heat dissipation.
-
The LP87702KRHBR is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different device or implementing additional thermal management measures, such as heat sinks or cooling systems.
