LP5900SD-3.3/NOPB Information
LP5900SD-3.3/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP5900SD-3.3/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LP5900SD-3.3/NOPBCT-ND
|
DigiKey | IC REG LINEAR 3.3V 150MA 6-WSON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
27060 In Stock |
|
$0.5524 / $1.1900 | Buy Now |
|
DISTI #
926-LP5900SD-3.3NOPB
|
Mouser Electronics | LDO Voltage Regulators LOW-NOISE 100MA LDO A 926-LP5900SDX33NOPB RoHS: Compliant | 13034 |
|
$0.5120 / $1.1900 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE REGULATOR, PDSO6 | 313 |
|
$0.7936 / $1.9840 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE REGULATOR, PDSO6 | 48 |
|
$0.7000 / $1.4000 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE REGULATOR, PDSO6 | 44 |
|
$0.7142 / $1.1904 | Buy Now |
|
DISTI #
SMC-LP5900SD-3.3/NOPB
|
Sensible Micro Corporation | 85Db@(100Hz),40Db@(100Khz) 150Ma Fixed 3.3V Positive 5.5V Dfn6(2.2X2.5) Linear Technology RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2018 | 250 |
|
$0.3510 / $0.3802 | RFQ |
|
|
LCSC | 150mA Fixed 3.3V Positive electrode 5.5V WSON-6-EP(2.2x2.5) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 11 |
|
$0.3960 / $0.8560 | Buy Now |
|
|
Win Source Electronics | IC REG LDO 3.3V 0.15A 6WSON | 50330 |
|
$0.2928 / $0.3781 | Buy Now |
Part Details for LP5900SD-3.3/NOPB

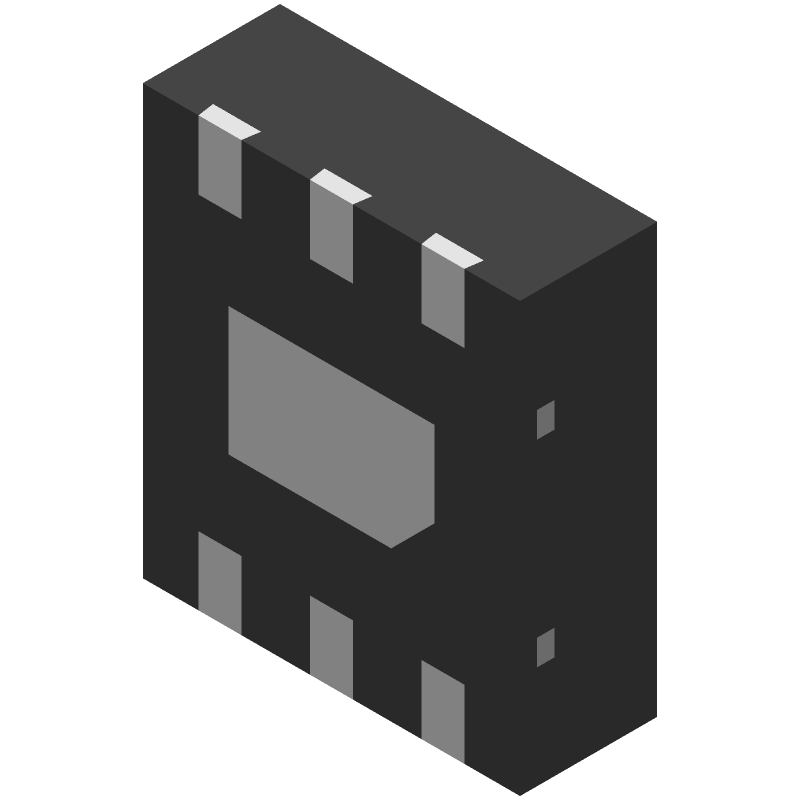

LP5900SD-3.3/NOPB CAD Models
LP5900SD-3.3/NOPB Part Data Attributes
|
|
LP5900SD-3.3/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP5900SD-3.3/NOPB
Texas Instruments
150-mA, low-noise, low-IQ, low-dropout voltage regulator with enable 6-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | 2.20 X 2.50 MM, ROHS COMPLIANT, SC-70, LLP-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.15 V | |
| Dropout Voltage1-Nom | 0.08 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.5 V | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Length | 2.5 mm | |
| Line Regulation-Max | 0.00495% | |
| Load Regulation-Max | 0.004917% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.1,25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 2.2 mm |
LP5900SD-3.3/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LP5900SD-3.3/NOPB is 15V. Exceeding this voltage may damage the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 2.2uF and a maximum equivalent series resistance (ESR) of 1 ohm.
-
The minimum input voltage required for the LP5900SD-3.3/NOPB to operate is 2.7V. Operating the device below this voltage may affect its performance and stability.
-
The LP5900SD-3.3/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage according to the temperature derating curve in the datasheet.
-
To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR output capacitor, add a noise-reducing capacitor (e.g., 10nF) between the output and ground, and minimize the distance between the device and the output capacitor.
