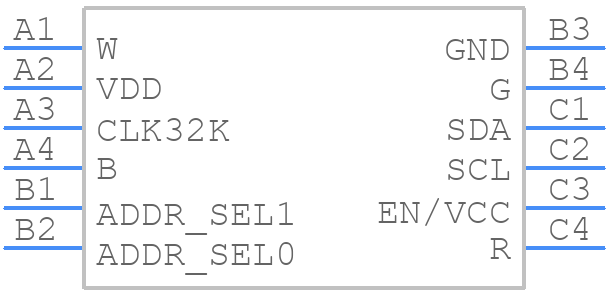

Part Symbol
-
Footprint
-

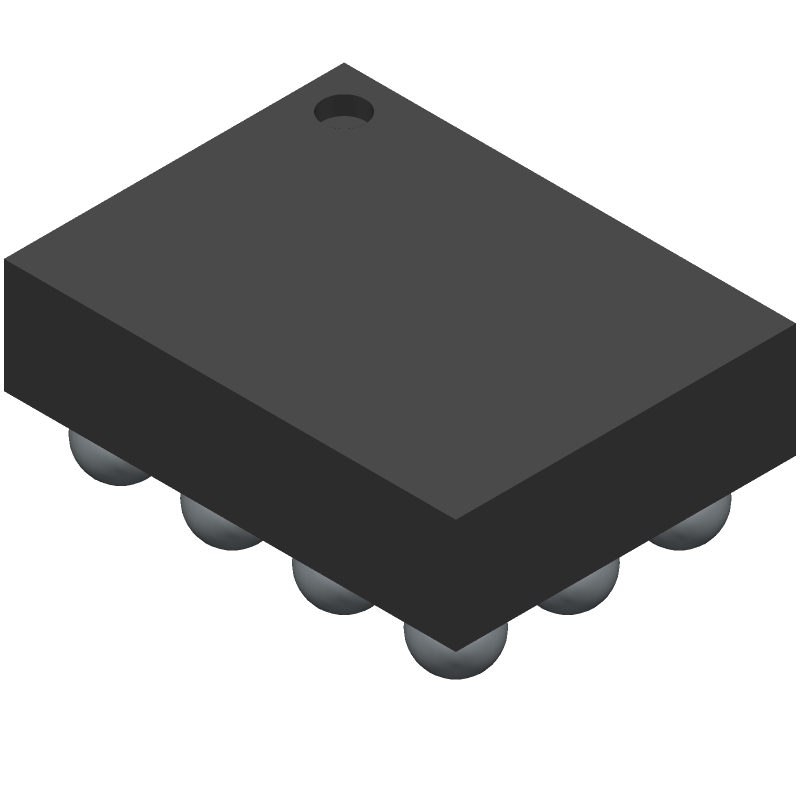

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LP5562TMX/NOPB by Texas Instruments
Results Overview of LP5562TMX/NOPB by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LP5562TMX/NOPB Information
LP5562TMX/NOPB by Texas Instruments is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LP5562TMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-39061-1-ND
|
DigiKey | IC LED DRV LIN I2C 12DSBGA Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9760 In Stock |
|
$0.4903 / $1.0800 | Buy Now |
|
DISTI #
595-LP5562TMX/NOPB
|
Mouser Electronics | LED Display Drivers 4Ch LED Driver A 595-LP5562TME/NOPB RoHS: Compliant | 9886 |
|
$0.4860 / $1.0300 | Buy Now |
|
DISTI #
V72:2272_07201001
|
Arrow Electronics | LED Driver 4 Segment 1000uA Supply Current 12-Pin DSBGA T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2305 Container: Cut Strips | Americas - 1117 |
|
$0.4820 / $0.6995 | Buy Now |
|
DISTI #
74510179
|
Verical | LED Driver 4 Segment 1000uA Supply Current 12-Pin DSBGA T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2305 | Americas - 1117 |
|
$0.4820 / $0.5930 | Buy Now |
|
|
Quest Components | 139 |
|
$10.5000 / $13.5000 | Buy Now | |
|
DISTI #
LP5562TMX/NOPB
|
TME | IC: driver, LED driver, I2C, DSBGA12, Ch: 4, 2.7÷5.5VDC, PWM Min Qty: 1 | 919 |
|
$0.5100 / $0.8000 | Buy Now |
|
DISTI #
SMC-LP5562TMX/NOPB
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 4975 |
|
RFQ | |
|
|
LCSC | I2C 4 25.5mA 2.7V5.5V DSBGA-12 LED Drivers ROHS | 144 |
|
$0.4397 / $0.9097 | Buy Now |
|
|
Win Source Electronics | IC LED DRIVER LINEAR DIM 12DSBGA | 83930 |
|
$0.2500 / $0.3229 | Buy Now |
Part Details for LP5562TMX/NOPB
LP5562TMX/NOPB CAD Models
LP5562TMX/NOPB Part Data Attributes
|
|
LP5562TMX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP5562TMX/NOPB
Texas Instruments
4-channel RGB/White LED driver with internal program memory and Independent channel control 12-DSBGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | DSBGA-12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Input Mode | SERIAL | |
| Input Characteristics | STANDARD | |
| Interface IC Type | LED DISPLAY DRIVER | |
| JESD-30 Code | R-PBGA-B12 | |
| JESD-609 Code | e1 | |
| Length | 1.618 mm | |
| Moisture Sensitivity Level | 1 | |
| Multiplexed Display Capability | NO | |
| Number of Channels | 4 | |
| Number of Functions | 1 | |
| Number of Segments | 4 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | CONSTANT-CURRENT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA12,3X4,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.675 mm | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.218 mm | |
| fmax-Min | 0.4 MHz |
LP5562TMX/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the LP5562 involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The inductor should be placed close to the LX pin, and the diode should be placed close to the LX pin as well. A solid ground plane is also recommended to reduce EMI.
-
When choosing an inductor for the LP5562, consider the inductor's saturation current, DC resistance, and core material. The inductor's saturation current should be higher than the peak current of the converter. The DC resistance should be low to minimize power loss. Ferrite or iron powder cores are good options for the LP5562.
-
The maximum input voltage for the LP5562 is 15V. Exceeding this voltage may damage the device.
-
The output voltage of the LP5562 can be adjusted by changing the resistive divider ratio of the feedback resistors (RFBT and RFBG). A higher ratio will result in a higher output voltage, and a lower ratio will result in a lower output voltage.
-
The EN (enable) pin is used to turn the converter on and off. When the EN pin is high, the converter is enabled, and when it is low, the converter is disabled. This pin can be used to implement power sequencing or to turn off the converter when not in use.
