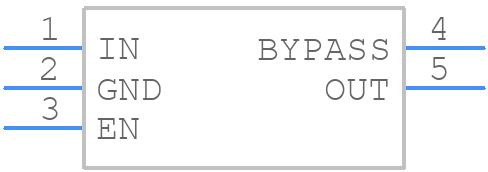

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LP3985IM5X-5.0/NOPB by Texas Instruments
Results Overview of LP3985IM5X-5.0/NOPB by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LP3985IM5X-5.0/NOPB Information
LP3985IM5X-5.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP3985IM5X-5.0/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46439-1-ND
|
DigiKey | IC REG LINEAR 5V 150MA SOT23-5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
5261 In Stock |
|
$0.1765 / $0.4400 | Buy Now |
|
DISTI #
926-LP3985IM5X50NOPB
|
Mouser Electronics | LDO Voltage Regulators 150-mA low-dropout voltage regulator wi A 926-LP3985IM550NOPB RoHS: Compliant | 2807 |
|
$0.1710 / $0.4100 | Buy Now |
|
DISTI #
J56:1989_00062920
|
Arrow Electronics | LDO Regulator Pos 5V 0.15A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2430 | Europe - 6000 |
|
$0.1630 / $0.1784 | Buy Now |
|
DISTI #
V72:2272_07294813
|
Arrow Electronics | LDO Regulator Pos 5V 0.15A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2217 Container: Cut Strips | Americas - 476 |
|
$0.1693 / $0.2637 | Buy Now |
|
|
Bristol Electronics | 2528 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 85 |
|
$0.3656 / $0.5625 | Buy Now |
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 5V, 0.1V DROPOUT, CMOS, PDSO5 | 68 |
|
$0.3750 / $0.7500 | Buy Now |
|
DISTI #
LP3985IM5X-5.0NOPB
|
TME | IC: voltage regulator, LDO,fixed, 5V, 0.15A, SOT23-5, SMD, ±3%, Ch: 1 Min Qty: 3 | 185 |
|
$0.1770 / $0.3000 | Buy Now |
|
|
Win Source Electronics | IC REG LDO 5V 0.15A SOT23-5 | 302112 |
|
$0.2622 / $0.3927 | Buy Now |
Part Details for LP3985IM5X-5.0/NOPB
LP3985IM5X-5.0/NOPB CAD Models
LP3985IM5X-5.0/NOPB Part Data Attributes
|
|
LP3985IM5X-5.0/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP3985IM5X-5.0/NOPB
Texas Instruments
150-mA, low-dropout voltage regulator with bypass & enable 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.1 V | |
| Dropout Voltage1-Nom | 0.06 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2.5 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.00475% | |
| Load Regulation-Max | 0.037% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 5.15 V | |
| Output Voltage1-Min | 4.85 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 1.6 mm |
Alternate Parts for LP3985IM5X-5.0/NOPB
This table gives cross-reference parts and alternative options found for LP3985IM5X-5.0/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LP3985IM5X-5.0/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LP3985IM5X-5.0 | Texas Instruments | Check for Price | 5V FIXED POSITIVE LDO REGULATOR, 0.1V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN | LP3985IM5X-5.0/NOPB vs LP3985IM5X-5.0 |
| LP3985IM5-5.0 | Texas Instruments | Check for Price | 5V FIXED POSITIVE LDO REGULATOR, 0.1V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN | LP3985IM5X-5.0/NOPB vs LP3985IM5-5.0 |
| LP3985IM5-5.0/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.1 V DROPOUT, PDSO5, SOT-23, SOP-5, Fixed Positive Single Output LDO Regulator | LP3985IM5X-5.0/NOPB vs LP3985IM5-5.0/NOPB |
| LP3985IM5X-5.0/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.1 V DROPOUT, PDSO5, SOT-23, SOP-5, Fixed Positive Single Output LDO Regulator | LP3985IM5X-5.0/NOPB vs LP3985IM5X-5.0/NOPB |
LP3985IM5X-5.0/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent overheating.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be placed as close to the output pin as possible.
-
The maximum output current is 1.5A, but it's recommended to keep it below 1A for optimal performance and to prevent overheating.
-
Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. It's essential to ensure that the device is properly heat-sinked to prevent overheating.
-
The EN pin is used to enable or disable the regulator. When the EN pin is pulled low, the regulator is disabled, and the output voltage is turned off.
