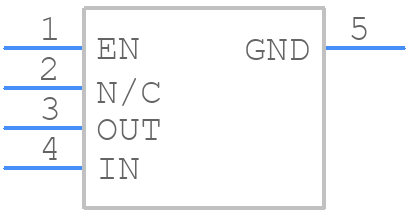

Part Symbol
-
Footprint
-

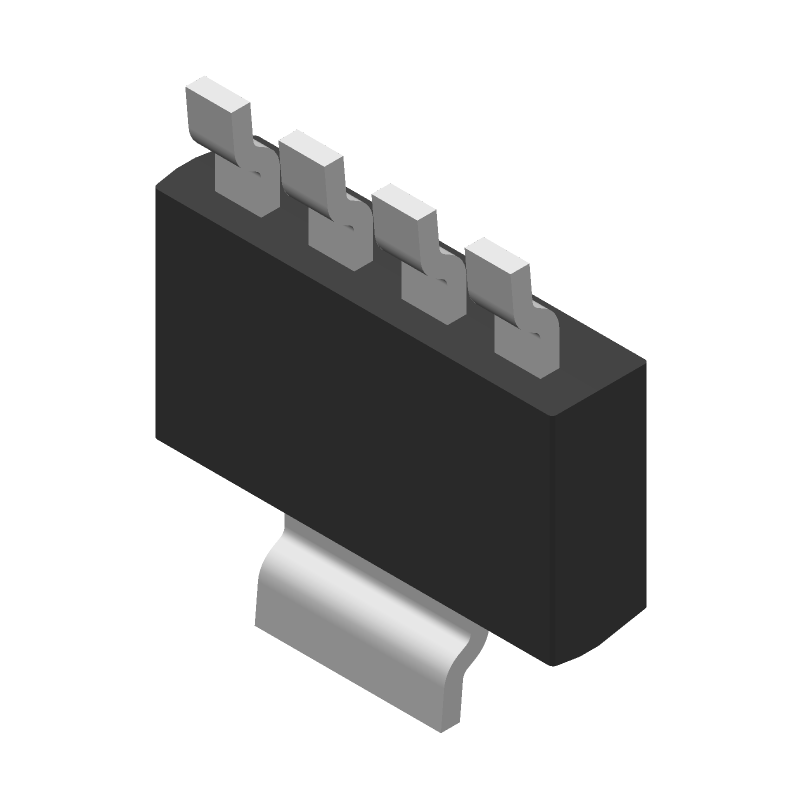

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LP38692MP-5.0 by Texas Instruments
Results Overview of LP38692MP-5.0 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LP38692MP-5.0 Information
LP38692MP-5.0 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LP38692MPX-5.0/NOPB | Texas Instruments | 1A Low Dropout CMOS Linear Regulators, Stable with Ceramic Output Capacitors 5-SOT-223 -40 to 125 | |
| LP38692MP-ADJ/NOPB | Texas Instruments | 1A Low Dropout CMOS Linear Regulators with Adjustable Output Stable with Ceramic Output Capacitors 5-SOT-223 -40 to 125 | |
| LP38692MP-2.5/NOPB | Texas Instruments | 1A Low Dropout CMOS Linear Regulators, Stable with Ceramic Output Capacitors 5-SOT-223 -40 to 125 |
Price & Stock for LP38692MP-5.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LP38692MP-5.0CT-ND
|
DigiKey | IC REG LINEAR 5V 1A SOT-223-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
290 In Stock |
|
$1.1476 / $2.3300 | Buy Now |
|
DISTI #
86279987
|
Verical | LDO Regulator Pos 5V 1A 5-Pin(4+Tab) SOT-223 T/R RoHS: Not Compliant Min Qty: 203 Package Multiple: 1 Date Code: 1201 | Americas - 2000 |
|
$1.8500 | Buy Now |
|
|
Bristol Electronics | 15 |
|
RFQ | ||
|
|
Rochester Electronics | LP38692 1A Low Dropout CMOS Linear Regulators, Stable with Ceramic Output Capacitors RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 2000 |
|
$0.9177 / $1.4800 | Buy Now |
|
|
New Advantage Corporation | Fixed Positive LDO Regulator, 5V, 0.8V Dropout, CMOS, PDSO5 RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 862 |
|
$1.0700 / $1.2500 | Buy Now |
|
|
Vyrian | Regulators | 7358 |
|
RFQ |
Part Details for LP38692MP-5.0
LP38692MP-5.0 CAD Models
LP38692MP-5.0 Part Data Attributes
|
|
LP38692MP-5.0
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP38692MP-5.0
Texas Instruments
1-A, 10-V, low-dropout voltage regulator with enable 5-SOT-223 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-223 | |
| Package Description | SOT-223, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.8 V | |
| Dropout Voltage1-Nom | 0.45 V | |
| Input Voltage Absolute-Max | 12 V | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 2.7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e0 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.0225% | |
| Load Regulation-Max | 0.24975% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223-4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 5% | |
| Width | 3.56 mm |
Alternate Parts for LP38692MP-5.0
This table gives cross-reference parts and alternative options found for LP38692MP-5.0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LP38692MP-5.0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LP38692MP-5.0/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.8 V DROPOUT, PDSO5, SOT-223, 5 PIN, Fixed Positive Single Output LDO Regulator | LP38692MP-5.0 vs LP38692MP-5.0/NOPB |
| LP38692MPX-5.0/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.8 V DROPOUT, PSSO5, SOT-223, 5 PIN, Fixed Positive Single Output LDO Regulator | LP38692MP-5.0 vs LP38692MPX-5.0/NOPB |
| LP38692MPX-5.0 | Texas Instruments | Check for Price | 1A Low Dropout CMOS Linear Regulators, Stable with Ceramic Output Capacitors 5-SOT-223 -40 to 125 | LP38692MP-5.0 vs LP38692MPX-5.0 |
| LP38692MP-5.0 | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.8 V DROPOUT, PDSO5, SOT-223, 5 PIN, Fixed Positive Single Output LDO Regulator | LP38692MP-5.0 vs LP38692MP-5.0 |
LP38692MP-5.0 Frequently Asked Questions (FAQ)
-
A good PCB layout for the LP38692MP-5.0 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
-
To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, adding a small capacitor (e.g., 10nF) between the output and ground can help prevent oscillations.
-
The maximum output current of the LP38692MP-5.0 is 1.5A. However, it's recommended to derate the output current based on the ambient temperature and the device's thermal characteristics to ensure reliable operation.
-
The LP38692MP-5.0 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
-
To protect the LP38692MP-5.0 from input voltage transients and surges, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is properly sized and rated for the expected input voltage range.
