Part Details for LP2992IM5-5.0/NOPB by Texas Instruments

Results Overview of LP2992IM5-5.0/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LP2992IM5-5.0/NOPB Information

LP2992IM5-5.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DS96174CN/NOPB Rochester Electronics LLC DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16
LM611IM/NOPB Rochester Electronics LLC LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar
LP2992IM5X-5.0/NOPB Texas Instruments Micropower 250 mA Low-Noise Ultra Low-Dropout Regulator 5-SOT-23 -40 to 125

Price & Stock for LP2992IM5-5.0/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 31AH2033
Newark Ic, V Reg, Linear, 5V, Smd, Output Type:Fixed, Input Voltage Min:2.2V, Input Voltage Max:16V, Fixed Output Voltage Nom.:5V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:250Ma, Dropout Voltage Rohs Compliant: Yes |Texas Instruments LP2992IM5-5.0/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 45
  • 1 $0.2430
  • 10 $0.2430
  • 25 $0.2430
  • 50 $0.2430
  • 100 $0.2430
  • 250 $0.2430
  • 500 $0.2430
  • 1,000 $0.2430
$0.2430 Buy Now
DISTI # LP2992IM5-5.0/NOPBCT-ND
DigiKey IC REG LINEAR 5V 250MA SOT23-5 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 6515
In Stock
  • 1 $1.0400
  • 10 $0.7490
  • 25 $0.6764
  • 100 $0.5965
  • 250 $0.5583
  • 500 $0.5353
  • 1,000 $0.5164
  • 3,000 $0.4930
  • 6,000 $0.4815
  • 9,000 $0.4758
  • 15,000 $0.4694
  • 21,000 $0.4657
$0.4657 / $1.0400 Buy Now
DISTI # 926-2992IM5-5.0/NOPB
Mouser Electronics LDO Voltage Regulators Micropower 250mA Lo- Noise Ultra LDO Reg A 926-LP2992IM5X50NOPB RoHS: Compliant 8596
  • 1 $1.6500
  • 10 $1.0500
  • 25 $0.9420
  • 100 $0.7750
  • 250 $0.6760
  • 500 $0.6400
  • 1,000 $0.5380
  • 3,000 $0.4910
  • 6,000 $0.4330
$0.4330 / $1.6500 Buy Now
Quest Components FIXED POSITIVE LDO REGULATOR, 5V, 0.85V DROPOUT, BIPOLAR, PDSO5 144
  • 1 $2.2550
  • 12 $1.3530
  • 45 $1.1275
$1.1275 / $2.2550 Buy Now
DISTI # LP2992IM5-5.0/NOPB
TME IC: voltage regulator, LDO,fixed, 5V, 0.25A, SOT23-5, SMD, ±5%, Ch: 1 Min Qty: 1 217
  • 1 $1.1800
  • 50 $0.8900
  • 100 $0.8000
  • 500 $0.7800
$0.7800 / $1.1800 Buy Now
Cytech Systems Limited IC REG LINEAR 5V 250MA SOT23-5 3000
RFQ
Vyrian Regulators 10301
RFQ

Part Details for LP2992IM5-5.0/NOPB

LP2992IM5-5.0/NOPB CAD Models

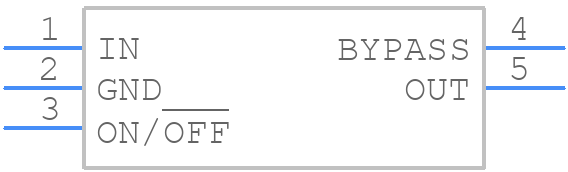

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LP2992IM5-5.0/NOPB Part Data Attributes

Parametric Data
LP2992IM5-5.0/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LP2992IM5-5.0/NOPB Texas Instruments 250-mA, 16-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOT-23
Package Description GREEN, SOT-23, 5 PIN
Pin Count 5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Max 0.85 V
Dropout Voltage1-Nom 0.45 V
Input Voltage Absolute-Max 16 V
Input Voltage-Max 16 V
Input Voltage-Min 6 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.92 mm
Line Regulation-Max 0.016%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.25 A
Output Voltage1-Max 5.25 V
Output Voltage1-Min 4.75 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.45 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 5%
Width 1.6 mm

Alternate Parts for LP2992IM5-5.0/NOPB

This table gives cross-reference parts and alternative options found for LP2992IM5-5.0/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LP2992IM5-5.0/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LP2992IM5-5.0 National Semiconductor Corporation Check for Price IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.85 V DROPOUT, PDSO5, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator LP2992IM5-5.0/NOPB vs LP2992IM5-5.0
LP2992IM5-5.0 Texas Instruments Check for Price Micropower 250 mA Low-Noise Ultra Low-Dropout Regulator 5-SOT-23 -40 to 125 LP2992IM5-5.0/NOPB vs LP2992IM5-5.0
LP2992IM5X-5.0/NOPB National Semiconductor Corporation Check for Price IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.85 V DROPOUT, PDSO5, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator LP2992IM5-5.0/NOPB vs LP2992IM5X-5.0/NOPB
Part Number Manufacturer Composite Price Description Compare
LP2992IM5X-5.0/NOPB Texas Instruments $0.7287 250-mA, 16-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125 LP2992IM5-5.0/NOPB vs LP2992IM5X-5.0/NOPB
LP2992IM5X-5.0 National Semiconductor Corporation Check for Price IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.85 V DROPOUT, PDSO5, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator LP2992IM5-5.0/NOPB vs LP2992IM5X-5.0

LP2992IM5-5.0/NOPB Related Parts

LP2992IM5-5.0/NOPB Frequently Asked Questions (FAQ)

  • The maximum input voltage is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent overheating.

  • To ensure stability, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet.

  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stability and optimal performance.

  • The LP2992IM5-5.0/NOPB is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating.

  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. It's essential to consider the power dissipation to ensure the device operates within its thermal limits.
