Power Circuits / Linear Regulator ICs / LP2987IMMX-3.3/NOPB
Datasheets
LP2987IMMX-3.3/NOPB by:

200-mA, 16-V, low-dropout voltage regulator with power good & enable 8-VSSOP -40 to 125

Part Details for LP2987IMMX-3.3/NOPB by Texas Instruments

Results Overview of LP2987IMMX-3.3/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

LP2987IMMX-3.3/NOPB Information

LP2987IMMX-3.3/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LP2987IMMX-3.3/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 296-37599-1-ND
DigiKey IC REG LINEAR 3.3V 200MA 8-VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $2.2100
  • 3,500 $1.2933
  • 7,000 $1.2691
$1.2691 / $2.2100 Buy Now
DISTI # 926-LP2987IMMX33NOPB
Mouser Electronics LDO Voltage Regulators 200-mA 16-V low-dr opout voltage regula A 926-LP2987IMM33NOPB RoHS: Compliant 0
  • 3,500 $1.2900
$1.2900 Order Now
Vyrian Peripheral ICs 843
RFQ

Part Details for LP2987IMMX-3.3/NOPB

LP2987IMMX-3.3/NOPB CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

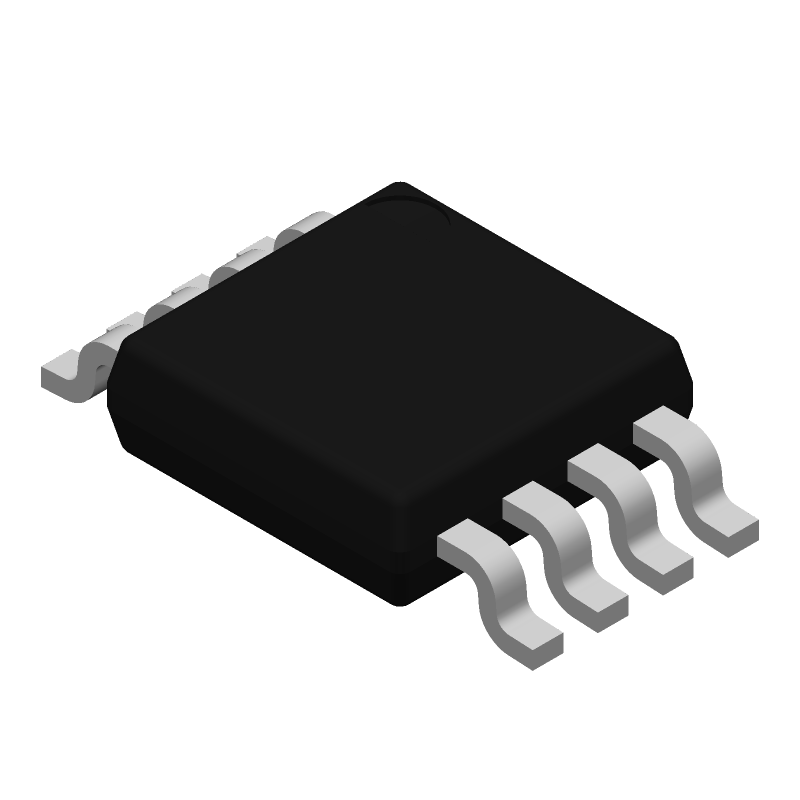

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LP2987IMMX-3.3/NOPB Part Data Attributes

Parametric Data
LP2987IMMX-3.3/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LP2987IMMX-3.3/NOPB Texas Instruments 200-mA, 16-V, low-dropout voltage regulator with power good & enable 8-VSSOP -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description TSSOP, TSSOP8,.19
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Max 0.35 V
Dropout Voltage1-Nom 0.18 V
Input Voltage Absolute-Max 16 V
Input Voltage-Max 16 V
Input Voltage-Min 4.3 V
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Line Regulation-Max 0.0123%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.2 A
Output Voltage1-Max 3.3924 V
Output Voltage1-Min 3.2076 V
Output Voltage1-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.1 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2.8%
Width 3 mm

Alternate Parts for LP2987IMMX-3.3/NOPB

This table gives cross-reference parts and alternative options found for LP2987IMMX-3.3/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LP2987IMMX-3.3/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LP2987IMM-3.3 Texas Instruments Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SO-8 LP2987IMMX-3.3/NOPB vs LP2987IMM-3.3
LP2987IMM-3.3/NOPB National Semiconductor Corporation Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PDSO8, MINI, SO-8, Fixed Positive Single Output LDO Regulator LP2987IMMX-3.3/NOPB vs LP2987IMM-3.3/NOPB
LP2987AIMMX-3.3 Texas Instruments Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SO-8 LP2987IMMX-3.3/NOPB vs LP2987AIMMX-3.3
LP2987AIMMX-3.3/NOPB Texas Instruments Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SO-8 LP2987IMMX-3.3/NOPB vs LP2987AIMMX-3.3/NOPB
LP2987AIMM-3.3 Texas Instruments Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SO-8 LP2987IMMX-3.3/NOPB vs LP2987AIMM-3.3
Part Number Manufacturer Composite Price Description Compare
LP2987IMM-3.3/NOPB Texas Instruments Check for Price 200-mA, 16-V, low-dropout voltage regulator with power good & enable 8-VSSOP -40 to 125 LP2987IMMX-3.3/NOPB vs LP2987IMM-3.3/NOPB
LP2987AIMMX-3.3/NOPB National Semiconductor Corporation Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PDSO8, MINI, SO-8, Fixed Positive Single Output LDO Regulator LP2987IMMX-3.3/NOPB vs LP2987AIMMX-3.3/NOPB
LP2987AIMM-3.3/NOPB Texas Instruments Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SO-8 LP2987IMMX-3.3/NOPB vs LP2987AIMM-3.3/NOPB
LP2987IMMX-3.3 National Semiconductor Corporation Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PDSO8, MINI, SO-8, Fixed Positive Single Output LDO Regulator LP2987IMMX-3.3/NOPB vs LP2987IMMX-3.3
LP2987AIMMX-3.3 National Semiconductor Corporation Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PDSO8, MINI, SO-8, Fixed Positive Single Output LDO Regulator LP2987IMMX-3.3/NOPB vs LP2987AIMMX-3.3
