Part Details for LP2951CMX-3.0/NOPB by Texas Instruments

Results Overview of LP2951CMX-3.0/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

LP2951CMX-3.0/NOPB Information

LP2951CMX-3.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LP2951CMX-3.3/NOPB Texas Instruments Series of Adjustable Micropower Voltage Regulators 8-SOIC -40 to 125
LP2951CMX/NOPB Texas Instruments Series of Adjustable Micropower Voltage Regulators 8-SOIC -40 to 125
LP2951CMX-3.0/NOPB Texas Instruments Series of Adjustable Micropower Voltage Regulators 8-SOIC -40 to 125

Price & Stock for LP2951CMX-3.0/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 296-45262-1-ND
DigiKey IC REG LIN POS ADJ 100MA 8-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 700
In Stock
  • 1 $0.7200
  • 10 $0.5100
  • 25 $0.4576
  • 100 $0.4006
  • 250 $0.3734
  • 500 $0.3569
  • 1,000 $0.3434
  • 2,500 $0.3291
  • 5,000 $0.3206
  • 7,500 $0.3162
  • 12,500 $0.3115
  • 17,500 $0.3087
  • 25,000 $0.3060
$0.3060 / $0.7200 Buy Now
DISTI # 926-LP2951CMX30NOPB
Mouser Electronics LDO Voltage Regulators 100-mA 30-V low-dr opout voltage regula A 926-LP2951CM30NOPB RoHS: Compliant 399
  • 1 $0.7200
  • 10 $0.5100
  • 25 $0.4580
  • 100 $0.4010
  • 250 $0.3570
  • 1,000 $0.3440
  • 2,500 $0.3160
  • 10,000 $0.3010
  • 20,000 $0.2980
$0.2980 / $0.7200 Buy Now
Bristol Electronics   Min Qty: 6 5000
  • 6 $0.8940
  • 24 $0.5811
  • 88 $0.3352
  • 300 $0.2861
  • 648 $0.2503
  • 1,540 $0.2324
$0.2324 / $0.8940 Buy Now
Quest Components   4000
  • 1 $1.1920
  • 560 $0.3099
  • 2,582 $0.2980
$0.2980 / $1.1920 Buy Now
Quest Components   4000
  • 1 $1.4305
  • 1,399 $0.5007
  • 2,997 $0.4292
$0.4292 / $1.4305 Buy Now
DISTI # LP2951CMX-3.0/NOPB
TME IC: voltage regulator, LDO,fixed, 3V, 0.1A, SO8, SMD, reel,tape Min Qty: 1 1439
  • 1 $0.7600
  • 5 $0.7000
  • 25 $0.6400
  • 100 $0.5700
  • 250 $0.4800
  • 1,000 $0.4400
  • 2,500 $0.4000
$0.4000 / $0.7600 Buy Now
LCSC 100mA Fixed Positive electrode 30V SOIC-8 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 250
  • 1 $0.8174
  • 10 $0.6676
  • 30 $0.5927
  • 100 $0.5366
  • 500 $0.4916
  • 1,000 $0.4692
$0.4692 / $0.8174 Buy Now
Vyrian Regulators 47842
RFQ
Win Source Electronics IC REG LDO 3V/ADJ 0.1A 8SOIC 14974
  • 18 $3.2640
  • 44 $2.6784
  • 67 $2.5953
  • 92 $2.5110
  • 119 $2.4278
  • 160 $2.1760
$2.1760 / $3.2640 Buy Now

Part Details for LP2951CMX-3.0/NOPB

LP2951CMX-3.0/NOPB CAD Models

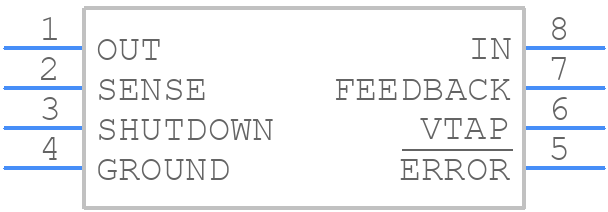

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LP2951CMX-3.0/NOPB Part Data Attributes

Parametric Data
LP2951CMX-3.0/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LP2951CMX-3.0/NOPB Texas Instruments 100-mA, 30-V, low-dropout voltage regulator with power good & enable 8-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Date Of Intro 1992-05-01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED/ADJUSTABLE
Dropout Voltage1-Max 0.6 V
Dropout Voltage1-Nom 0.38 V
Input Voltage Absolute-Max 30 V
Input Voltage-Max 30 V
Input Voltage-Min 2.3 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Line Regulation-Max 0.012%
Line Regulation-Max (%/V) 0.015385
Load Regulation-Max 0.009%
Load Regulation-Max(%) 0.3%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 29 V
Output Voltage1-Min 1.24 V
Output Voltage1-Nom 3 V
Output Voltage2-Max 29 V
Output Voltage2-Min 1.24 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.75 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2.4%
Width 3.9 mm
