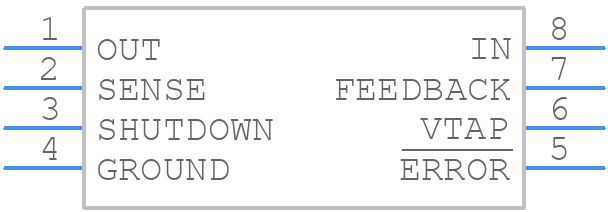

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LP2951CM-3.0/NOPB by Texas Instruments
Results Overview of LP2951CM-3.0/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LP2951CM-3.0/NOPB Information
LP2951CM-3.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP2951CM-3.0/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LP2951CM-3.0/NOPB-ND
|
DigiKey | IC REG LIN POS ADJ 100MA 8-SOIC Min Qty: 1 Lead time: 18 Weeks Container: Tube |
895 In Stock |
|
$0.6211 / $1.3000 | Buy Now |
|
DISTI #
926-LP2951CM30NOPB
|
Mouser Electronics | LDO Voltage Regulators 100-mA 30-V low-dr opout voltage regula A 926-LP2951CMX30NOPB RoHS: Compliant | 205 |
|
$0.6030 / $1.3000 | Buy Now |
|
DISTI #
LP2951CM-3.0/NOPB
|
TME | IC: voltage regulator, LDO,fixed, 3V, 0.1A, SO8, SMD, tube, Ch: 1 Min Qty: 1 | 142 |
|
$1.0600 / $1.6900 | Buy Now |
|
|
Vyrian | Regulators | 7395 |
|
RFQ |
Part Details for LP2951CM-3.0/NOPB
LP2951CM-3.0/NOPB CAD Models
LP2951CM-3.0/NOPB Part Data Attributes
|
|
LP2951CM-3.0/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP2951CM-3.0/NOPB
Texas Instruments
100-mA, 30-V, low-dropout voltage regulator with power good & enable 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| parentfamilyid | 4215565 | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Schedule B Code | 8542.39.00.00 | |
| Date Of Intro | 1992-05-01 | |
| kg CO2e/kg | 12.04 | |
| Average Weight (mg) | 53.65 | |
| CO2e (mg) | 645.946 | |
| Samacsys Description | Series of Adjustable Micropower Voltage Regulators | |
| Samacsys Manufacturer | Texas Instruments | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 184.070498 | |
| Category CO2 Kg | 504 | |
| CO2 | 92771.530992 | |
| Compliance Temperature Grade | Automotive: -40C to +125C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 99 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Adjustability | FIXED/ADJUSTABLE | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.38 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 2.3 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.012% | |
| Line Regulation-Max (%/V) | 0.015385 | |
| Load Regulation-Max | 0.009% | |
| Load Regulation-Max(%) | 0.3% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 29 V | |
| Output Voltage1-Min | 1.24 V | |
| Output Voltage1-Nom | 3 V | |
| Output Voltage2-Max | 29 V | |
| Output Voltage2-Min | 1.24 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2.4% | |
| Width | 3.9 mm |
