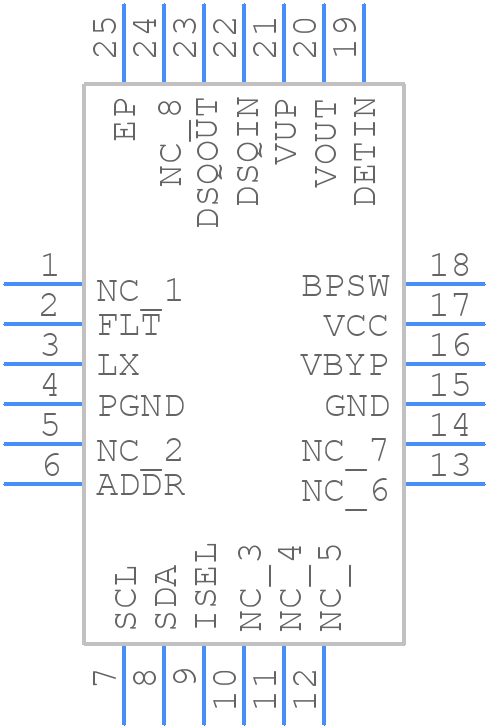

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LNBH25PQR by STMicroelectronics
Results Overview of LNBH25PQR by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LNBH25PQR Information
LNBH25PQR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LNBH25PQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7212
|
Newark | Lnb Supply & Control, 16V, Qfn-24, Ic Function:Lnb Supply & Control With Step-Up & I2C, Supply Voltage Min:8V, Supply Voltage Max:16V, Ic Package Type:Qfn, No. Of Pins:24Pins, Operating Temperature Min:0°C, Product Range:-, Msl:- Rohs Compliant: Yes |Stmicroelectronics LNBH25PQR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1428 |
|
$1.8600 / $2.9400 | Buy Now |
|
DISTI #
497-12076-1-ND
|
DigiKey | IC REG CONV SAT TV 1OUT 24QFN Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6165 In Stock |
|
$1.1588 / $2.3200 | Buy Now |
|
DISTI #
LNBH25PQR
|
Avnet Americas | LNB Supply and Control IC 8 to 16V 24-Pin QFN EP T/R - Tape and Reel (Alt: LNBH25PQR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$1.1240 / $1.1472 | Buy Now |
|
DISTI #
511-LNBH25PQR
|
Mouser Electronics | Power Management Specialized - PMIC LNB Supply Control 12V 22 KHz 4kV RoHS: Compliant | 3974 |
|
$1.1600 / $2.3800 | Buy Now |
|
DISTI #
V36:1790_06553437
|
Arrow Electronics | LNB Supply and Control Voltage Regulator 8V to 16V 24-Pin QFN EP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks Date Code: 2449 | Americas - 4000 |
|
$2.0915 / $2.1876 | Buy Now |
|
|
STMicroelectronics | LNB supply and control IC with step-up and I2C interface RoHS: Compliant Min Qty: 1 | 3964 |
|
$1.2900 / $2.3300 | Buy Now |
|
DISTI #
SMC-LNBH25PQR
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 4000 |
|
RFQ | |
|
DISTI #
LNBH25PQR
|
Avnet Silica | LNB Supply and Control IC 8 to 16V 24Pin QFN EP TR (Alt: LNBH25PQR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days | Silica - 8000 |
|
Buy Now | |
|
DISTI #
LNBH25PQR
|
EBV Elektronik | LNB Supply and Control IC 8 to 16V 24Pin QFN EP TR (Alt: LNBH25PQR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 21 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for LNBH25PQR
LNBH25PQR CAD Models
LNBH25PQR Part Data Attributes
|
|
LNBH25PQR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LNBH25PQR
STMicroelectronics
LNB supply and control IC with step-up and I<sup>2</sup>C interface
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | 4 X 4 MM, ROHS COMPLIANT, QFN-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Output Current-Max | 1.1 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 440 kHz | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 4 mm |
