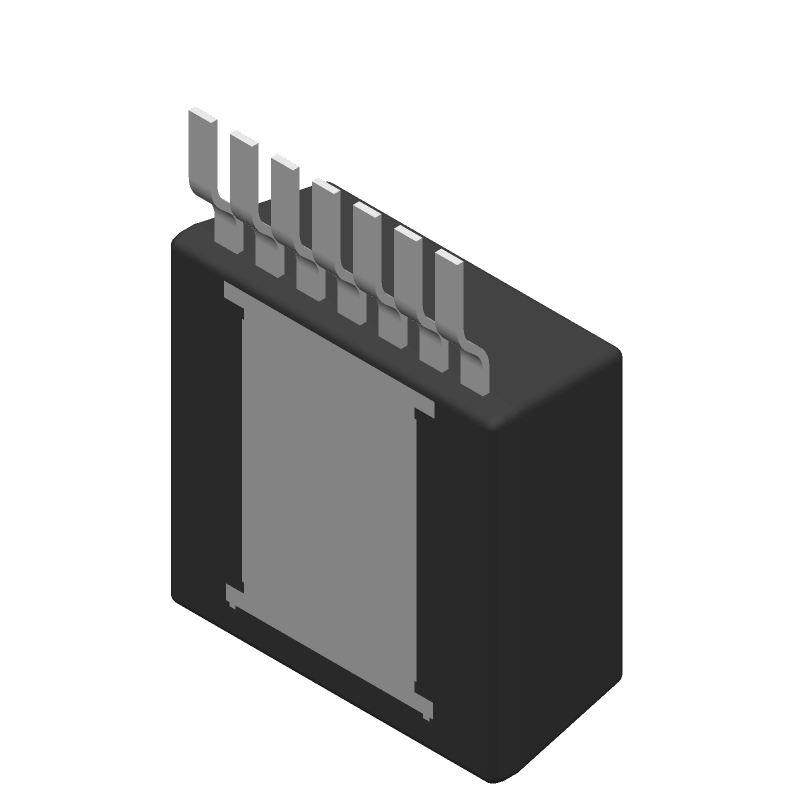

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMZ14202TZX-ADJ/NOPB by Texas Instruments
Results Overview of LMZ14202TZX-ADJ/NOPB by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMZ14202TZX-ADJ/NOPB Information
LMZ14202TZX-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LMZ14202TZX-ADJ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LMZ14202TZX-ADJ/NOPBCT-ND
|
DigiKey | DC DC CONVERTER 0.8-6V Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1791 In Stock |
|
$10.8144 / $12.5200 | Buy Now |
|
DISTI #
926-LM14202TZXADJNPB
|
Mouser Electronics | Switching Voltage Regulators SIMPLE SWITCHER®, 6V to 42V 2A Power A 926-LM14202TZEADJNPB RoHS: Compliant | 1511 |
|
$9.4000 / $10.8900 | Buy Now |
|
DISTI #
J56:1989_02419609
|
Arrow Electronics | Module DC-DC 1-OUT 0.8V to 6V 2A 12W 7-Pin TO-PMOD EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Date Code: 2408 | Europe - 500 |
|
$9.9437 / $10.0408 | Buy Now |
|
|
LCSC | TO-PMOD-7 DC-DC Power Modules ROHS | 2 |
|
$9.3049 / $11.4829 | Buy Now |
|
|
Win Source Electronics | IC BUCK SYNC ADJ 2A TO-PMOD-7 / Module DC-DC 1-OUT 0.8V to 6V 2A 12W 7-Pin TO-PMOD EP T/R | 1540 |
|
$8.7845 / $11.3466 | Buy Now |
Part Details for LMZ14202TZX-ADJ/NOPB
LMZ14202TZX-ADJ/NOPB CAD Models
LMZ14202TZX-ADJ/NOPB Part Data Attributes
|
|
LMZ14202TZX-ADJ/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMZ14202TZX-ADJ/NOPB
Texas Instruments
SIMPLE SWITCHER® 6V to 42V, 2A Power Module in Leaded SMT-TO Package 7-TO-PMOD -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TO-PMOD, 7 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 6V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSSO-G7 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 6 V | |
| Output Voltage-Min | 0.8 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SMSIP7H,.55,50 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.58 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9.85 mm |
Alternate Parts for LMZ14202TZX-ADJ/NOPB
This table gives cross-reference parts and alternative options found for LMZ14202TZX-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMZ14202TZX-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMZ14202HTZX/NOPB | Texas Instruments | Check for Price | SIMPLE SWITCHER® 6V to 42V, 2A High Output Voltage Power Module 7-TO-PMOD -40 to 125 | LMZ14202TZX-ADJ/NOPB vs LMZ14202HTZX/NOPB |
| LMZ14202HTZX | Texas Instruments | Check for Price | IC SWITCHING REGULATOR, Switching Regulator or Controller | LMZ14202TZX-ADJ/NOPB vs LMZ14202HTZX |
| LMZ14202EXTTZE/NOPB | Texas Instruments | Check for Price | 2A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App 7-TO-PMOD -55 to 125 | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZE/NOPB |
| LMZ14202EXTTZX | Texas Instruments | Check for Price | SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD, 7 PIN | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZX |
| LMZ14202EXTTZ | Texas Instruments | Check for Price | SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD, 7 PIN | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZ |
| LMZ14202EXTTZX-ADJ | Texas Instruments | Check for Price | 3.65A SWITCHING REGULATOR, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD-7 | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZX-ADJ |
| LMZ14202HTZ | Texas Instruments | Check for Price | IC SWITCHING REGULATOR, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD, 7 PIN, Switching Regulator or Controller | LMZ14202TZX-ADJ/NOPB vs LMZ14202HTZ |
| LMZ14202EXTTZ-ADJ | Texas Instruments | Check for Price | 3.65A SWITCHING REGULATOR, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD-7 | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZ-ADJ |
| LMZ14202TZX-ADJ | Texas Instruments | Check for Price | SWITCHING REGULATOR, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD, 7 PIN | LMZ14202TZX-ADJ/NOPB vs LMZ14202TZX-ADJ |
| LMZ14202EXTTZE-ADJ | Texas Instruments | Check for Price | 3.65A SWITCHING REGULATOR, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD-7 | LMZ14202TZX-ADJ/NOPB vs LMZ14202EXTTZE-ADJ |
LMZ14202TZX-ADJ/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
-
To ensure a stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines, as well as to minimize noise and ripple on the input voltage. Additionally, using a high-quality output capacitor with low ESR and a suitable voltage rating is crucial.
-
While the datasheet specifies a maximum input voltage of 42V, it's essential to consider the maximum voltage rating of the specific package and the operating conditions. In general, it's recommended to derate the input voltage by 10-15% to ensure reliable operation.
-
To protect the device from overcurrent and overheating, it's recommended to add external overcurrent protection (OCP) and overvoltage protection (OVP) circuits. Additionally, ensuring good thermal design and heat sinking can help prevent overheating.
-
The recommended input capacitor type is a low-ESR ceramic capacitor with a value between 10uF to 22uF. The exact value depends on the specific application and input voltage ripple requirements.
