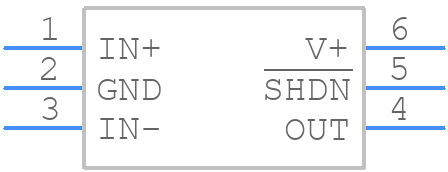

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMV341IDBVR by Texas Instruments
Results Overview of LMV341IDBVR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LMV341IDBVR Information
LMV341IDBVR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV341IDBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-17843-1-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-6 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
13389 In Stock |
|
$0.2447 / $0.5900 | Buy Now |
|
DISTI #
595-LMV341IDBVR
|
Mouser Electronics | Operational Amplifiers - Op Amps Single Rail-To-Rail Output CMOS RoHS: Compliant | 23293 |
|
$0.2380 / $1.2700 | Buy Now |
|
DISTI #
43868734
|
Verical | Op Amp Single Low Voltage Amplifier R-R O/P 5.5V 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 2032 | Americas - 2074 |
|
$0.2646 / $0.3696 | Buy Now |
|
|
Bristol Electronics | 3184 |
|
RFQ | ||
|
|
Bristol Electronics | 2470 |
|
RFQ | ||
|
|
Rochester Electronics | LMV341 Single Rail-To-Rail Output CMOS Operational Amplifier with Shutdown RoHS: Compliant Status: Active Min Qty: 1 | 285 |
|
$0.1895 / $0.3056 | Buy Now |
|
|
LCSC | Single channel 375pA 1V/us 0.25mV SOT-23-6 Operational Amplifier ROHS | 19 |
|
$0.3623 / $0.6475 | Buy Now |
|
|
Vyrian | Amplifiers | 6584 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 1MHZ RRO SOT23-6 | 30270 |
|
$0.2503 / $0.3232 | Buy Now |
Part Details for LMV341IDBVR
LMV341IDBVR CAD Models
LMV341IDBVR Part Data Attributes
|
|
LMV341IDBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMV341IDBVR
Texas Instruments
Single, 5.5-V, 1-MHz, high output current (75-mA) operational amplifier 6-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, PLASTIC, SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.003 µA | |
| Bias Current-Max (IIB) @25C | 0.0002 µA | |
| Common-mode Reject Ratio-Min | 56 dB | |
| Common-mode Reject Ratio-Nom | 86 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 1 V/us | |
| Supply Current-Max | 0.2 mA | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 1580 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for LMV341IDBVR
This table gives cross-reference parts and alternative options found for LMV341IDBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMV341IDBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMV341DBVR | Texas Instruments | Check for Price | IC,OP-AMP,SINGLE,CMOS,TSOP,6PIN,PLASTIC | LMV341IDBVR vs LMV341DBVR |
LMV341IDBVR Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LMV341IDBVR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a compensation capacitor (e.g., 10nF to 100nF) in parallel with the feedback resistor.
-
The recommended input voltage range for the LMV341IDBVR is between 1.8V and 5.5V, although the device can operate with input voltages as low as 1.7V and as high as 5.6V.
-
Yes, the LMV341IDBVR is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the device's performance may degrade at extreme temperatures.
-
Choose an output capacitor with a low equivalent series resistance (ESR) and a value between 10nF and 100nF. A ceramic capacitor (e.g., X5R or X7R) is a good choice. Avoid using electrolytic capacitors due to their high ESR.
