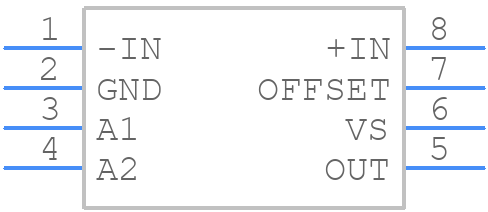

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMP8601MA/NOPB by Texas Instruments
Results Overview of LMP8601MA/NOPB by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LMP8601MA/NOPB Information
LMP8601MA/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMP8601MA/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH6139
|
Newark | Current Sense Amp, 60V, 60Khz, 8Soic, No. Of Amplifiers:1 Amplifier, Input Bias Current:0.02Μa, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Bandwidth:60Khz, Supply Rohs Compliant: Yes |Texas Instruments LMP8601MA/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 170 |
|
$4.2300 / $5.5600 | Buy Now |
|
DISTI #
LMP8601MA/NOPB-ND
|
DigiKey | IC CURRENT SENSE 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1590 In Stock |
|
$2.7084 / $4.7700 | Buy Now |
|
DISTI #
926-LMP8601MA/NOPB
|
Mouser Electronics | Current Sense Amplifiers 60V Current Sense Am p A 926-LMP8601MAX/NOPB RoHS: Compliant | 1664 |
|
$2.5500 / $4.7700 | Buy Now |
|
|
LCSC | -4V27V 60kHz Single channel SOIC-8 Current Sense Amplifiers ROHS | 10 |
|
$5.6380 / $5.8417 | Buy Now |
|
|
Win Source Electronics | IC CURR SENSE 1 CIRCUIT 8SOIC | 7740 |
|
$2.9196 / $4.3793 | Buy Now |
Part Details for LMP8601MA/NOPB
LMP8601MA/NOPB CAD Models
LMP8601MA/NOPB Part Data Attributes
|
|
LMP8601MA/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMP8601MA/NOPB
Texas Instruments
-22 to 60V, bi-directional current sense amplifier w/ in-line filter capability 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.02 µA | |
| Common Mode Voltage-Max | 60 V | |
| Common-mode Reject Ratio-Min | 90 dB | |
| Common-mode Reject Ratio-Nom | 96 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 0.4 V/us | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 1.5 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 60 | |
| Voltage Gain-Min | 19.9 | |
| Voltage Gain-Nom | 20 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for LMP8601MA/NOPB
This table gives cross-reference parts and alternative options found for LMP8601MA/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMP8601MA/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMP8601MAX/NOPB | Texas Instruments | $1.7034 | -22 to 60V, bi-directional current sense amplifier w/ in-line filter capability 8-SOIC -40 to 125 | LMP8601MA/NOPB vs LMP8601MAX/NOPB |
| LMP8601QMAX/NOPB | Texas Instruments | $1.9376 | AEC-Q100, -22 to 60V, bi-directional current sense amplifier w/ in-line filter capability 8-SOIC -40 to 125 | LMP8601MA/NOPB vs LMP8601QMAX/NOPB |
| LMP8601MAX | Texas Instruments | Check for Price | OP-AMP, 1000uV OFFSET-MAX, 0.06MHz BAND WIDTH, PDSO8, SOIC-8 | LMP8601MA/NOPB vs LMP8601MAX |
| LMP8601QMAX | Texas Instruments | Check for Price | OP-AMP, 1000uV OFFSET-MAX, 0.06MHz BAND WIDTH, PDSO8, SOIC-8 | LMP8601MA/NOPB vs LMP8601QMAX |
LMP8601MA/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the LMP8601MA/NOPB involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The choice of input and output capacitors for the LMP8601MA/NOPB depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages.
-
The maximum power dissipation of the LMP8601MA/NOPB is 1.4W. To ensure that it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature below 85°C. Additionally, the device should be operated within the recommended operating conditions and the input voltage should be kept within the specified range.
-
The gain and bandwidth of the LMP8601MA/NOPB can be configured by selecting the appropriate values for the input and feedback resistors. The gain can be set using the ratio of the feedback resistor to the input resistor, and the bandwidth can be set by selecting the appropriate value for the capacitor in the feedback network. The datasheet provides a gain-bandwidth product graph that can be used to determine the optimal component values.
-
The recommended input voltage range for the LMP8601MA/NOPB is 0.5V to 5.5V, and the recommended output voltage range is 0.5V to 5.5V. The device can operate with input voltages as low as 0.2V, but the output voltage swing will be reduced. It's recommended to operate the device within the specified input and output voltage ranges to ensure optimal performance.
