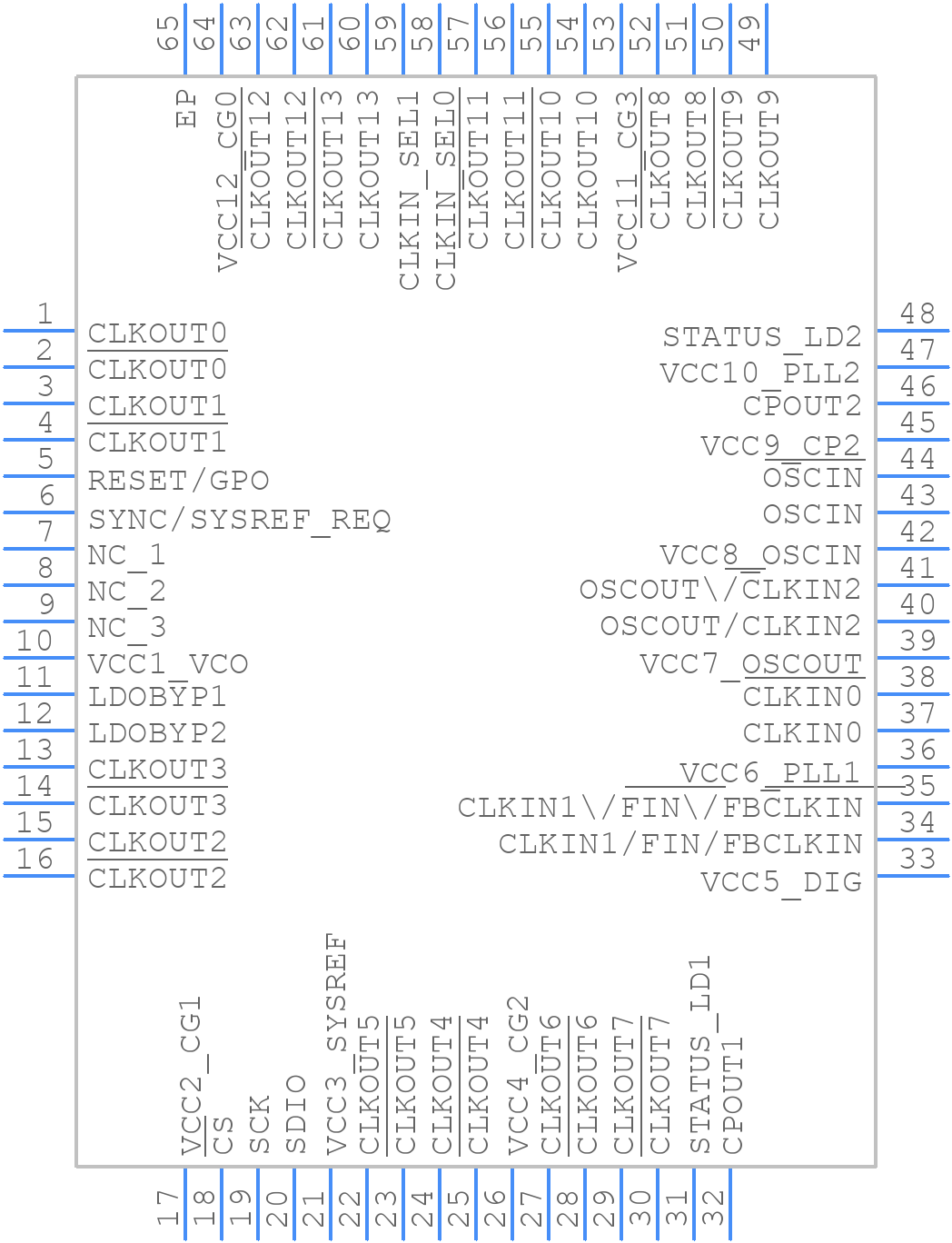

Part Symbol
-

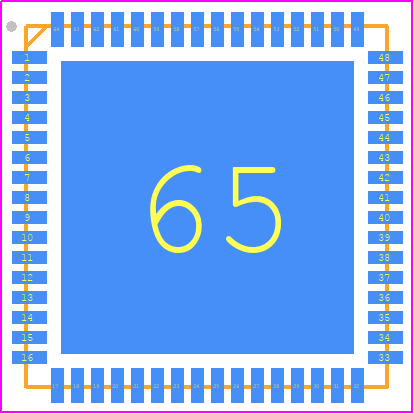

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMK04832NKDR by Texas Instruments
Results Overview of LMK04832NKDR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMK04832NKDR Information
LMK04832NKDR by Texas Instruments is a Clock Generator.
Clock Generators are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LMK04832NKDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LMK04832NKDR-ND
|
DigiKey | IC JITTER CLEANER 64WQFN Min Qty: 2000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$21.8970 | Buy Now |
|
DISTI #
595-LMK04832NKDR
|
Mouser Electronics | Clock Synthesizer / Jitter Cleaner Ultra-low-noise 3.2 -GHz 15-output JES A 595-LMK04832NKDT RoHS: Compliant | 0 |
|
$21.8900 | Order Now |
|
|
LCSC | 3.255GHz 14 WQFN-64-EP(9x9) Clock Generators PLLs Frequency Synthesizers ROHS | 52 |
|
$34.4291 / $36.2241 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1438 |
|
RFQ | |
|
|
Win Source Electronics | IC JITTER CLEANER 64WQFN / Jitter Cleaner IC 3.255GHz 64-WFQFN Exposed Pad | 9700 |
|
$21.8182 / $28.1818 | Buy Now |
Part Details for LMK04832NKDR
LMK04832NKDR CAD Models
LMK04832NKDR Part Data Attributes
|
|
LMK04832NKDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMK04832NKDR
Texas Instruments
Ultra-low-noise, 3.2-GHz, 15-output, JESD204B clock jitter cleaner with dual loop 64-WQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | WQFN-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-02-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Clock Frequency-Max | 3255 MHz | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Primary Clock/Crystal Frequency-Nom | 250 MHz | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 1120 mA | |
| Supply Voltage-Max | 3.45 V | |
| Supply Voltage-Min | 3.15 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm | |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, OTHER |
