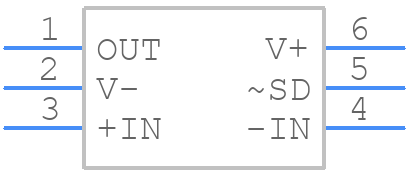

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMH6639MF by Texas Instruments
Results Overview of LMH6639MF by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LMH6639MF Information
LMH6639MF by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMH6639MF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85989608
|
Verical | Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 6-Pin SOT-23 T/R RoHS: Not Compliant Min Qty: 192 Package Multiple: 1 Date Code: 1501 | Americas - 24198 |
|
$1.6500 / $1.9625 | Buy Now |
|
DISTI #
85990642
|
Verical | Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 6-Pin SOT-23 T/R RoHS: Not Compliant Min Qty: 192 Package Multiple: 1 Date Code: 1201 | Americas - 17211 |
|
$1.6500 / $1.9625 | Buy Now |
|
|
Rochester Electronics | LMH6639 190MHz Rail-to-Rail Output Amplifier with Disable RoHS: Not Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 41485 |
|
$1.3200 / $1.6500 | Buy Now |
Part Details for LMH6639MF
LMH6639MF CAD Models
LMH6639MF Part Data Attributes
|
|
LMH6639MF
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMH6639MF
Texas Instruments
190MHz Rail-to-Rail Output Amplifier with Disable 6-SOT-23 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 3.25 µA | |
| Bandwidth (3dB)-Nom | 63 MHz | |
| Bias Current-Max (IIB) @25C | 2.6 µA | |
| Common-mode Reject Ratio-Min | 72 dB | |
| Common-mode Reject Ratio-Nom | 95 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.8 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e0 | |
| Length | 2.92 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.22 mm | |
| Slew Rate-Min | 120 V/us | |
| Slew Rate-Nom | 200 V/us | |
| Supply Current-Max | 5.8 mA | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 90000 | |
| Voltage Gain-Min | 5011.872 | |
| Wideband | YES | |
| Width | 1.6 mm |
Alternate Parts for LMH6639MF
This table gives cross-reference parts and alternative options found for LMH6639MF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMH6639MF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMH6639MF/NOPB | Texas Instruments | $0.7917 | 190MHz Rail-to-Rail Output Amplifier with Disable 6-SOT-23 -40 to 85 | LMH6639MF vs LMH6639MF/NOPB |
LMH6639MF Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LMH6639MF is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 57.1°C/W.
-
To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor to reduce the phase shift. Additionally, the datasheet provides guidance on selecting the optimal compensation components.
-
For optimal performance, it's recommended to follow a star-ground layout, keep the input and output traces short and symmetrical, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the op-amp's power pins.
-
The LMH6639MF is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, consider using a more temperature-resistant op-amp or taking additional thermal management measures.
-
To prevent electrostatic discharge (ESD) damage, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag. Additionally, consider adding ESD protection diodes or resistors in the circuit design.
