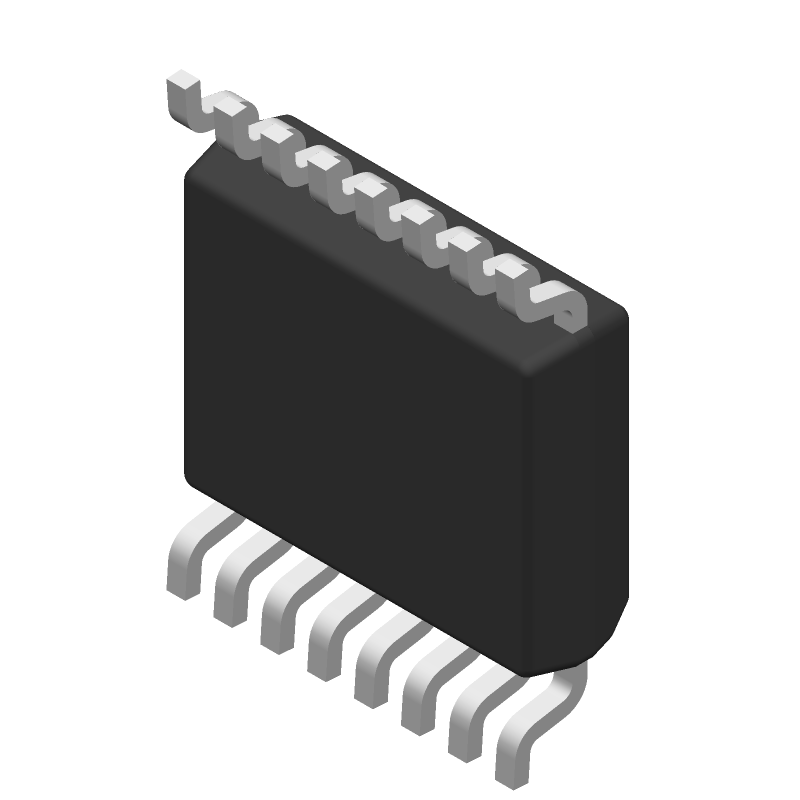

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMH6572MQ/NOPB by Texas Instruments
Results Overview of LMH6572MQ/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMH6572MQ/NOPB Information
LMH6572MQ/NOPB by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LMH6572MQ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
926-LMH6572MQ/NOPB
|
Mouser Electronics | Video Switch ICs 350MHz high-speed op amp with triple 2:1 A 926-LMH6572MQX/NOPB RoHS: Compliant | 103 |
|
$5.0000 / $10.3100 | Buy Now |
|
DISTI #
V99:2348_07287771
|
Arrow Electronics | Analog Multiplexer Triple 2:1 16-Pin SSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1836 | Americas - 3 |
|
$2.4690 / $4.7191 | Buy Now |
|
DISTI #
85992374
|
Verical | Analog Multiplexer Triple 2:1 16-Pin SSOP Tube RoHS: Compliant Min Qty: 63 Package Multiple: 1 Date Code: 1401 | Americas - 5885 |
|
$4.8250 / $6.0250 | Buy Now |
|
|
Rochester Electronics | LMH6572 Triple 2:1 Video Multiplexer RoHS: Compliant Status: Active Min Qty: 1 | 17095 |
|
$3.8600 / $4.8200 | Buy Now |
Part Details for LMH6572MQ/NOPB
LMH6572MQ/NOPB CAD Models
LMH6572MQ/NOPB Part Data Attributes
|
|
LMH6572MQ/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMH6572MQ/NOPB
Texas Instruments
350MHz high-speed op amp with triple 2:1 high-speed multiplexer 16-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | VIDEO MULTIPLEXER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -6 V | |
| Neg Supply Voltage-Min (Vsup) | -3 V | |
| Neg Supply Voltage-Nom (Vsup) | -3.3 V | |
| Normal Position | NC | |
| Number of Channels | 3 | |
| Number of Functions | 3 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | COMMON OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.727 mm | |
| Signal Current-Max | 0.02 A | |
| Supply Current-Max (Isup) | 28.5 mA | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 6 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for LMH6572MQ/NOPB
This table gives cross-reference parts and alternative options found for LMH6572MQ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMH6572MQ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMH6572MQ/NOPB | National Semiconductor Corporation | Check for Price | IC TRIPLE 2-CHANNEL, VIDEO MULTIPLEXER, PDSO16, SSOP-16, Multiplexer or Switch | LMH6572MQ/NOPB vs LMH6572MQ/NOPB |
| LMH6572MQX/NOPB | National Semiconductor Corporation | Check for Price | IC TRIPLE 2-CHANNEL, VIDEO MULTIPLEXER, PDSO16, SSOP-16, Multiplexer or Switch | LMH6572MQ/NOPB vs LMH6572MQX/NOPB |
LMH6572MQ/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the LMH6572MQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
-
To ensure stability, make sure to follow the recommended component values and PCB layout, and add a compensation capacitor (Ccomp) between pins 1 and 8. The value of Ccomp depends on the specific application and can be calculated using TI's stability calculator tool.
-
The maximum power dissipation of the LMH6572MQ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the actual operating conditions.
-
While the LMH6572MQ is primarily a high-speed amplifier, it can be used as a voltage regulator in certain applications. However, it's essential to ensure the device is operated within its specified voltage and current limits, and that the output is properly filtered to prevent oscillations.
-
To protect the LMH6572MQ from ESD and overvoltage, use ESD protection diodes and TVS diodes on the input and output pins. Additionally, ensure that the device is operated within its specified voltage and current limits, and that the PCB layout is designed to minimize ESD susceptibility.
