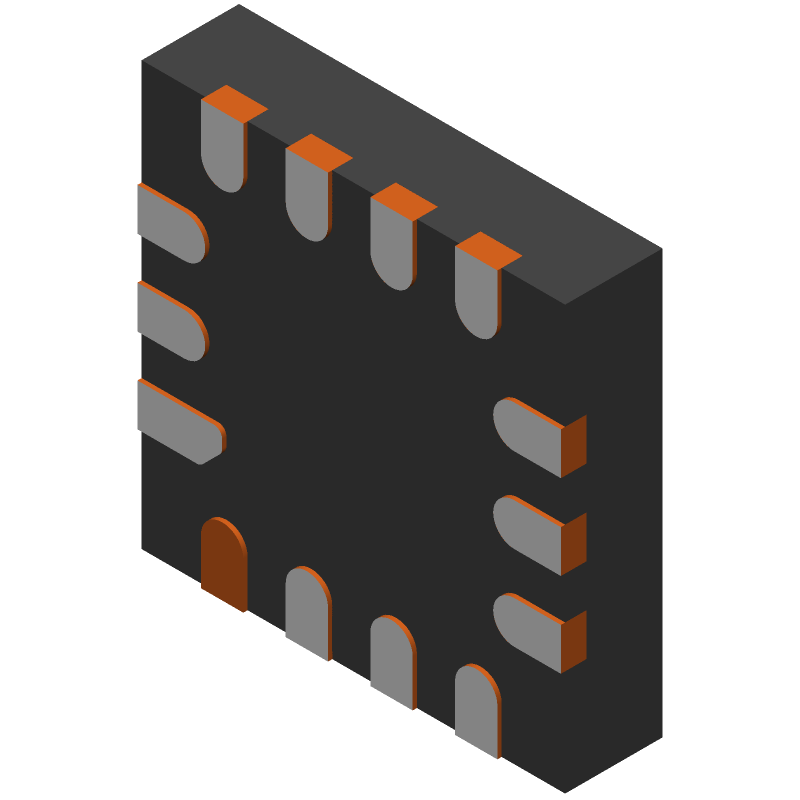

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMH3401IRMST by Texas Instruments
Results Overview of LMH3401IRMST by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LMH3401IRMST Information
LMH3401IRMST by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMH3401IRMST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-LMH3401IRMST
|
Mouser Electronics | Differential Amplifiers 7GHz Ultra-WB Fully Diff Amp A 595-LMH3401IRMSR RoHS: Compliant | 501 |
|
$12.7100 / $18.6500 | Buy Now |
|
|
Win Source Electronics | IC OPAMP DIFF 1 CIRCUIT 14UQFN / Differential Amplifier 1 Circuit Differential 14-UQFN (2.5x2.5) | 3040 |
|
$8.3077 / $10.7307 | Buy Now |
Part Details for LMH3401IRMST
LMH3401IRMST CAD Models
LMH3401IRMST Part Data Attributes
|
|
LMH3401IRMST
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMH3401IRMST
Texas Instruments
7-GHz, Ultra-Wideband, Fully Differential Amplifier 14-UQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | GREEN, UQFN-14PIN | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 10 µA | |
| Bandwidth (3dB)-Nom | 7000 MHz | |
| Bias Current-Max (IIB) @25C | 10 µA | |
| Common-mode Reject Ratio-Min | 72 dB | |
| Common-mode Reject Ratio-Nom | 72 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3200 µV | |
| JESD-30 Code | S-XQCC-N14 | |
| JESD-609 Code | e3 | |
| Length | 2.5 mm | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -2.75 V | |
| Neg Supply Voltage-Nom (Vsup) | -2.5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC14,.1SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | YES | |
| Seated Height-Max | 0.6 mm | |
| Slew Rate-Nom | 18000 V/us | |
| Supply Current-Max | 62 mA | |
| Supply Voltage Limit-Max | 2.75 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 8000000 | |
| Voltage Gain-Min | 5.888 | |
| Wideband | YES | |
| Width | 2.5 mm |
Alternate Parts for LMH3401IRMST
This table gives cross-reference parts and alternative options found for LMH3401IRMST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMH3401IRMST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMH3401IRMSR | Texas Instruments | $8.3586 | 7-GHz, Ultra-Wideband, Fully Differential Amplifier 14-UQFN -40 to 85 | LMH3401IRMST vs LMH3401IRMSR |
LMH3401IRMST Frequently Asked Questions (FAQ)
-
A good PCB layout for the LMH3401 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
-
The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF. The output capacitor should be a low-ESR capacitor with a value between 10uF to 100uF. The capacitor values and types should be chosen based on the specific application requirements and the desired output ripple voltage.
-
The LMH3401 can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V for optimal performance and to prevent overheating.
-
The output voltage of the LMH3401 can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage (1.21V for the LMH3401).
-
The LMH3401 can provide up to 1A of output current, but the maximum output current may be limited by the input voltage, output voltage, and the thermal performance of the device.
