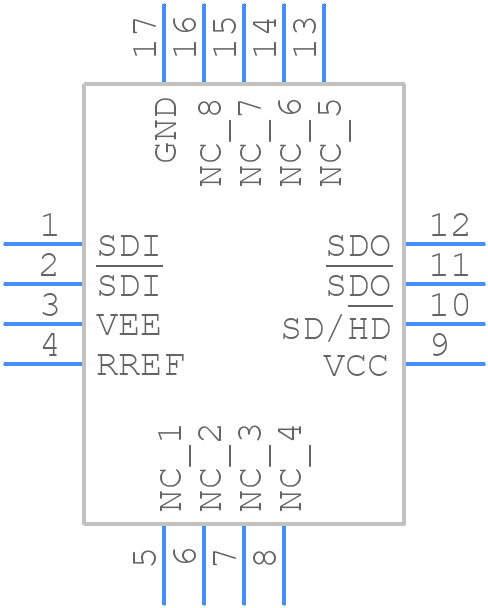

Part Symbol
-
Footprint
-

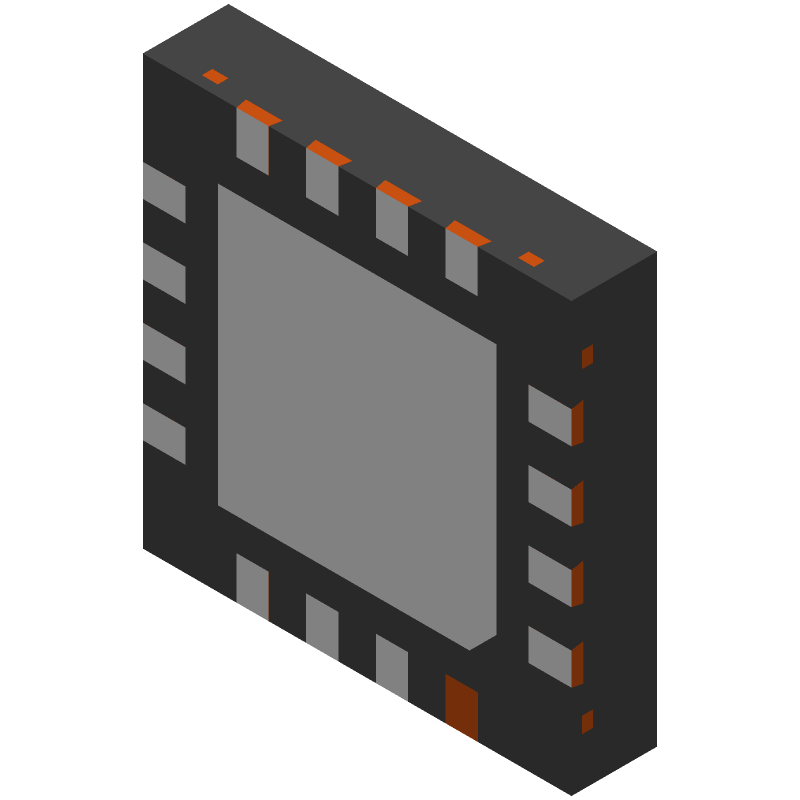

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMH0002SQE/NOPB by Texas Instruments
Results Overview of LMH0002SQE/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMH0002SQE/NOPB Information
LMH0002SQE/NOPB by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LMH0002SQE/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LMH0002SQE/NOPBCT-ND
|
DigiKey | IC VIDEO SERIAL DRIVER 16WQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
331 In Stock |
|
$4.7049 / $8.0500 | Buy Now |
|
DISTI #
926-LMH0002SQE/NOPB
|
Mouser Electronics | Video ICs SMPTE 292M / 259M Se rial Digital Cable D A 926-LMH0002SQ/NOPB RoHS: Compliant | 962 |
|
$4.4800 / $8.0500 | Buy Now |
|
|
Rochester Electronics | LMH0002 SMPTE 292M / 259M Serial Digital Cable Driver RoHS: Compliant Status: Active Min Qty: 1 | 3634 |
|
$3.6300 / $4.5400 | Buy Now |
|
|
Win Source Electronics | LMH0002 SMPTE 292M / 259M Serial Digital Cable Driver | 92 |
|
$5.0050 / $7.5074 | Buy Now |
Part Details for LMH0002SQE/NOPB
LMH0002SQE/NOPB CAD Models
LMH0002SQE/NOPB Part Data Attributes
|
|
LMH0002SQE/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMH0002SQE/NOPB
Texas Instruments
SMPTE 292M / 259M Serial Digital Cable Driver 16-WQFN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | WQFN-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL | |
| Interface IC Type | LINE DRIVER | |
| Interface Standard | GENERAL PURPOSE | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 0.75 V | |
| Output Characteristics | DIFFERENTIAL | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.16SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 49 mA | |
| Supply Voltage-Max | 3.465 V | |
| Supply Voltage-Min | 3.135 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.399 V | |
| Supply Voltage1-Min | 3.201 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
