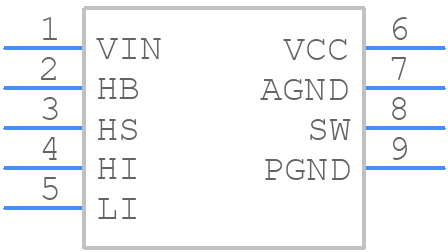

Part Symbol
-
Footprint
-

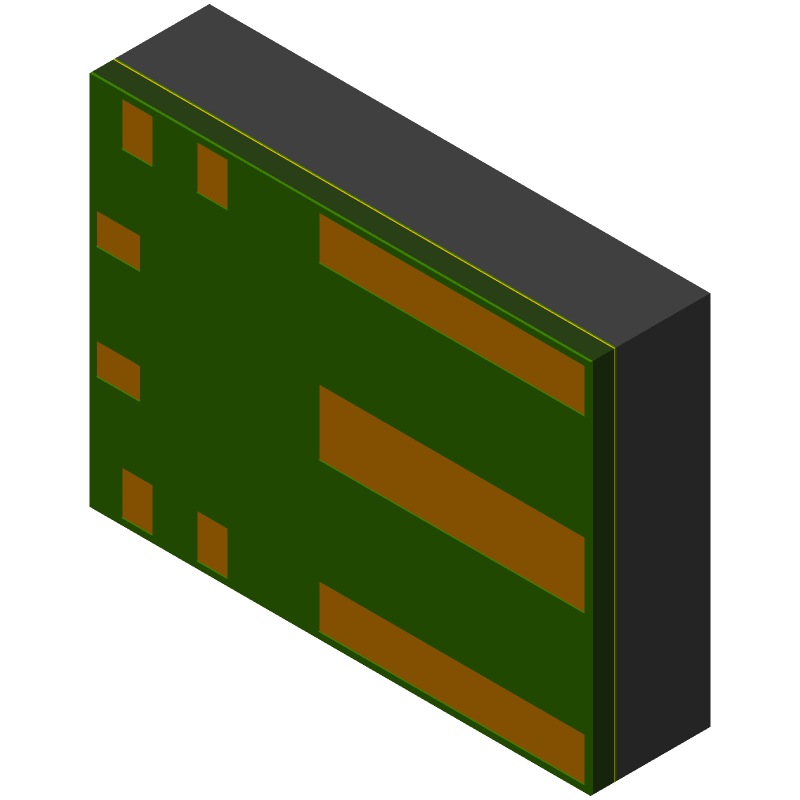

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMG5200MOFR by Texas Instruments
Results Overview of LMG5200MOFR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMG5200MOFR Information
LMG5200MOFR by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LMG5200MOFR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46617-1-ND
|
DigiKey | IC HALF BRIDGE DRIVER 10A 9QFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2140 In Stock |
|
$7.6503 / $12.6600 | Buy Now |
|
DISTI #
595-LMG5200MOFR
|
Mouser Electronics | Gate Drivers 80V GaN Half Bridge Power Stage 9-QFM -4 A 595-LMG5200MOFT RoHS: Compliant | 2365 |
|
$7.2300 / $12.6600 | Buy Now |
|
DISTI #
LMG5200MOFR
|
TME | IC: PMIC, half-bridge, GaN, 80V, 10A Min Qty: 1 | 0 |
|
$7.9000 / $11.4900 | RFQ |
|
|
LCSC | 4.75V5.25V QFM-9(6x8) Gate Drivers ROHS | 46 |
|
$7.0900 / $8.3655 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 20929 |
|
RFQ |
Part Details for LMG5200MOFR
LMG5200MOFR CAD Models
LMG5200MOFR Part Data Attributes
|
|
LMG5200MOFR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMG5200MOFR
Texas Instruments
80V GaN Half Bridge Power Stage 9-QFM -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | QFM-9 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-11-09 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-XQMA-B9 | |
| JESD-609 Code | e4 | |
| Length | 8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 80 V | |
| Output Voltage-Min | ||
| Package Body Material | UNSPECIFIED | |
| Package Code | BCC | |
| Package Equivalence Code | LCC9,.31X.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Terminal Form | BUTT | |
| Terminal Pitch | 1 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm |
Alternate Parts for LMG5200MOFR
This table gives cross-reference parts and alternative options found for LMG5200MOFR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMG5200MOFR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8325ARUZ-REEL | Analog Devices Inc | Check for Price | 5 V CATV Line Driver Fine Step Output Power Control | LMG5200MOFR vs AD8325ARUZ-REEL |
| AD8325ARU-REEL | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO28, TSSOP-28, Analog IC:Other | LMG5200MOFR vs AD8325ARU-REEL |
LMG5200MOFR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency components close to the IC, and use short, wide traces for the power lines.
-
Use a combination of series RLC and parallel RLC filters to minimize ringing. Ensure the output filter components are placed close to the IC, and use a common-mode choke to reduce EMI.
-
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, placed as close to the VIN pin as possible, to reduce input ripple and noise.
-
Use a soft-start circuit to limit the inrush current during start-up. Ensure the input voltage is stable and within the recommended range before enabling the converter.
-
The input voltage ripple should be limited to less than 10% of the nominal input voltage to ensure reliable operation and prevent oscillations.
