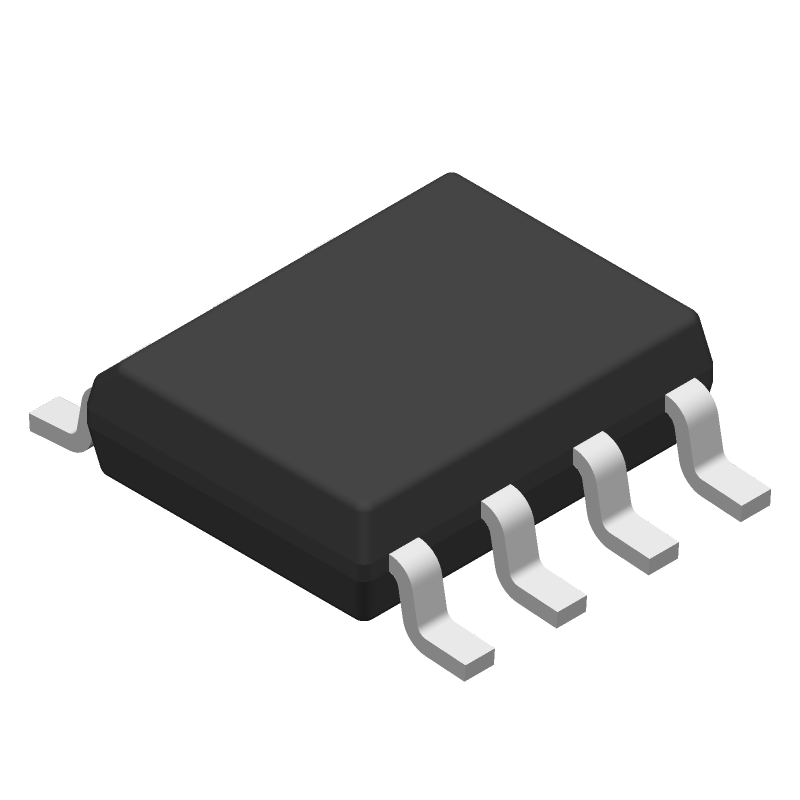

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMC6482IMX/NOPB by Texas Instruments
Results Overview of LMC6482IMX/NOPB by Texas Instruments
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
LMC6482IMX/NOPB Information
LMC6482IMX/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMC6482IMX/NOPB | Texas Instruments | Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Operational Amplifier 8-SOIC -40 to 85 | |
| DS96174CN/NOPB | Rochester Electronics LLC | DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16 | |
| LM611IM/NOPB | Rochester Electronics LLC | LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar |
Price & Stock for LMC6482IMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH2799
|
Newark | Op-Amp, Dual, 1.5Mhz, 1.3V/Us, Soic-8, No. Of Amplifiers:2 Amplifier, Bandwidth:1.5Mhz, Slew Rate:1.3V/Μs, Supply Voltage Range:3V To 15.5V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Texas Instruments LMC6482IMX/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2851 |
|
$0.7250 / $1.4200 | Buy Now |
|
DISTI #
LMC6482IMX/NOPBCT-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
22284 In Stock |
|
$0.6661 / $1.4200 | Buy Now |
|
DISTI #
926-LMC6482IMX/NOPB
|
Mouser Electronics | Operational Amplifiers - Op Amps CMOS DUAL RRIO OP AM P A 926-LMC6482IM/NOPB RoHS: Compliant | 27432 |
|
$0.6480 / $1.4200 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 243 |
|
$0.6000 / $1.8750 | Buy Now |
|
|
Bristol Electronics | 23 |
|
RFQ | ||
|
|
Quest Components | DUAL OP-AMP, 3000 UV OFFSET-MAX, 1.5 MHZ BAND WIDTH, PDSO8 | 194 |
|
$0.7500 / $2.5000 | Buy Now |
|
DISTI #
LMC6482IMX/NOPB
|
TME | IC: operational amplifier, 1.5MHz, 3÷15.5V, Ch: 2, SO8, reel,tape Min Qty: 1 | 0 |
|
$0.8700 / $1.5000 | RFQ |
|
DISTI #
SMC-LMC6482IMX/NOPB
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 5058 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 4013 |
|
RFQ | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 244 |
|
RFQ |
Part Details for LMC6482IMX/NOPB
LMC6482IMX/NOPB CAD Models
LMC6482IMX/NOPB Part Data Attributes
|
|
LMC6482IMX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMC6482IMX/NOPB
Texas Instruments
Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Dual Operational Amplifier 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.000004 µA | |
| Bias Current-Max (IIB) @25C | 0.000004 µA | |
| Common-mode Reject Ratio-Min | 70 dB | |
| Common-mode Reject Ratio-Nom | 82 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.000002 µA | |
| Input Offset Voltage-Max | 750 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 0.63 V/us | |
| Slew Rate-Nom | 1.3 V/us | |
| Supply Current-Max | 1.4 mA | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1500 | |
| Voltage Gain-Min | 10000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for LMC6482IMX/NOPB
This table gives cross-reference parts and alternative options found for LMC6482IMX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMC6482IMX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMC6482IMX | Texas Instruments | Check for Price | Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Dual Operational Amplifier 8-SOIC -40 to 85 | LMC6482IMX/NOPB vs LMC6482IMX |
LMC6482IMX/NOPB Frequently Asked Questions (FAQ)
-
The maximum power supply voltage for the LMC6482IMX/NOPB is ±18V or 36V total supply voltage.
-
Yes, the LMC6482IMX/NOPB has a bandwidth of 3.5 MHz and a slew rate of 2.5 V/μs, making it suitable for high-frequency applications.
-
The input impedance of the LMC6482IMX/NOPB is typically 10^12 Ω, making it suitable for high-impedance applications.
-
Yes, the LMC6482IMX/NOPB can operate from a single power supply, but it requires a voltage divider or other level-shifting circuit to bias the input signals.
-
No, the LMC6482IMX/NOPB is not radiation-hardened and is not suitable for use in high-radiation environments.
