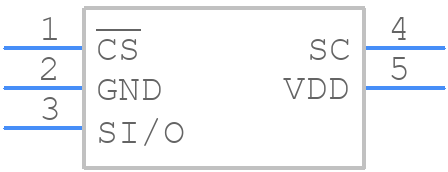

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM95071CIMFX/NOPB by Texas Instruments
Results Overview of LM95071CIMFX/NOPB by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM95071CIMFX/NOPB Information
LM95071CIMFX/NOPB by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LM95071CIMFX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH3647
|
Newark | Temperature Sensor, 2Deg C, Sot-23-5, Ic Output Type:Digital, Sensing Accuracy Range:± 2°C, Sensing Temperature Min:-40°C, Sensing Temperature Max:150°C, Sensor Case Style:Sot-23, No. Of Pins:5Pins, Supply Voltage Min:2.4V, Supply Rohs Compliant: Yes |Texas Instruments LM95071CIMFX/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1577 |
|
$1.6000 / $2.0700 | Buy Now |
|
DISTI #
296-35182-1-ND
|
DigiKey | SENSOR DIGITAL -40C-150C SOT23-5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
2052 In Stock |
|
$0.8693 / $1.5300 | Buy Now |
|
DISTI #
926-LM95071CIMFXNOPB
|
Mouser Electronics | Board Mount Temperature Sensors +/-1C Temperature Se nsor with SPI Interf A 926-LM95071CIMF/NOPB RoHS: Compliant | 2755 |
|
$0.9200 / $1.4700 | Buy Now |
|
DISTI #
V72:2272_07283092
|
Arrow Electronics | Temperature Sensor Digital Serial (3-Wire, SPI) 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2433 Container: Cut Strips | Americas - 2915 |
|
$0.8814 / $1.1602 | Buy Now |
|
DISTI #
LM95071CIMFX/NOPB
|
TME | IC: temperature sensor, -40÷150°C, SOT23-5, SMD, Interface: SPI Min Qty: 1 | 0 |
|
$1.2400 / $2.1100 | RFQ |
|
DISTI #
SMC-LM95071CIMFX/NOPB
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 2382 |
|
RFQ |
Part Details for LM95071CIMFX/NOPB
LM95071CIMFX/NOPB CAD Models
LM95071CIMFX/NOPB Part Data Attributes
|
|
LM95071CIMFX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM95071CIMFX/NOPB
Texas Instruments
±1°C Temperature Sensor with SPI Interface 5-SOT-23 -40 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 1 Cel | |
| Body Breadth | 1.6 mm | |
| Body Height | 1.02 mm | |
| Body Length or Diameter | 2.92 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 14 | |
| Number of Terminals | 5 | |
| Operating Current-Max | 0.52 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Interface Type | 3-WIRE INTERFACE | |
| Output Voltage-Max | 2.25 V | |
| Output Voltage-Min | 0.4 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.4 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
