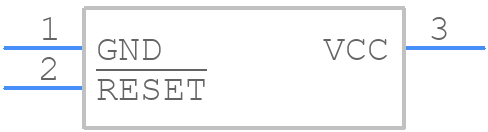

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM809M3X-4.63/NOPB by Texas Instruments
Results Overview of LM809M3X-4.63/NOPB by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
LM809M3X-4.63/NOPB Information
LM809M3X-4.63/NOPB by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DS96174CN/NOPB | Rochester Electronics LLC | DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16 | |
| LM611IM/NOPB | Rochester Electronics LLC | LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar | |
| LM809M3X-2.93/NOPB | Texas Instruments | 3-pin voltage supervisor (reset IC) with push-pull reset for supply monitoring 3-SOT-23 -40 to 105 |
Price & Stock for LM809M3X-4.63/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH3635
|
Newark | Mp Reset Circuit, 240Ms, 4.63V, Sot-23-3, Threshold Voltage:4.63V, No. Of Supervisors/Monitors:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V, Reset Type:Active-Low, Push-Pull, Digital Ic Case:Sot-23, No. Of Pins:3Pins, Rohs Compliant: Yes |Texas Instruments LM809M3X-4.63/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2733 |
|
$0.6590 / $0.8520 | Buy Now |
|
DISTI #
LM809M3X-4.63/NOPBCT-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7420 In Stock |
|
$0.3631 / $0.8300 | Buy Now |
|
DISTI #
926-LM809M3X463NOPB
|
Mouser Electronics | Supervisory Circuits 3-pin voltage superv isor (reset IC) with A 926-809M3-4.63/NOPB RoHS: Compliant | 3160 |
|
$0.3300 / $0.8300 | Buy Now |
|
DISTI #
LM809M3X-4.63/NOPB
|
TME | IC: supervisor circuit, power on reset monitor (PoR), SOT23-3 Min Qty: 1 | 20 |
|
$0.4040 / $0.7960 | Buy Now |
|
|
LCSC | 240ms Active Low 1V5.5V 1 SOT-23-3 Supervisor and Reset ICs ROHS | 10 |
|
$0.6744 / $0.9294 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 22958 |
|
RFQ | |
|
|
Win Source Electronics | IC CIRC RESET MICROPWR SOT23-3 | 2370 |
|
$0.3850 / $0.4973 | Buy Now |
Part Details for LM809M3X-4.63/NOPB
LM809M3X-4.63/NOPB CAD Models
LM809M3X-4.63/NOPB Part Data Attributes
|
|
LM809M3X-4.63/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM809M3X-4.63/NOPB
Texas Instruments
3-pin voltage supervisor (reset IC) with active-low, push-pull reset for supply monitoring 3-SOT-23 -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.041 mm | |
| Supply Current-Max (Isup) | 0.1 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.63V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 mm |
