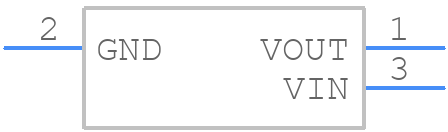

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM78L05ACZ/LFT1 by Texas Instruments
Results Overview of LM78L05ACZ/LFT1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM78L05ACZ/LFT1 Information
LM78L05ACZ/LFT1 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM78L05ACZ/LFT1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46607-1-ND
|
DigiKey | IC REG LINEAR 5V 100MA TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
7412 In Stock |
|
$0.2062 / $0.5000 | Buy Now |
|
DISTI #
926-LM78L05ACZ/LFT1
|
Mouser Electronics | Linear Voltage Regulators 100-mA 30-V linear voltage regulator 3 RoHS: Compliant | 36 |
|
$0.1980 / $0.5000 | Buy Now |
|
|
Cytech Systems Limited | IC REG LINEAR 5V 100MA TO92-3 | 6000 |
|
RFQ | |
|
|
LCSC | 62dB(120Hz) 100mA Fixed 5V Positive electrode 35V TO-92-3 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 495 |
|
$0.1978 / $0.5247 | Buy Now |
|
|
Vyrian | Regulators | 7289 |
|
RFQ |
Part Details for LM78L05ACZ/LFT1
LM78L05ACZ/LFT1 CAD Models
LM78L05ACZ/LFT1 Part Data Attributes
|
|
LM78L05ACZ/LFT1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM78L05ACZ/LFT1
Texas Instruments
100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-92 | |
| Package Description | TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.6 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | O-PBCY-W3 | |
| JESD-609 Code | e3 | |
| Length | 4.3 mm | |
| Line Regulation-Max | 0.075% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Packing Method | TR | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 5.34 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | WIRE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Voltage Tolerance-Max | 5% | |
| Width | 4.3 mm |
Alternate Parts for LM78L05ACZ/LFT1
This table gives cross-reference parts and alternative options found for LM78L05ACZ/LFT1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM78L05ACZ/LFT1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC78L05ABDR2G | onsemi | $0.1268 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL | LM78L05ACZ/LFT1 vs MC78L05ABDR2G |
| LM78L05ACZ/LFT4 | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125 | LM78L05ACZ/LFT1 vs LM78L05ACZ/LFT4 |
| LM78L05ACZ/LFT7 | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125 | LM78L05ACZ/LFT1 vs LM78L05ACZ/LFT7 |
| MC78L05ABDG | onsemi | Check for Price | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 98-TUBE | LM78L05ACZ/LFT1 vs MC78L05ABDG |
LM78L05ACZ/LFT1 Frequently Asked Questions (FAQ)
-
The maximum input voltage for the LM78L05ACZ/LFT1 is 35V, but it's recommended to keep it below 30V for reliable operation.
-
The LM78L05ACZ/LFT1 can supply up to 100mA of output current, but it's recommended to keep it below 80mA for reliable operation.
-
The dropout voltage of the LM78L05ACZ/LFT1 is around 2V, which means the input voltage must be at least 2V higher than the output voltage for proper regulation.
-
Yes, the LM78L05ACZ/LFT1 has built-in short-circuit protection, which limits the output current to prevent damage in case of a short circuit.
-
The LM78L05ACZ/LFT1 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures.
