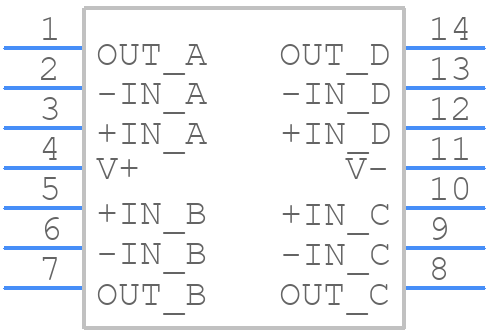

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM6134AIM by Texas Instruments
Results Overview of LM6134AIM by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Healthcare
Entertainment and Gaming
LM6134AIM Information
LM6134AIM by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM6134AIM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-35136-5-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
68 In Stock |
|
$5.2609 / $7.7500 | Buy Now |
|
|
Quest Components | IC,OP-AMP,QUAD,BIPOLAR,SOP,14PIN,PLASTIC | 79 |
|
$3.2190 / $5.2200 | Buy Now |
|
|
Vyrian | Amplifiers | 135 |
|
RFQ | |
|
|
Win Source Electronics | Op Amp Quad Low Power Amplifier R-R I/O 24V 14-Pin SOIC Tube / IC OPAMP GP 11MHZ RRO 14SOIC | 10000 |
|
$1.9801 / $2.5576 | Buy Now |
Part Details for LM6134AIM
LM6134AIM CAD Models
LM6134AIM Part Data Attributes
|
|
LM6134AIM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM6134AIM
Texas Instruments
Quad, 24-V, 10-MHz, low-power operational amplifier 14-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, MS-012AB, SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.3 µA | |
| Bias Current-Max (IIB) @25C | 0.14 µA | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 107 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.03 µA | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e0 | |
| Length | 8.65 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 7 V/us | |
| Slew Rate-Nom | 14 V/us | |
| Supply Current-Max | 1.8 mA | |
| Supply Voltage Limit-Max | 35 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 10000 | |
| Voltage Gain-Min | 8000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for LM6134AIM
This table gives cross-reference parts and alternative options found for LM6134AIM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM6134AIM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM6134AIMX | Texas Instruments | Check for Price | Quad Low Power 10 MHz Rail-to-Rail I/O Operational Amplifier 14-SOIC -40 to 85 | LM6134AIM vs LM6134AIMX |
| LM6134AIM/NOPB | Texas Instruments | Check for Price | Quad, 24-V, 10-MHz, low-power operational amplifier 14-SOIC -40 to 85 | LM6134AIM vs LM6134AIM/NOPB |
LM6134AIM Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM6134AIM is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W when the device is operated at 25°C ambient temperature.
-
To ensure stability in the LM6134AIM, it is recommended to use a compensation capacitor (Cc) between the COMP and VOUT pins. The value of Cc depends on the output capacitor (Cout) and the desired phase margin. A general guideline is to use a Cc value between 10pF to 100pF.
-
The recommended input capacitor value for the LM6134AIM is dependent on the input voltage and the desired ripple rejection. A general guideline is to use an input capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage.
-
The LM6134AIM is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and ensure proper thermal management to ensure reliable operation in high-temperature environments.
-
To minimize noise and EMI in the LM6134AIM, it is recommended to follow good PCB layout practices, such as separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from noise sources. Additionally, using a shielded inductor and a common-mode choke can help reduce EMI.
